ID-NET™ GATEWAY
The CBX800 Gateway can be used to integrate a DS6300 reader into a high speed ID-
NET™ network consisting of different scanners not provided with a Lonworks interface.
In this case the DS6300 uses its main RS232/RS485 interface to communicate with the
CBX800.

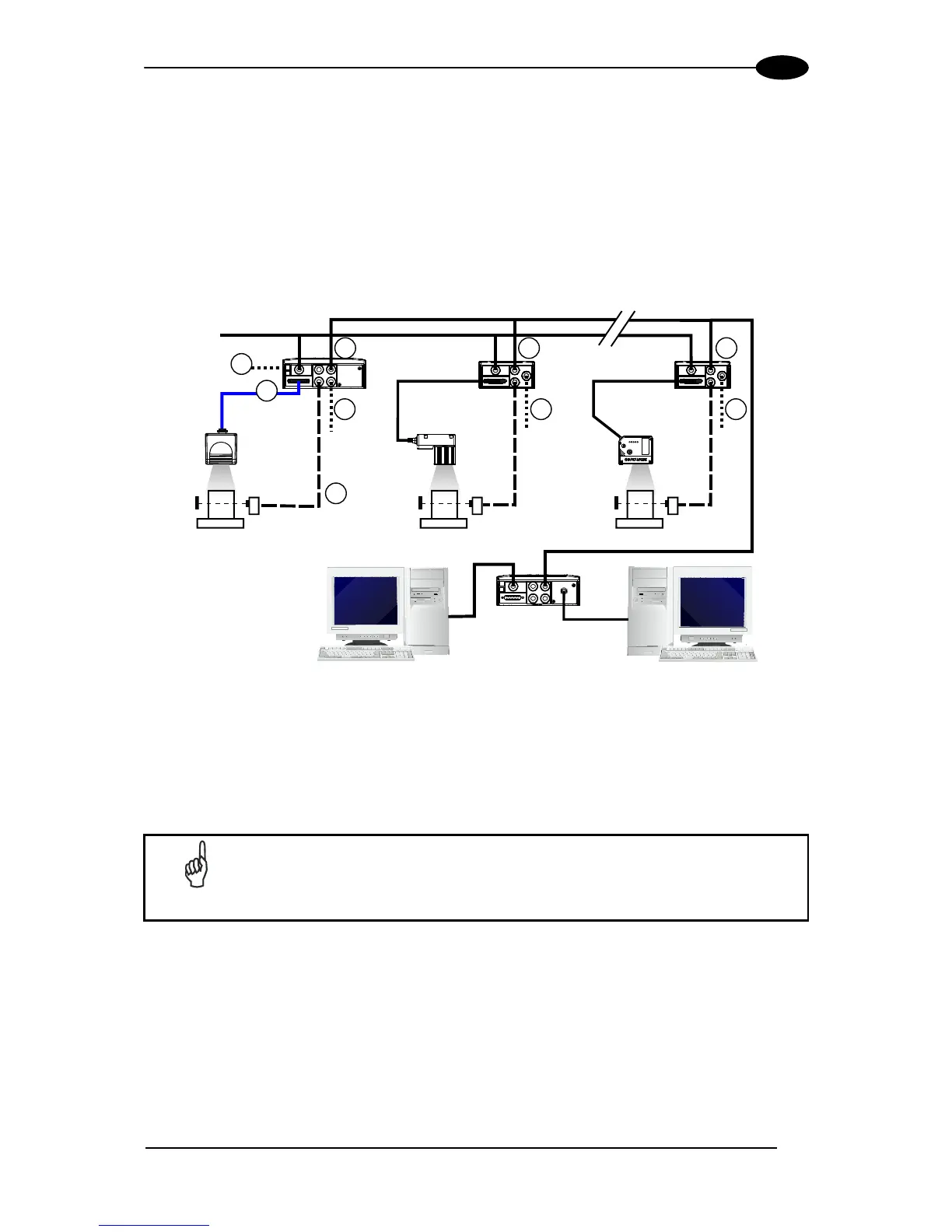

Figure 117 – DS6300 Slave/CBX800 Gateway in an ID-NET™ High Speed Network
NOTE
For 6/K family scanners having software version 6.80 or later, an alternative
fixed speed (57600 baud) ID-NET™ layout can be made without the use of
CBX800. See the ID-NET™ Application Note for details.
ID-NET™ Slave Nodes
CBX800 Source Interface (CAB-Sxx)
CBX800 ID-NET™ Interface
Reader ID-NET™ Interface
External Trigger (for On-Line Mode)
Host Aux for CBX800 Configuration
Source Aux for Source Reader Configuration
Reader Auxiliary Interface for Reader Configuration
Ethernet TCP/IP (WebSentinel)
1
CBX800 CBX100 CBX100
2 3
Power
3
4
5
6
DS4800
DS6300
7
Matrix 400™
7
Serial (Host)
Host 2
Host 1
ID-NET™
SC4000
ID-NET™
Master
