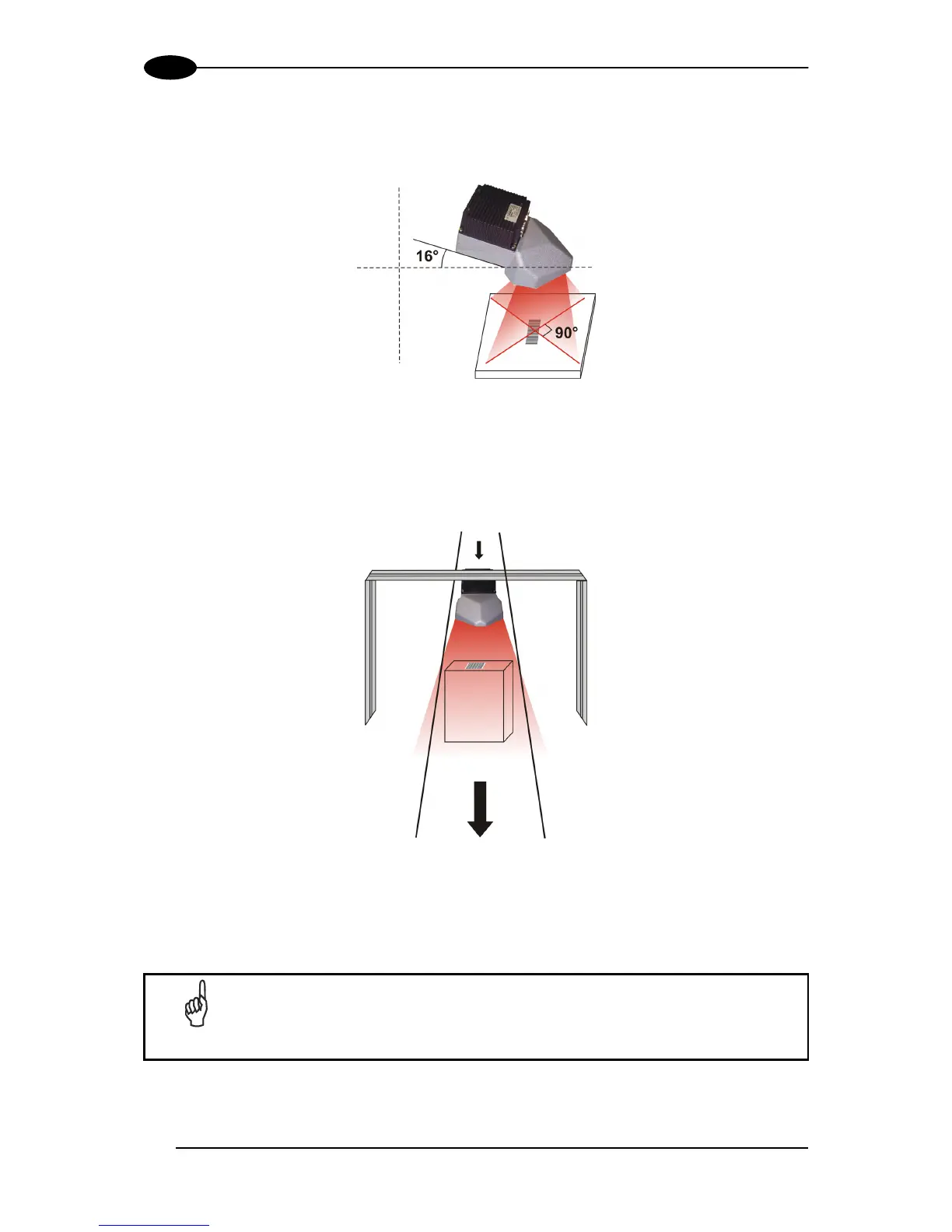

6. Mount the scanner at an angle of 16°, as indicated in figure below, in order to obtain an
angle of 90° between the two scan lines. This guarantees an omni directional reading of
the barcode, if the code label satisfies the ACR™ 4 conditions (see par. 9.3.1).
Figure 16 – Omni-Directional Reading Position
The DS6300 with the GFX-60 can be mounted over a conveyor in different positions.
The following picture illustrates the suggested position offering the best compromise between
width and height of the reading area:
Figure 17 – Central Reading Position
The Central Reading position allows maximizing the reading distance (height) when the width
of the reading area is not critical (narrow conveyors). In this case a complete reading on the
central part of the conveyor plane is guaranteed.
NOTE
To better exploit the scanner and to optimize its reading performance when
the GFX-60 is mounted, it is recommended to set the focus adjustment to
obtain the desired reading area coverage.
For details about the reading performance of the DS6300 with GFX-60 see par. 9.4.3.
