Datalogic DS6300 User Manual

TYPICAL LAYOUTS
63
7
NOTE
To interface DS6300 scanners to other Host types (Fieldbus and non-
Fieldbus), use the CBX800 Gateway with Host Interface Modules. The
Master scanner in this case is a standard Master/Slave Serial model which
requires the BT-6000 terminator.
* P.S. (Presence Sensor) connected to Input 1 (External Trigger/PS) input.
** CBX800 jumper set to accept scanner power.
*** Encoder connected to Input 2 (Encoder) input.

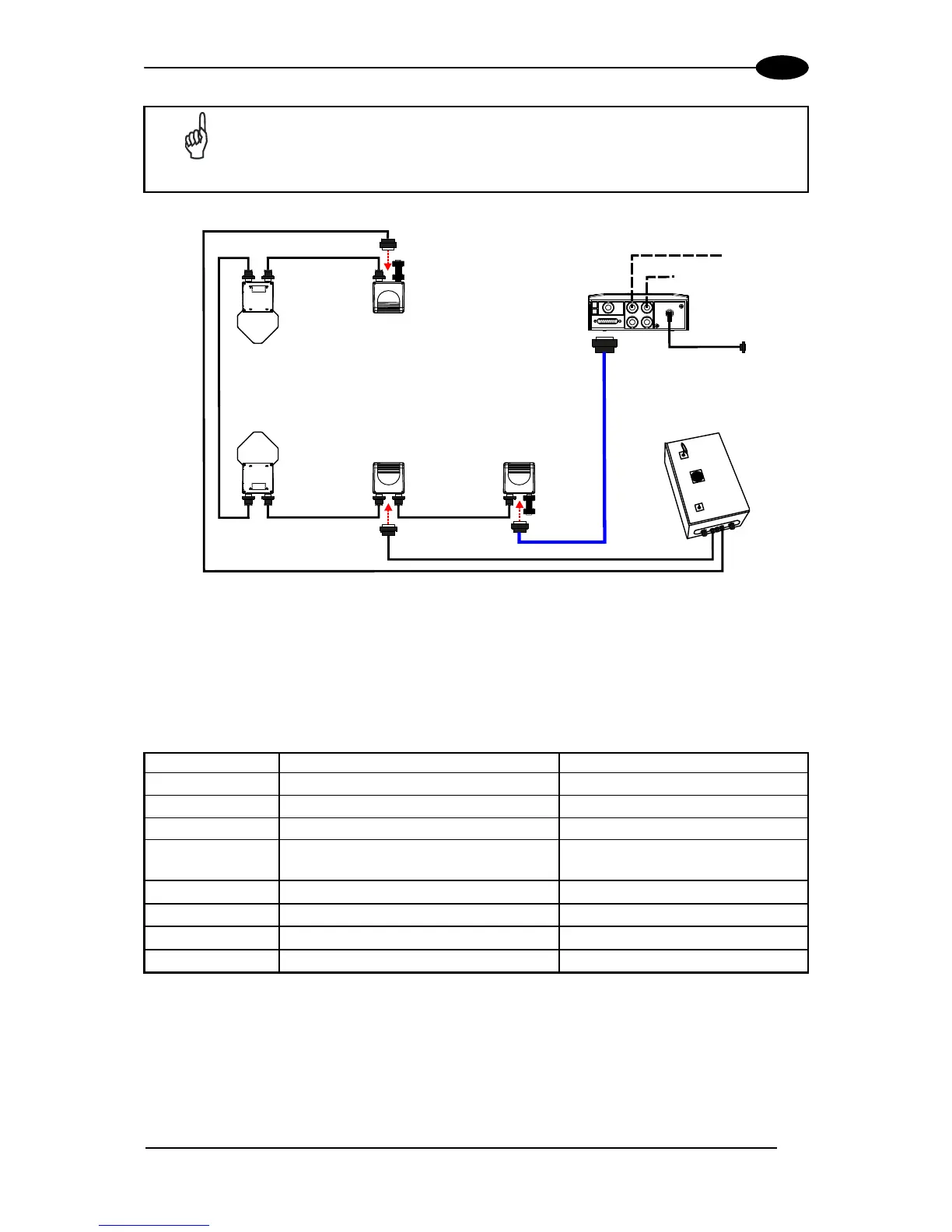

Figure 87 – CBX800 Gateway Fieldbus Synchronized Network
The following Host Interface Module accessories are available for the CBX800 Gateway:
NAME
Description Part Number
BM200/210 Ethernet TCP/IP Module STD/IP65 93ACC1851, 93ACC1852
BM300/310 Profibus Module STD/IP65 93ACC1810, 93ACC1811
BM400 DeviceNet Module IP65 93ACC1814
BM500/510/520 Ethernet/IP Module STD/IP65/IP54 93ACC1812, 93ACC1813,
93ACC1840
BM600 CANopen Module STD 93ACC1815
BM700/710 Profinet Module STD/IP65 93ACC1816, 93ACC1886
BM1100 CC-Link Module STD 93ACC1845
BM1200/1210 Modbus TCP STD/IP65 93ACC1848, 93ACC1849
CBX800**
with Host
Interface
Module
Fieldbus
Network
CAB-610x
Remote Host
Maste
r
Slave 1Slave 2
Slave 3
PWR-240
P.S.*
CAB-610x
CAB-Sxx
CAB-610x
CAB-610x
Slave 4
CAB-63xx
CAB-63xx
I/O, AUX, Encoder***
BT-6000
BT-6000
