Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-7

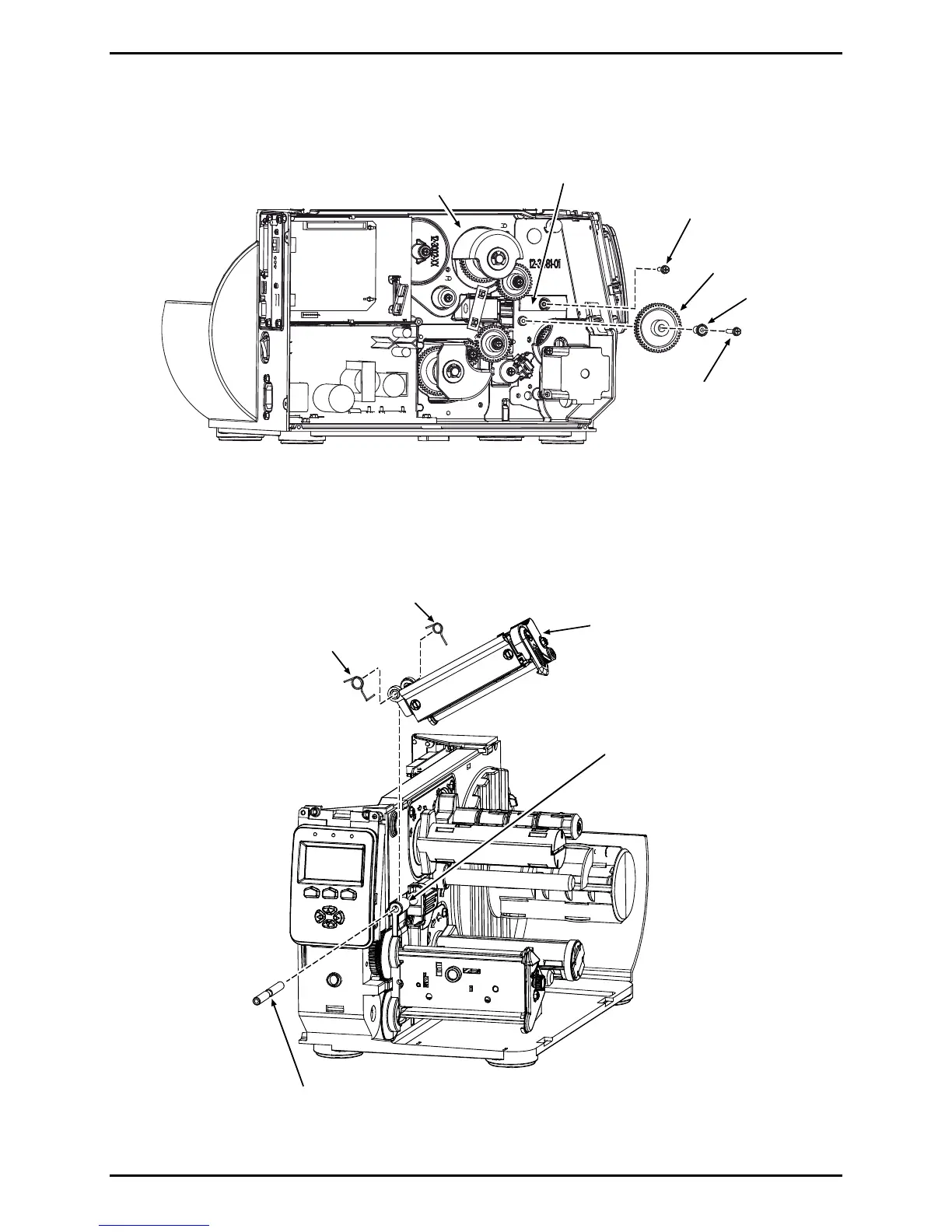

4. Remove the Pivot Pin Screw from the Platen Block Hinge.
Idler
Post
Drive
Gear
Pivot
Pin Screw
Centerplate
Drive
Gear Screw
Platen
Block Hinge
5. Extract the Pivot Pin from the Platen Block Hinge and Printhead Assembly. Then, remove
the Printhead Assembly (the Front Lift Spring and the Rear Lift Spring will follow) and
route the printhead cables out of the Guard; see Section 4.3.
Printhead
Assembly
Front
Lift Spring
Platen
Block Hinge
Rear
Lift Spring
Pivot Pin

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
