Datamax M-Class Mark II Maintenance Manual

Removal and Replacement
4-10

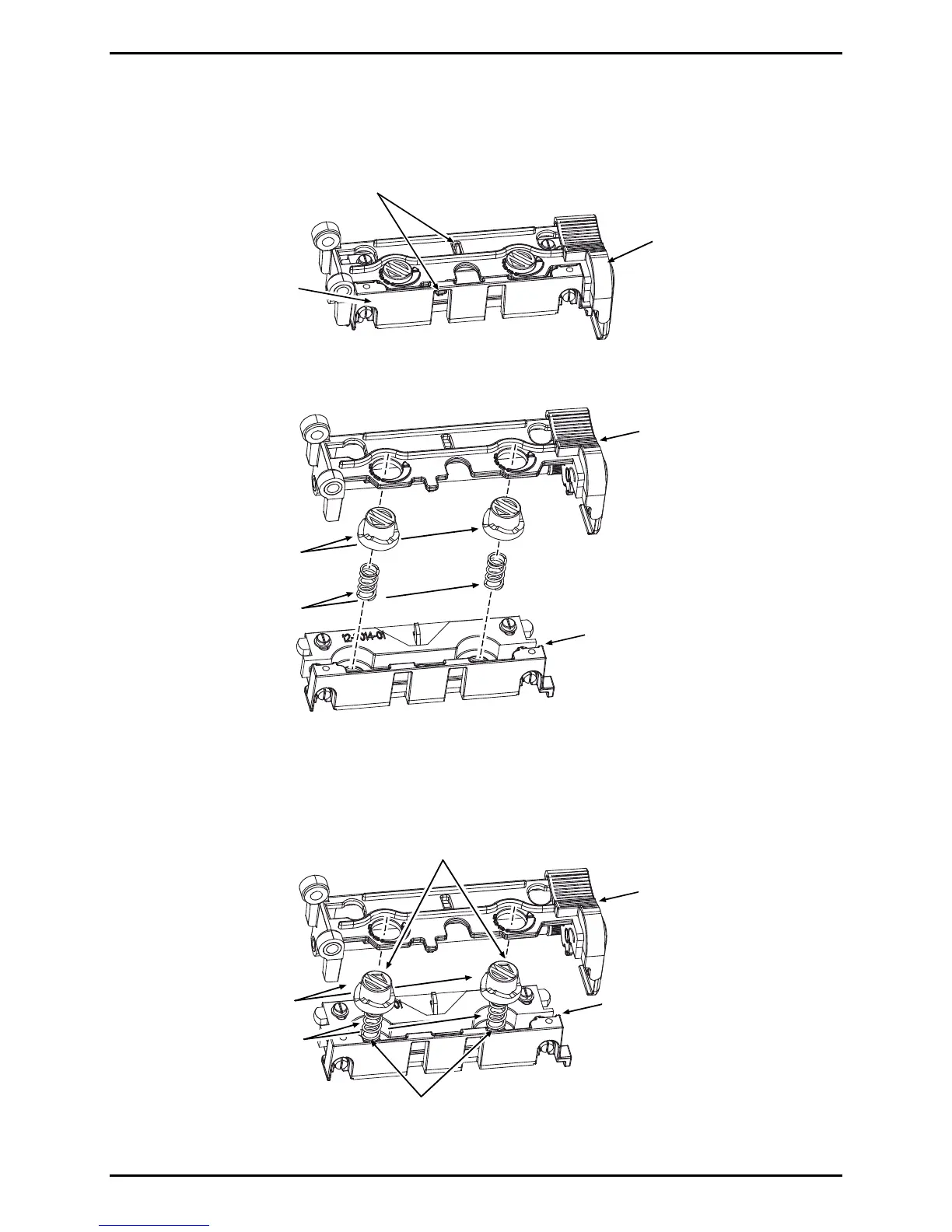

4. Slide the Bottom Carriage backward until the Catches are free and then separate the
Bottom Carriage from the Top Carriage.
Catches
Top
Carriage
Bottom
Carriage
5. Remove the Cams and Springs from the Top and Bottom Carriages.
Cams
Springs
Top
Carriage
Bottom
Carriage
Installation:
1. Place the Springs into the Sockets in the Top Carriage and then place the Cams, with
the Indicators oriented for least pressure (see drawing), onto the Springs.
Top
Carriage
Sockets
Springs
Cams
Bottom
Carriage
Indicators

Datamax M-Class Mark II Specifications

General

Media Sensor	Adjustable reflective and transmissive sensors
Print Method	Thermal Transfer
Print Resolution	203 dpi
Memory	8 MB Flash, 16 MB SDRAM
Interface Options	USB, Serial, Ethernet, Parallel
Media Type	Roll-fed, die-cut, continuous, fan-fold, tags, ticket stock
Media Width	1.0 in (25.4 mm) to 4.65 in (118 mm)
Media Thickness	0.0025 in (0.0635 mm) to 0.010 in (0.254 mm)
Media Roll Diameter	8 inches (203 mm) max
Ribbon Width	1 to 4.33 inches (25.4 to 110 mm)
Ribbon Length	1968 ft (600 m)
Ribbon Core	1 inch (25.4 mm)
Label Width Range	1.0 in (25.4 mm) to 4.65 in (118 mm)
Label Length Range	0.25 to 39 inches (6.35 to 991 mm)
