Removal and Replacement
4-21
Platen
Block
Screw
Inner
Bearing Plate

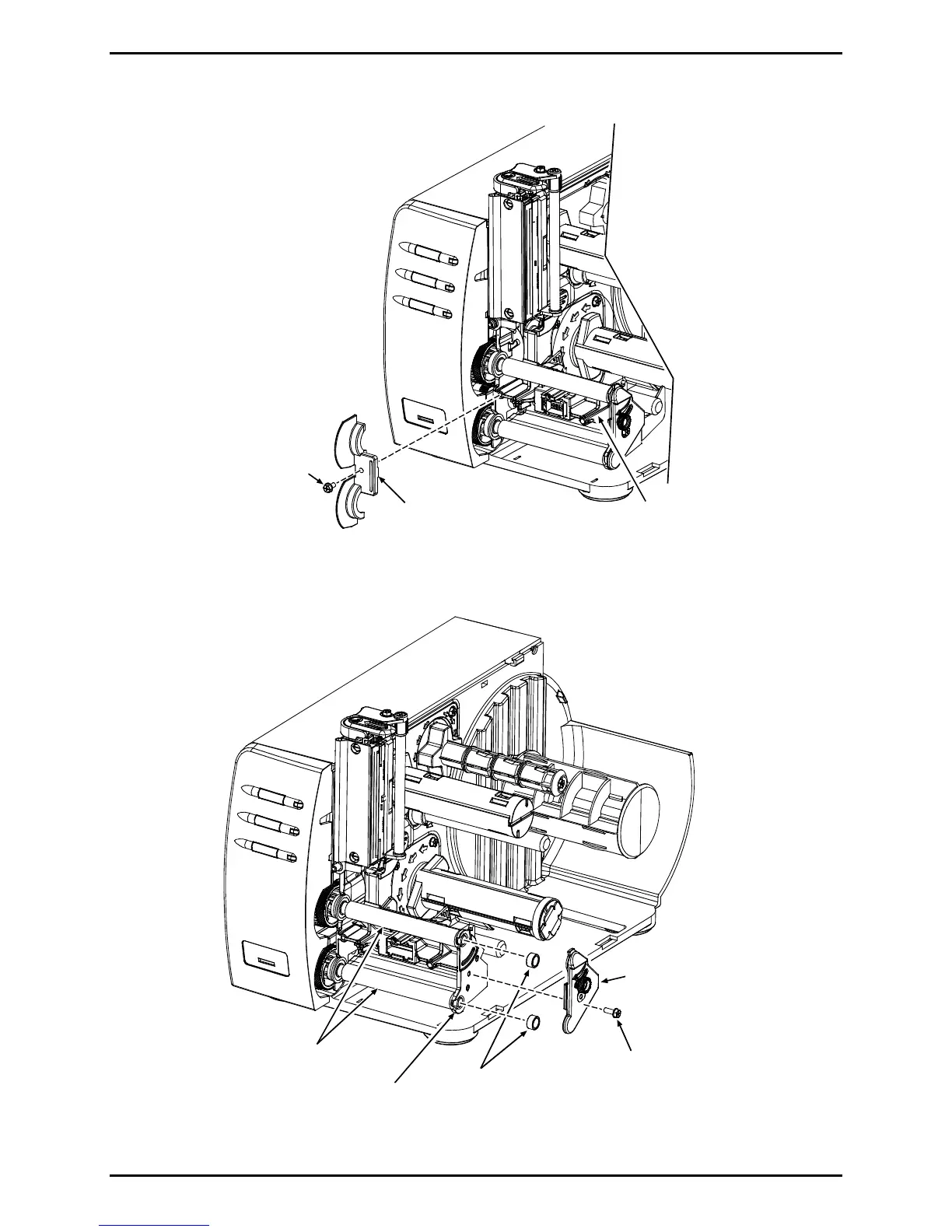

4. Remove the Screw that secures the Outer Bearing Plate then remove the Outer Bearing
Plate and slide the Bushing(s) out of the Platen Block.
Platen
Block
Outer
Bearing Plate
Screw
Bushings
Platen &
Assist Rollers
