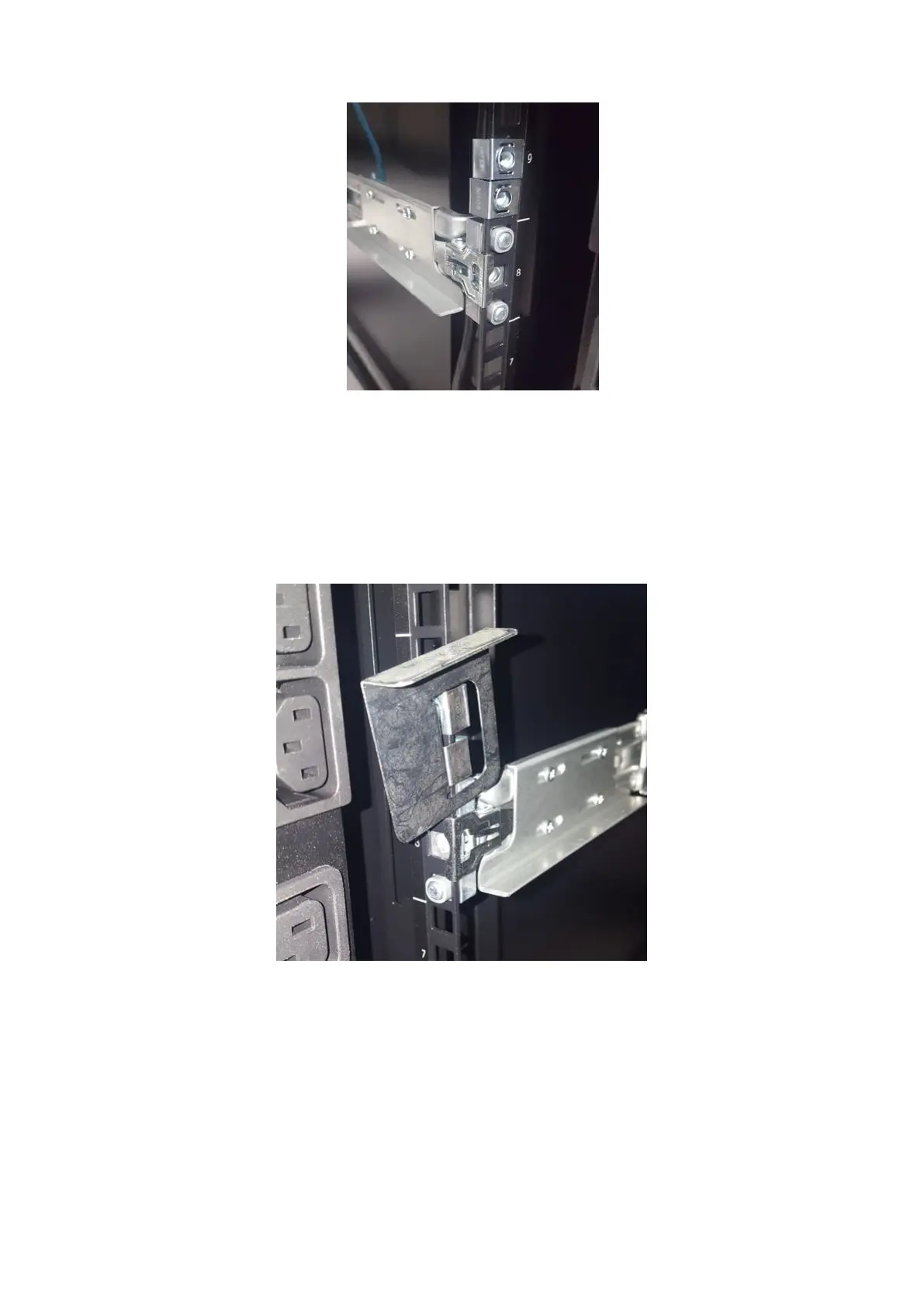

Figure 17. Correctly installed rear rack rail

Installing the chassis retention brackets

Prerequisites

You must install the chassis retention bracket on the two rear rack flanges before you install the DM5500 into the rack.

Figure 18. Chassis retention bracket on rear rack flange

Install the DM5500 in the rack
