Dell DM5500 - DM5500 with One Enclosure Cabling; DM5500 with Two Enclosures Cabling; DM5500 with One Enclosure Cabling Instructions; DM5500 with Two Enclosures Cabling Instructions

3
2
10
1
2
3
4
EMM 1
EMM 2
First expansion enclosure (Enclosure 2)
DM5500 head unit (Enclosure 1)
2 2

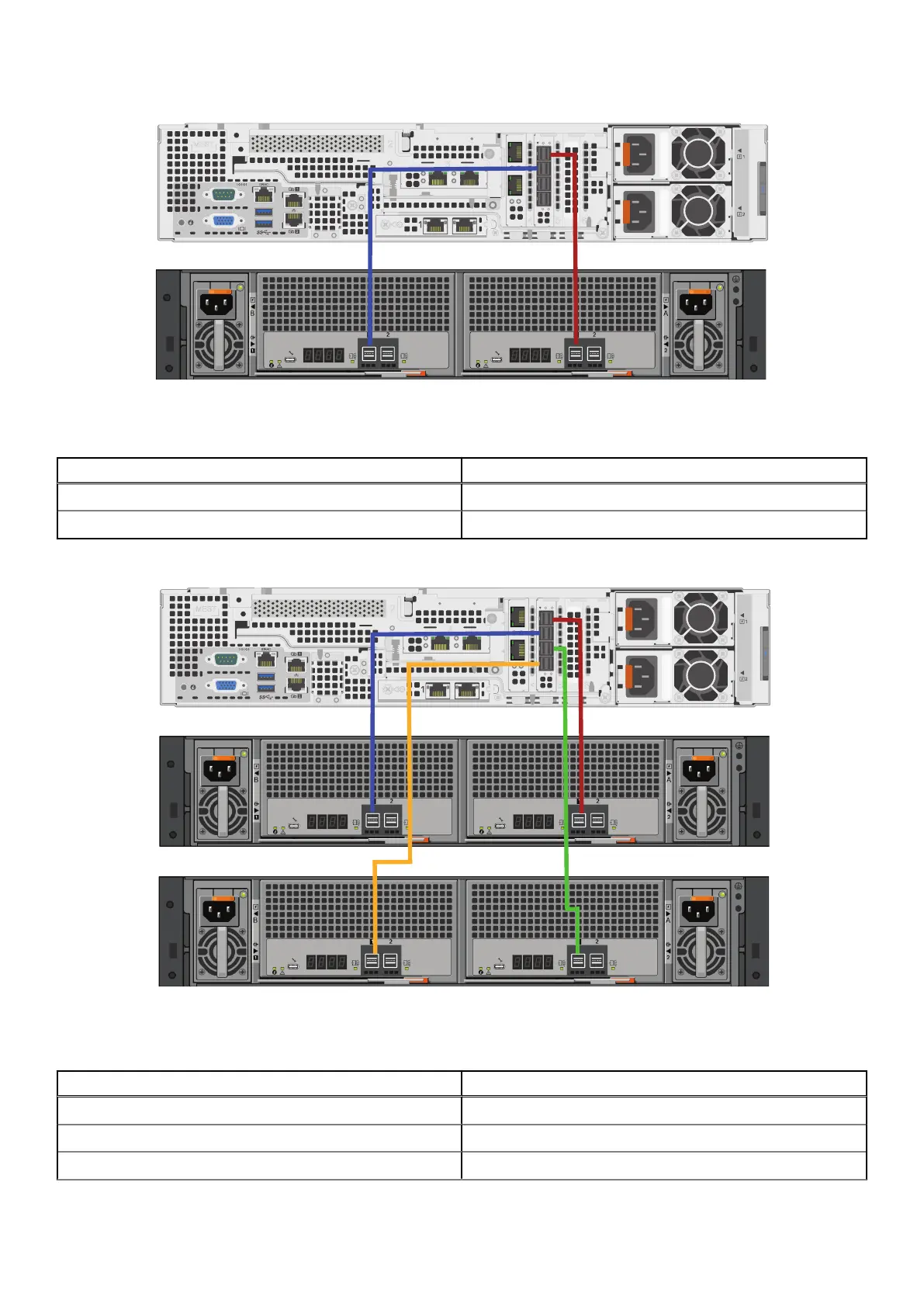

Figure 43. DM5500 with one enclosure cabling
Table 19. DM5500 with one enclosure cabling instructions 
SAS card port on DM5500 head unit (Enclosure 1) Expansion enclosure port (Enclosure 2)
Port 1 EMM 2, port 1
Port 2 EMM 1, port 1
3
2
10
1
2
3
4
EMM 1 EMM 2
EMM 1 EMM 2
2
2
3 3
DM5500 head unit (Enclosure 1)
First expansion enclosure (Enclosure 2)
Second expansion enclosure (Enclosure 3)
Figure 44. DM5500 with two enclosures cabling
Table 20.
DM5500 with two enclosures cabling instructions 
SAS card port on DM5500 head unit (Enclosure 1) Expansion enclosure port
Port 1 First expansion enclosure (Enclosure 2): EMM 2, port 1
Port 2 First expansion enclosure (Enclosure 2): EMM 1, port 1
Port 3 Second expansion enclosure (Enclosure 3): EMM 2, port 1
52 Expansion enclosure cabling requirements
