Dell DM5500 - Closing the Drive Bays; Opening the Drive Bays; Closing Drive Bays

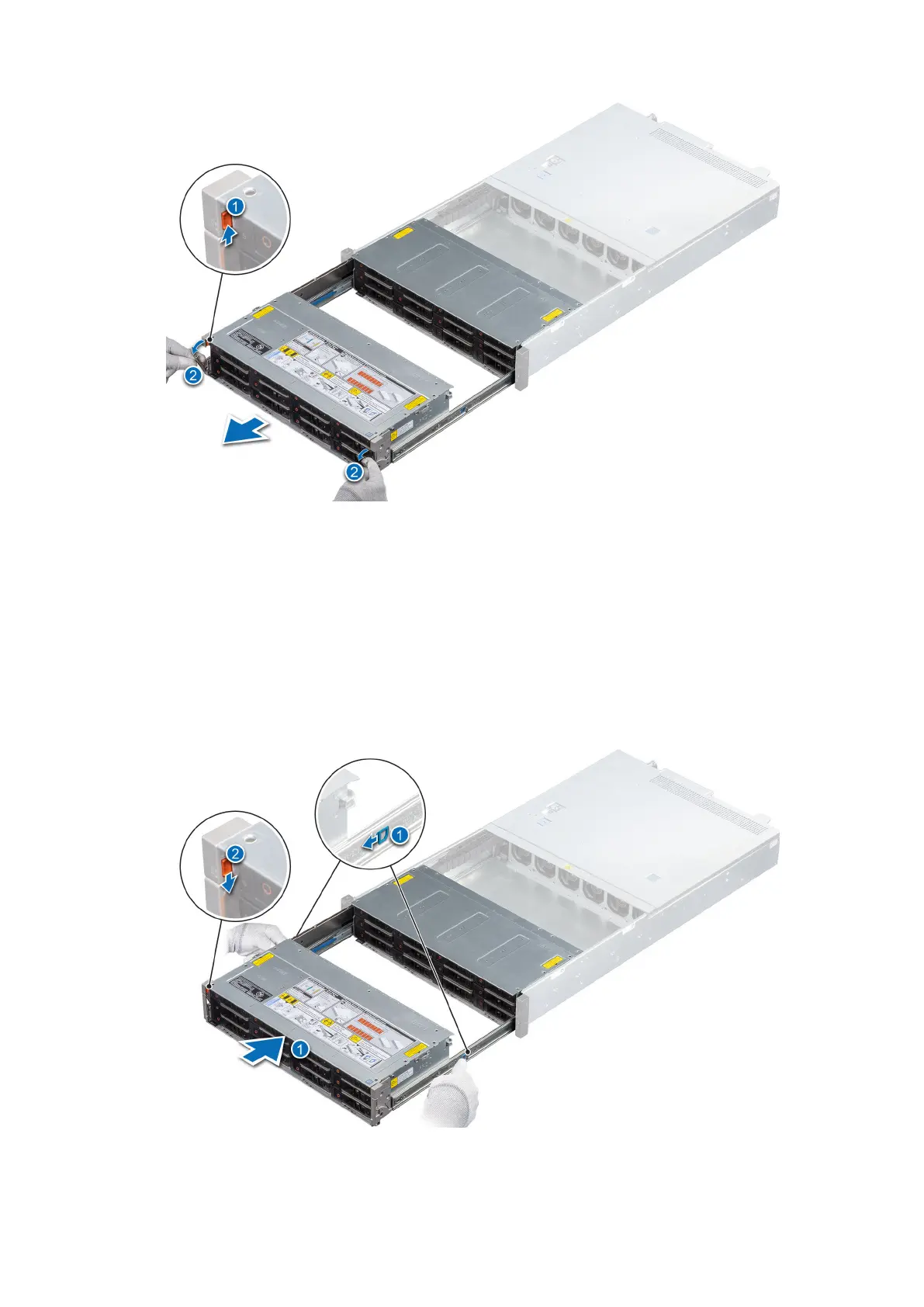

Figure 25. Opening the drive bays
Next steps
1. Remove the drives.
Closing the drive bays
Steps
1. Pull back the blue release tabs on both sides and slide the drive bays into the system, until both the bays lock into place.
Figure 26. Closing drive bays
34
Install the DM5500 in the rack
