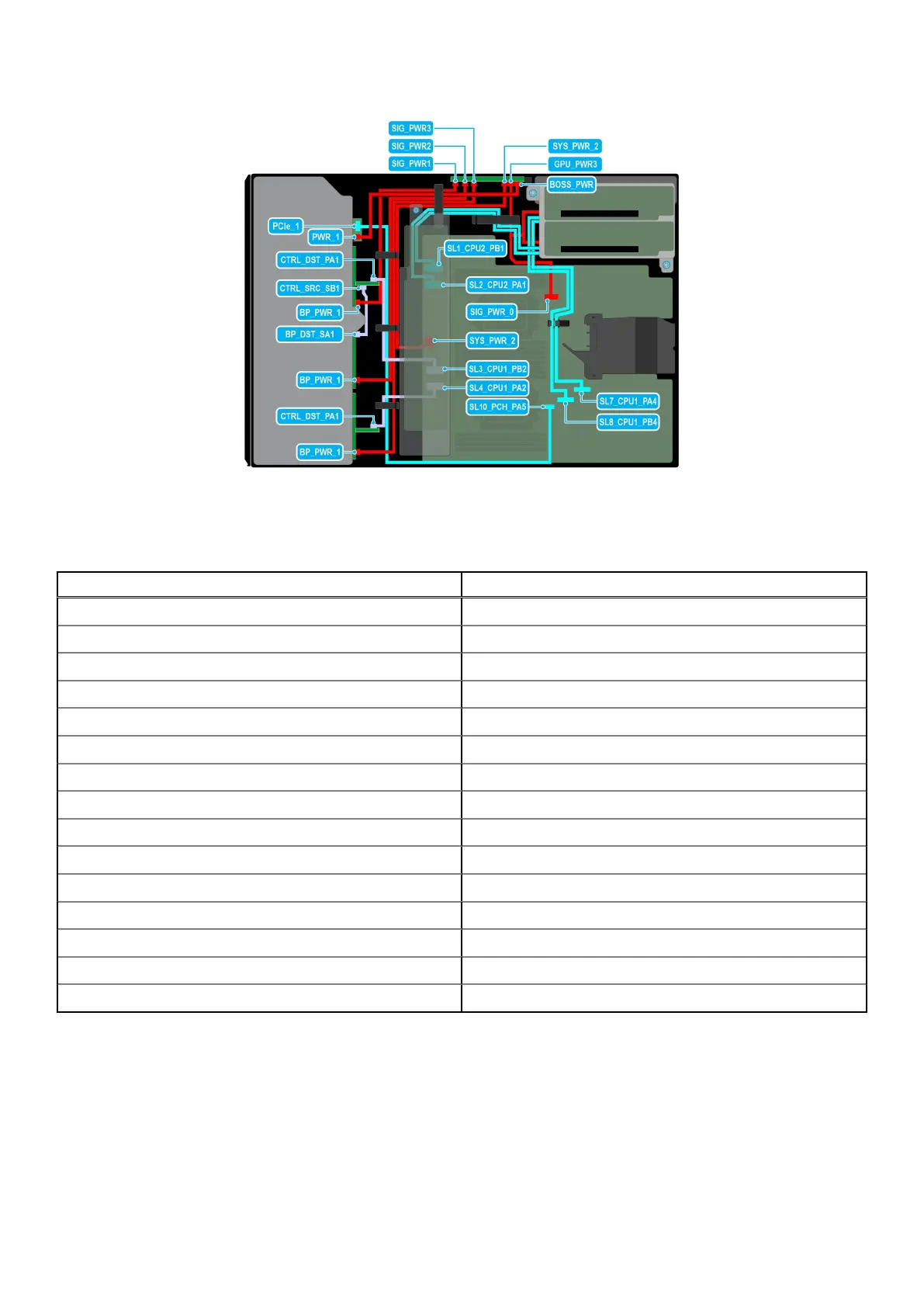

Figure 83. Cable routing - 24 x 2.5-inch SAS with two GPU risers
Table 26. Cable routing - 24 x 2.5-inch SAS with two GPU risers
From To
PCIe_1 (Signal connector on BOSS S2 module) SL10_PCH_PA5 (Signal connector on system board)
PWR_1 (Power connector on BOSS S2 module) BOSS_PWR (Power connector on PIB)
CTRL_DST_PA1 (Signal connector on PERC) SL3_CPU1_PB2 (Signal connector on system board)
CTRL_SRC_SB1 (Signal connector on PERC) BP_DST_SA1 (Signal connector on backplane)
BP_PWR_1 (Power connector on backplane) SIG_PWR_1 (Power connector on PIB)
BP_PWR_1 (Power connector on backplane) SIG_PWR_2 (Power connector on PIB)
BP_PWR_1 (Power connector on backplane) SIG_PWR_3 (Power connector on PIB)
CTRL_DST_PA1 (Signal connector on PERC) SL4_CPU1_PA2 (Signal connector on system board)
SYS_PWR_2 (Power connector on system board) SYS_PWR_2 (Power connector on PIB)
SIG_PWR_0 (Power connector on system board) RISER_PWR_1 (Power connector on GPU riser)
GPU_PWR_3 (Power connector on PIB) RISER_PWR_1 (Power connector on GPU riser)
SL7_CPU1_PA4 (Signal connector on system board) RISER_DST_PA1 (Signal connector on GPU riser 1)
SL8_CPU1_PB4 (Signal connector on system board) RISER_DST_PB1 (Signal connector on GPU riser 1)
SL1_CPU2_PB1 (Signal connector on system board) RISER_DST_PB1 (Signal connector on GPU riser 2)
SL2_CPU2_PA1 (Signal connector on system board) RISER_DST_PA1 (Signal connector on GPU riser 2)
