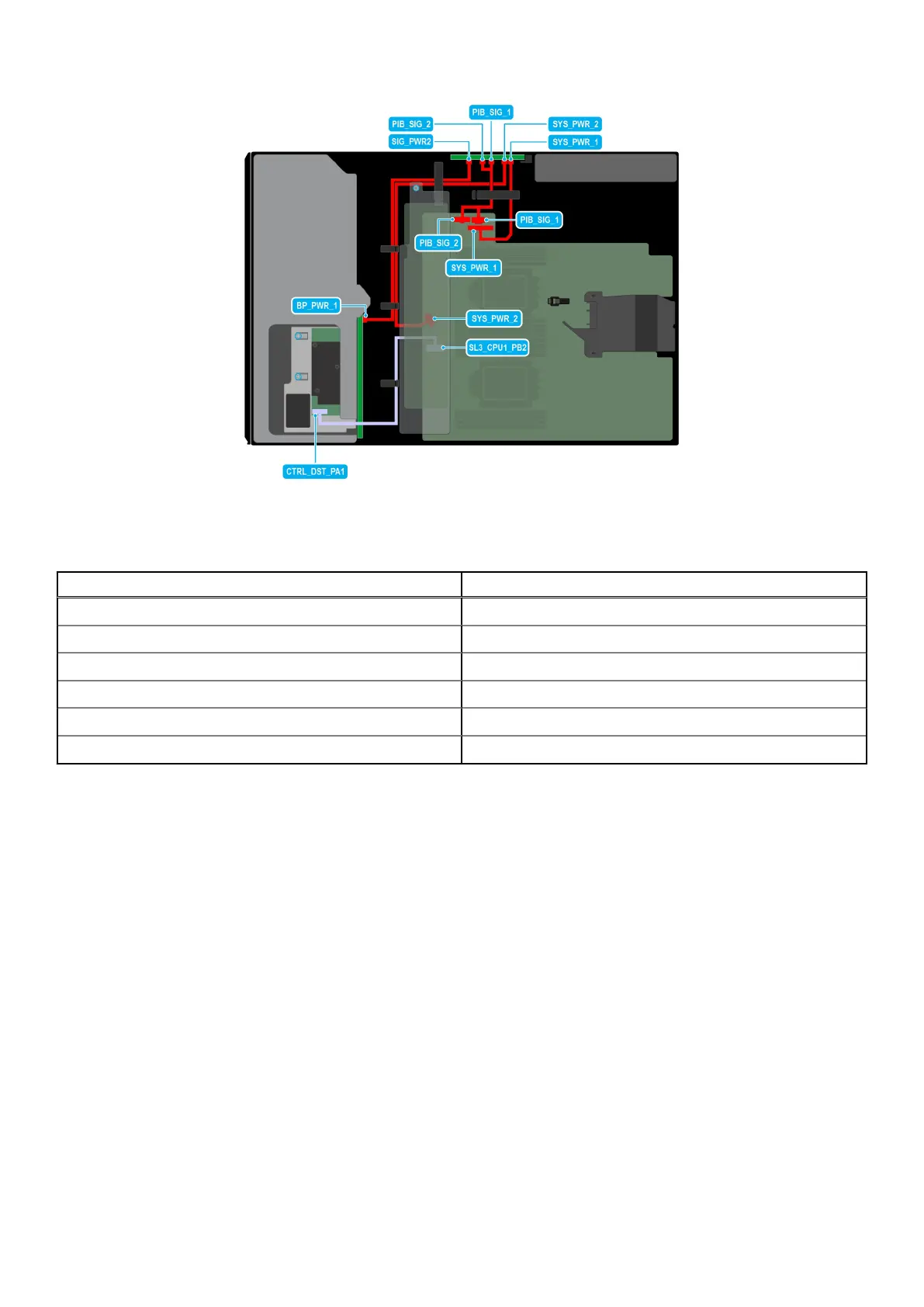

Figure 84. Cable routing - 8 x 3.5-inch SAS
Table 27. Cable routing - 8 x 3.5-inch SAS
From To
CTRL_DST_PA1 (Signal connector on PERC) SL3_CPU1_PB2 (Signal connector on system board)
BP_PWR_1 (Power connector on backplane) SIG_PWR_1 (Power connector on PIB)
SYS_PWR_1 (Power connector on system board) SYS_PWR_1 (Power connector on PIB)
SYS_PWR_2 (Power connector on system board) SYS_PWR_2 (Power connector on PIB)
PIB_SIG_1 (Power connector on system board) PIB_SIG_1 (Power connector on PIB)
PIB_SIG_2 (Power connector on system board) PIB_SIG_2 (Power connector on PIB)
