6-10
Dell OptiPlex Gn and Gn+ Systems Service Manual
3.5-Inch Drive Assembly

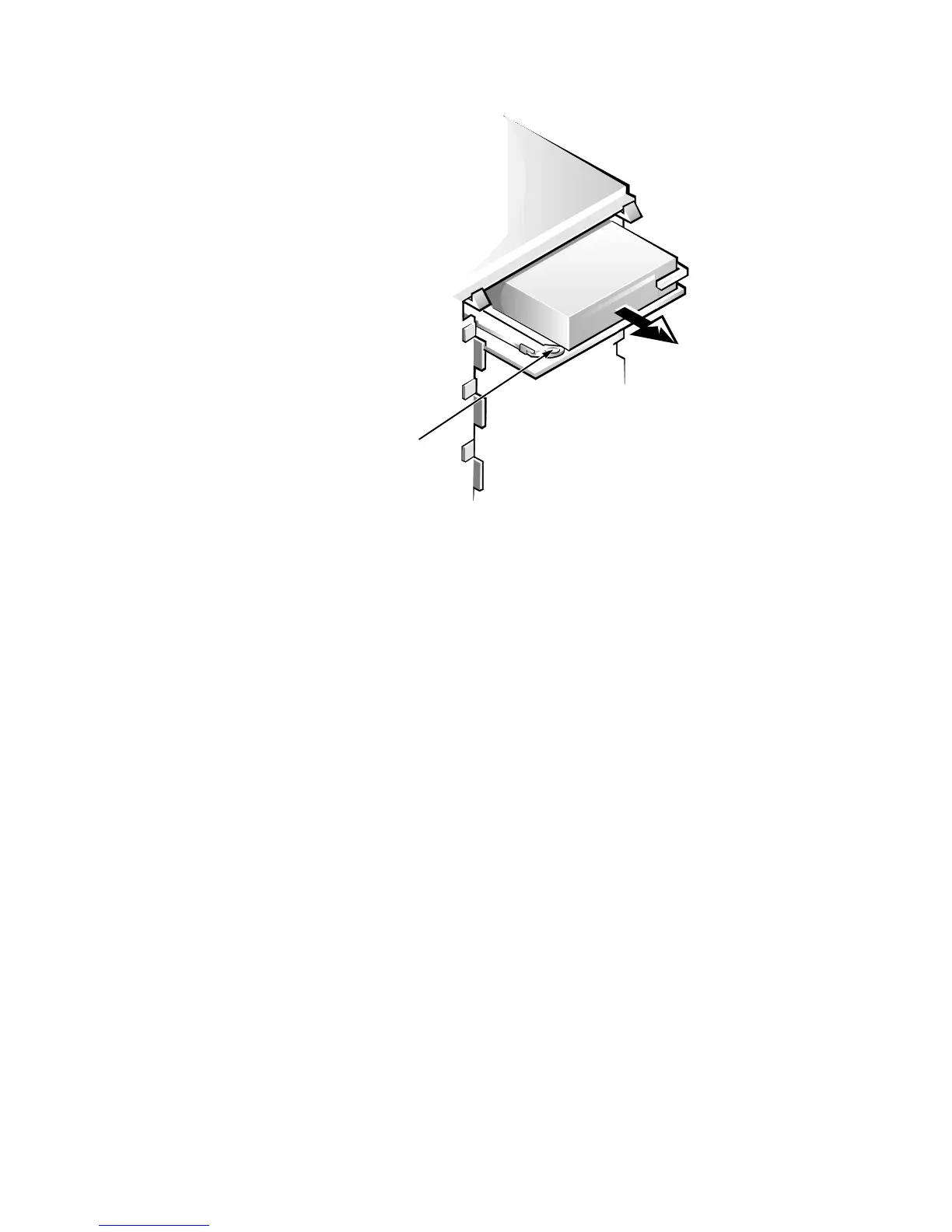

Figure 6-9. 3.5-Inch Drive Assembly Removal
To remove the 3.5-inch diskette drive assembly, follow these steps:
1. Disconnect the DC power cable and the interface cable from the back of
the 3.5-inch diskette drive.
2. Press the retaining-tab release button, and pull the drive assembly for-
ward to remove it.
3. Remove the drive-mounting screw from the left side of the drive, and
remove the drive from the bracket (see Figure 6-10).
