Removing and Replacing Parts on the Low-Profile Chassis 4-13
S
ystem Power Supply

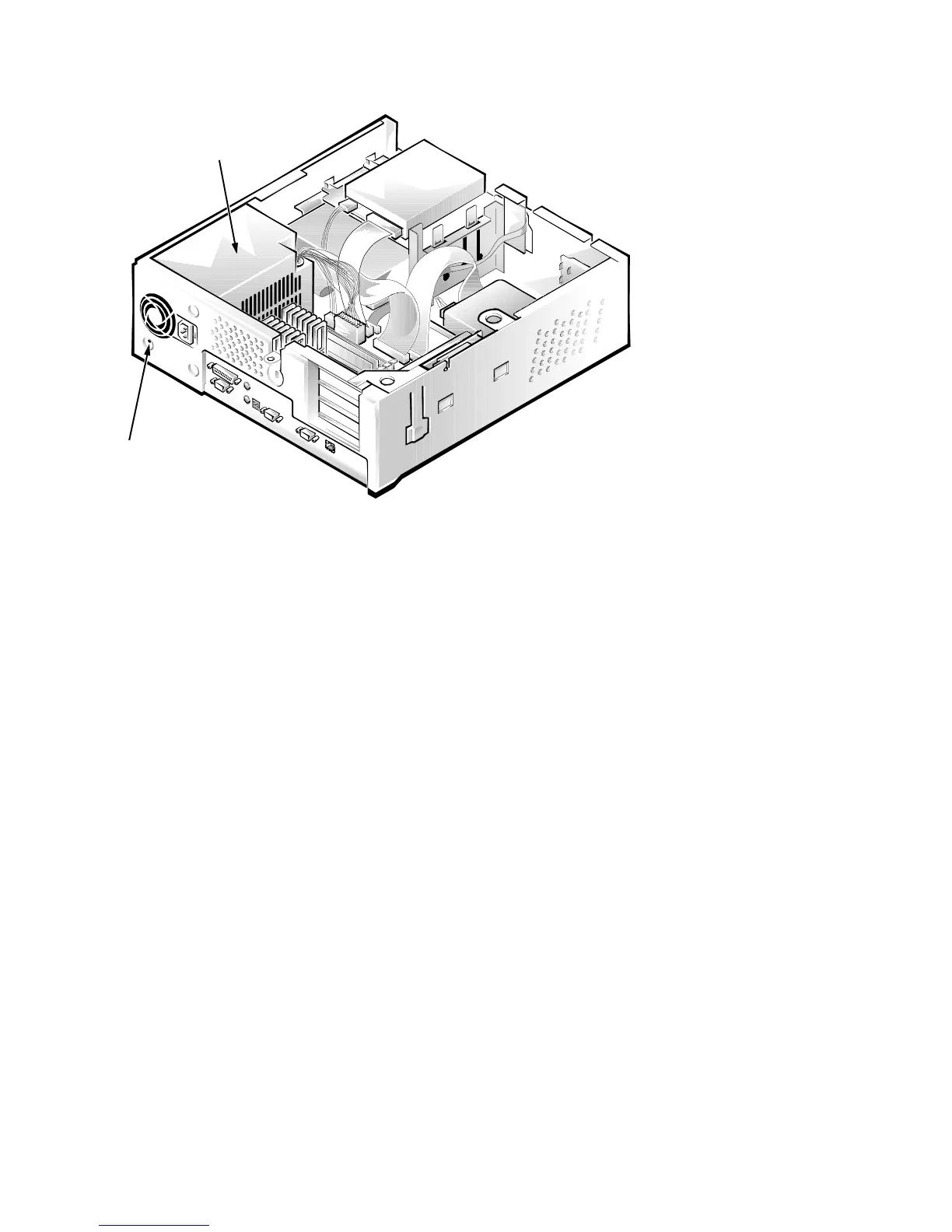

Figure 4-12. System Power-Supply Removal
To remove the system power supply, follow these steps:
1. Disconnect the AC power cable from the back of the power supply.
2. Disconnect the DC power cables from the system board and the drives.
3. Remove the power-supply mounting screw at the back of the chassis.
4. Slide the system power supply forward until it stops; then lift it from
the chassis.
When you replace the system power supply, position it against the interior right
side of the chassis. Then slide the system power supply toward the back of the
chassis, and hook the tabs into the right side of the power supply.
power supply
power-supply
mounting screw
