Dell OptiPlex Gn - Riser Board; Figure 4-16. Riser Board Removal

Removing and Replacing Parts on the Low-Profile Chassis 4-17
Riser Board

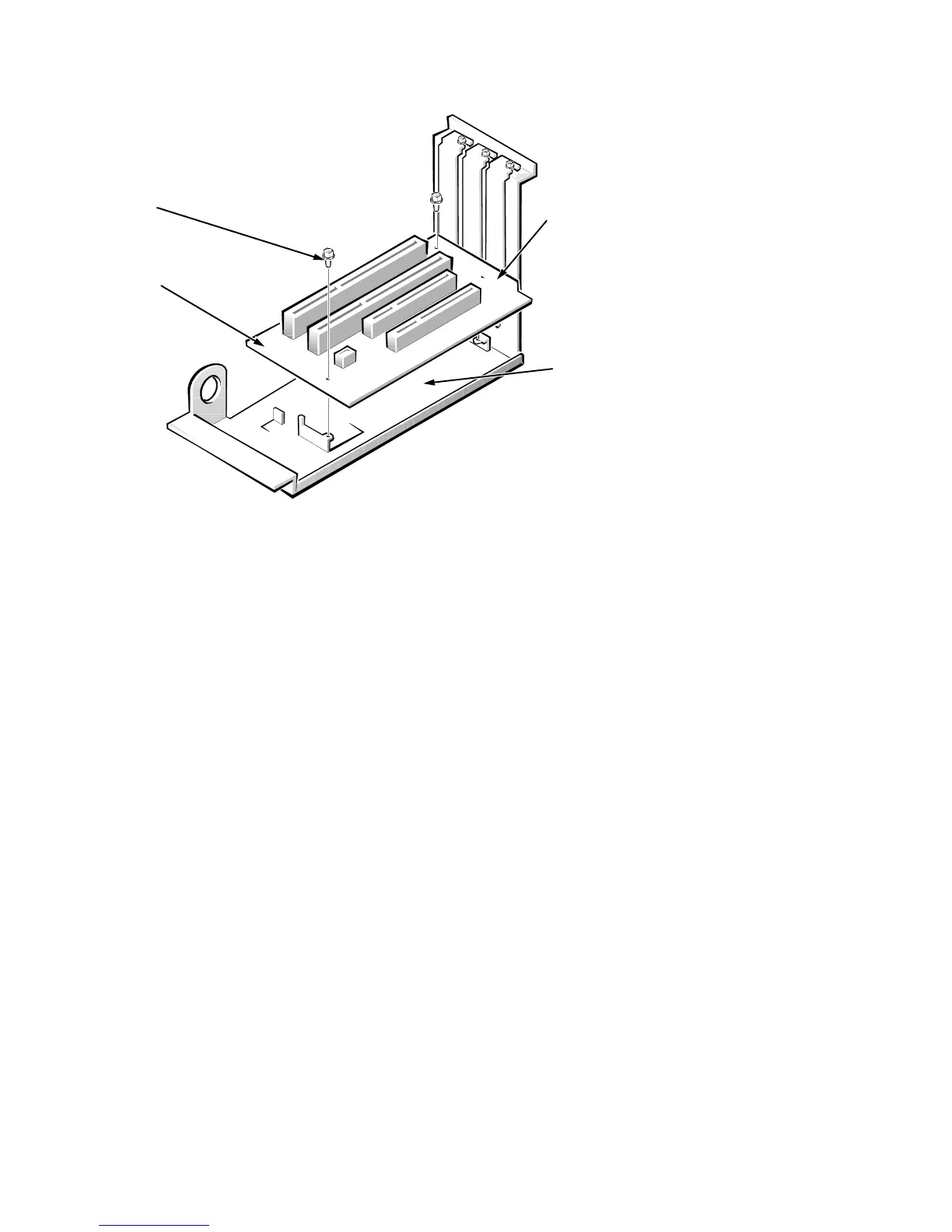

Figure 4-16. Riser Board Removal
To remove the riser board, follow these ste
p
s:
1. Remove the expansion-card cage and all expansion cards.
2. Lay the expansion-card cage on a flat work surface with the riser board
facing up.
3. Remove the two riser-board mounting screws.
4. Lift the riser board away from the expansion-card cage.
When
y
ou re
p
lace the riser board, be sure the ali
g
nment feature on the
ex
p
ansion-card ca
g
e en
g
a
g
es with the ali
g
nment slot.
riser board
riser-board mounting
screws (2)
expansion-card
cage
riser-board alignment
slot
