Dell OptiPlex Gn and Gn+ Systems Service Manual
DIMMs

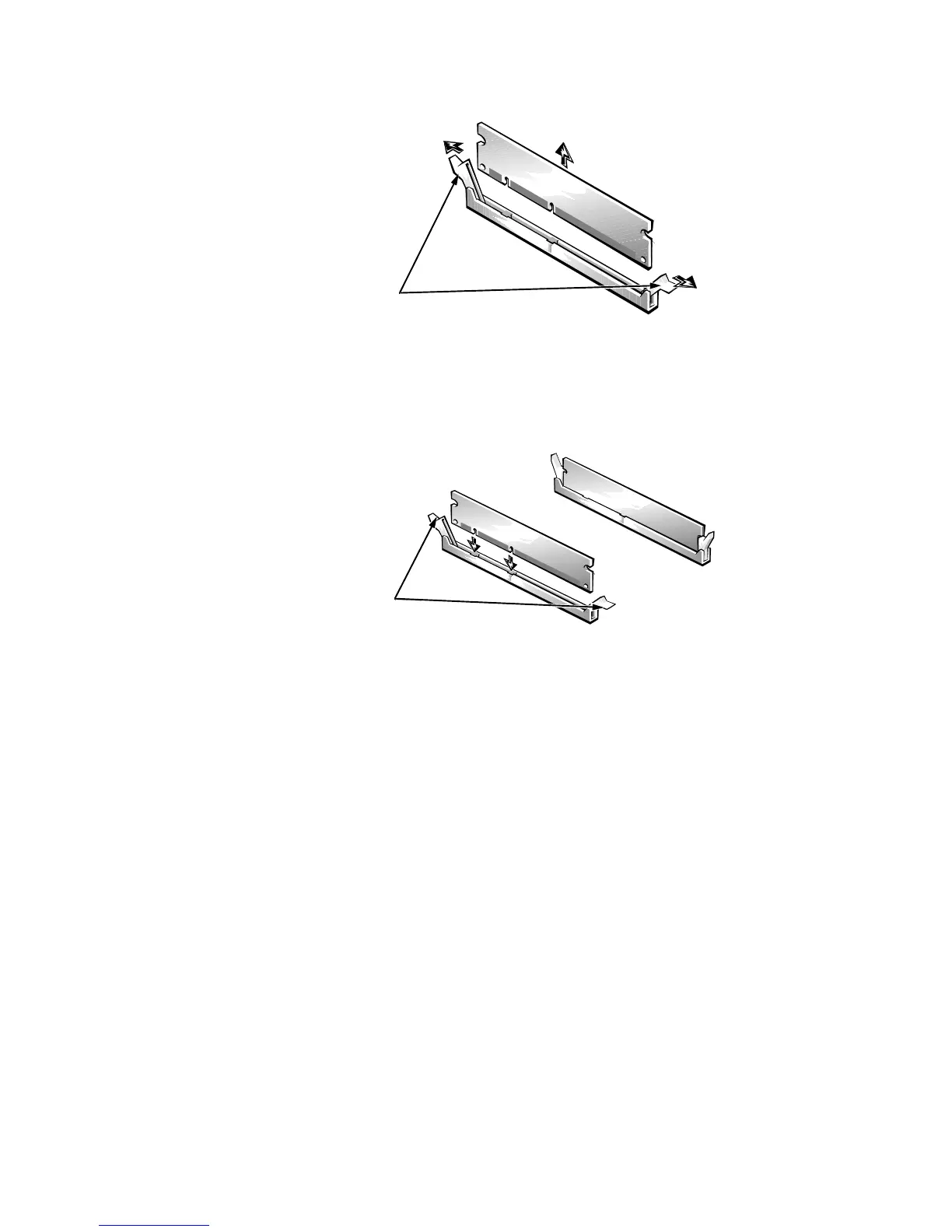

Figure 4-17. DIMM Removal
To remove a DIMM, push outward on the DIMM socket’s securing clips until
the DIMM is released from its socket. Lift the DIMM away from the socket.
Figure 4-18. DIMM Installation
To replace a DIMM, press the DIMM fully into the socket as shown in step 1 of
Figure 4-18. Then close the securing clips to lock the DIMM into the socket as
shown in step 2 of Figure 4-18.
