Removing and Replacing Parts on the Midsize Chassis 5-3
F
loor Stand

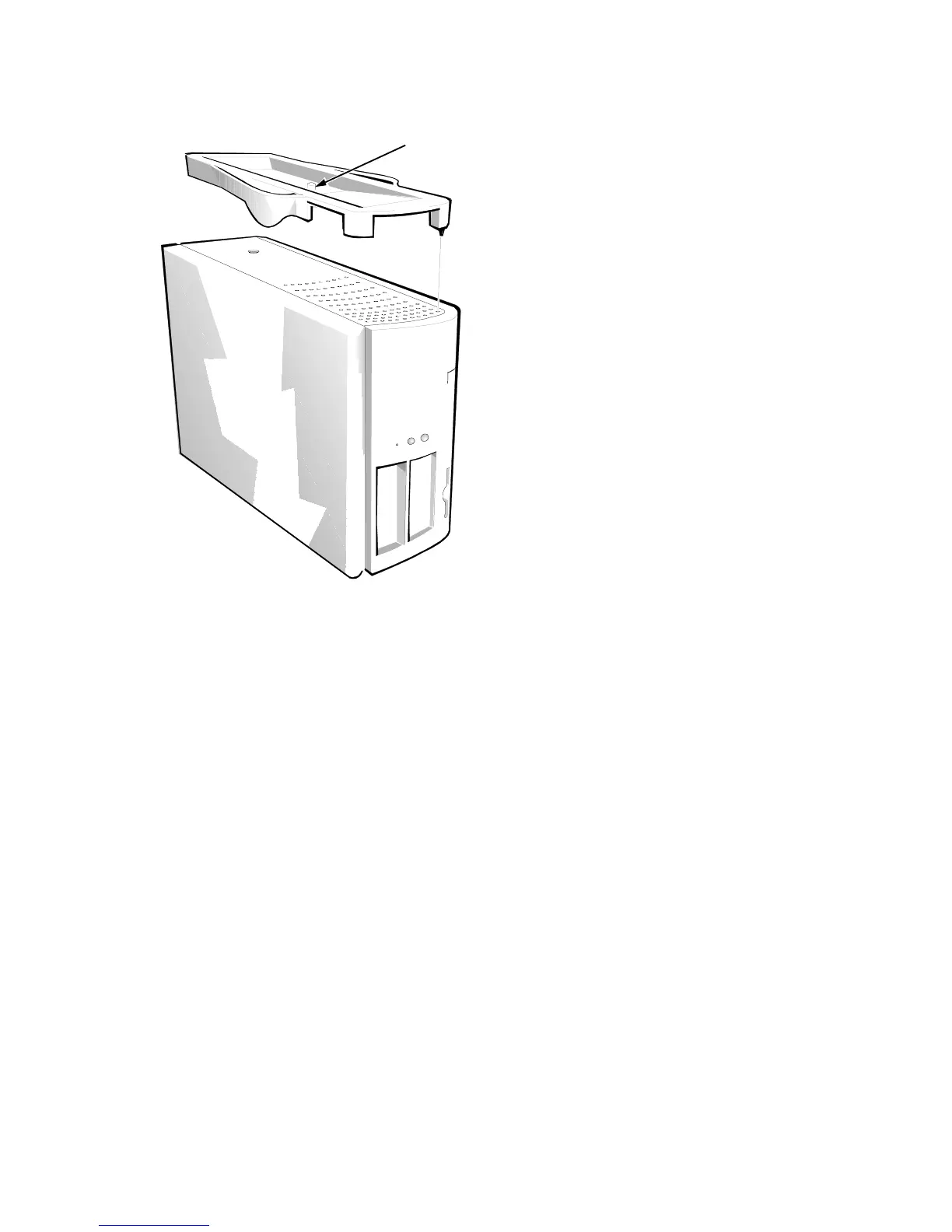

Figure 5-1. Floor Stand Removal
To remove the floor stand, if one is installed, follow these steps:
1. Place the right side of the computer on a flat work surface.
2. Unscrew the floor stand screw.
Use your fingers or a wide flat-blade screwdriver to unscrew the floor stand
screw.
3. Pull the floor stand away from the computer.
Disengage the three orientation tabs that position and help secure the floor
stand to the computer.
floor stand screw
