Dell OptiPlex Gn and Gn+ Systems Service Manual
C
ontrol Panel

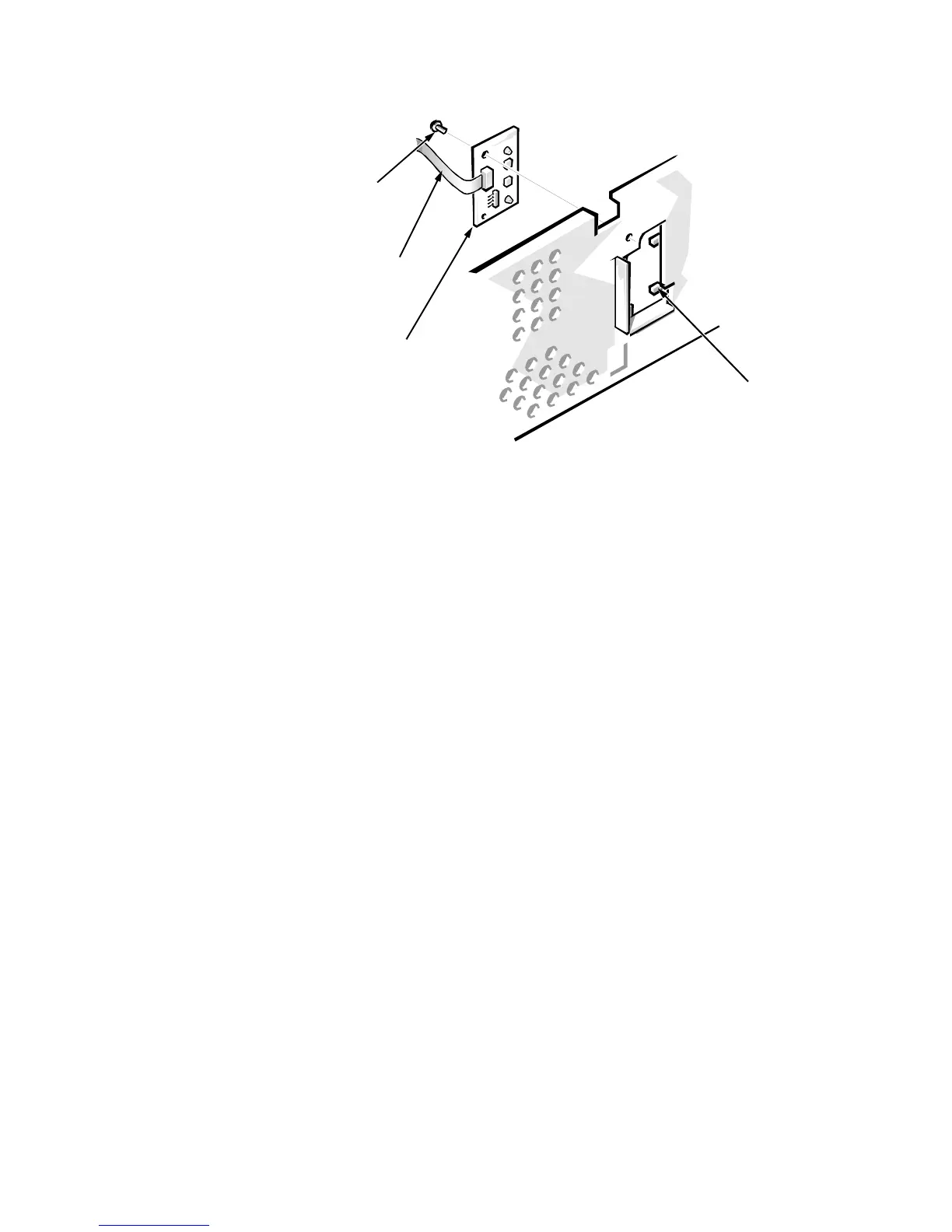

Figure 4-7. Control Panel Removal
To remove the control panel, follow these steps:
1. Disconnect the control panel cable from the PANEL connector on the
system board (see Figure 4-12).
2. From the inside of the chassis, remove the mounting screw securing the
control panel to the chassis.
3. Remove the control panel from the chassis.
When you reinstall the control panel, be sure to put the right side of the con-
trol panel behind the mounting tab.
