Configuring System Information 155

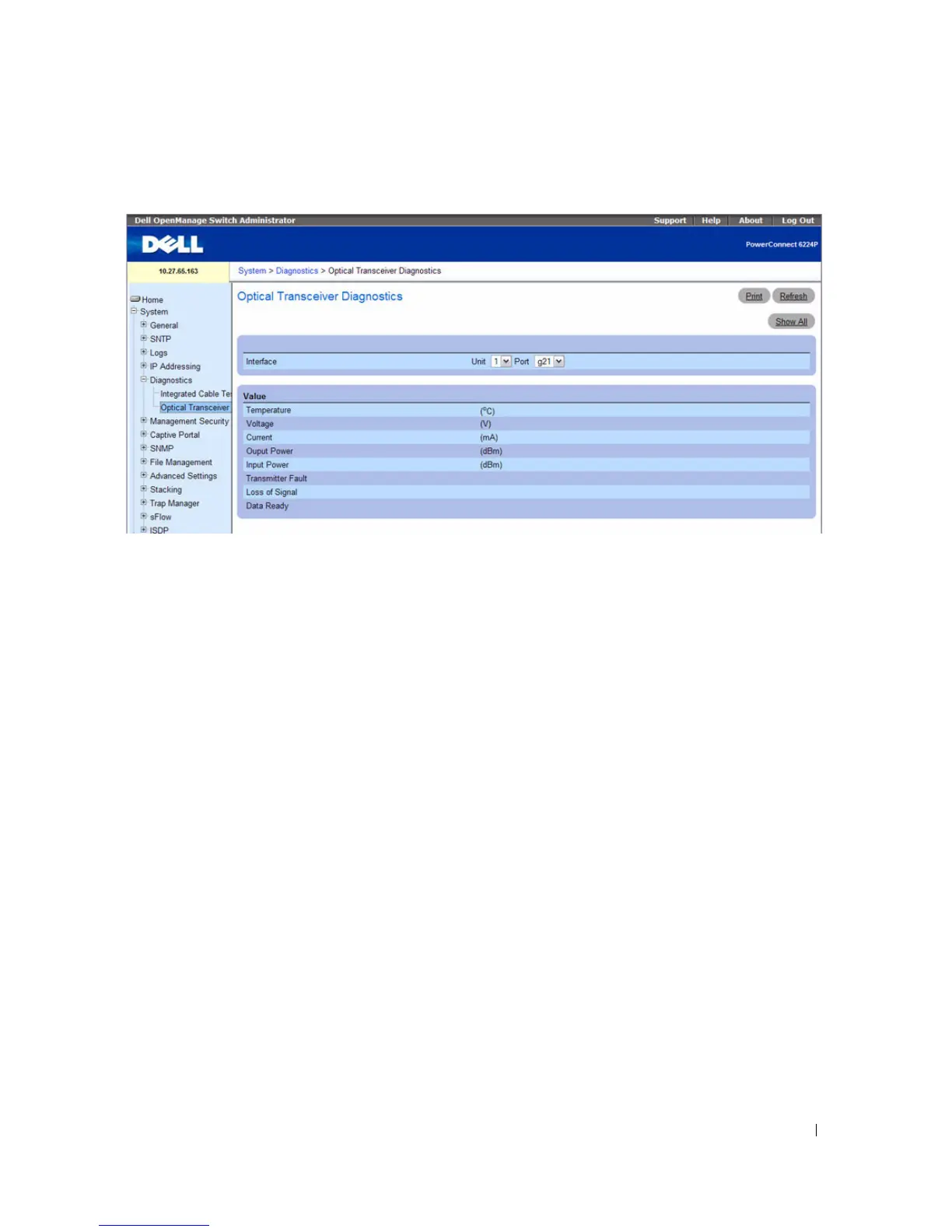

Figure 6-34. Optical Transceiver Diagnostics
The Optical Transceiver Diagnostics page contains the following fields:
• Interface — The port IP address on which the cable is tested.
•
Temperature — The temperature (C) at which the cable is operating.
•
Voltage — The voltage at which the cable is operating.
•
Current — The current at which the cable is operating.
•
Output Power — The rate at which the output power is transmitted.
•
Input Power — The rate at which the input power is transmitted.
•
Transmitter Fault — Indicates if a fault occurred during transmission.
•
Loss of Signal — Indicates if a signal loss occurred in the cable.
•
Data Ready — Indicates the transceiver has achieved power up and data is ready.
NOTE: Finisar transceivers do not support the transmitter fault diagnostic testing. Fiber Optic analysis feature works
only on SFPs that support the digital diagnostic standard SFF-4872.
Displaying Optical Transceiver Diagnostics Test Results Table
1. Open the Optical Transceiver Diagnostics page.
2. Click Show All .
3. Select the desired unit from the drop-down menu.
