Dell PowerConnect 6224 User Manual

312 Configuring Switching Information
IPv6 ACL Rule Configuration
Use the IPv6 ACL Rule Configuration page to define rules for IPv6-based ACLs. The access list
definition includes rules that specify whether traffic matching the criteria is forwarded normally or
discarded. Additionally, you can specify to assign traffic to a particular queue, filter on some traffic,
change VLAN tag, shut down a port, and/or redirect the traffic to a particular port. By default, no specific
value is in effect for any of the IPv6 ACL rules.
There is an implicit “deny all” rule at the end of an ACL list. This means that if an ACL is applied to a
packet and if none of the explicit rules match, then the final implicit “deny all” rule applies and the
packet is dropped.
To display the IPv6 ACL Rule Configuration page, click Switching
→ Network Security → Access Control
Lists
→ IPv6 Access Control Lists → Rule Configuration in the navigation menu.

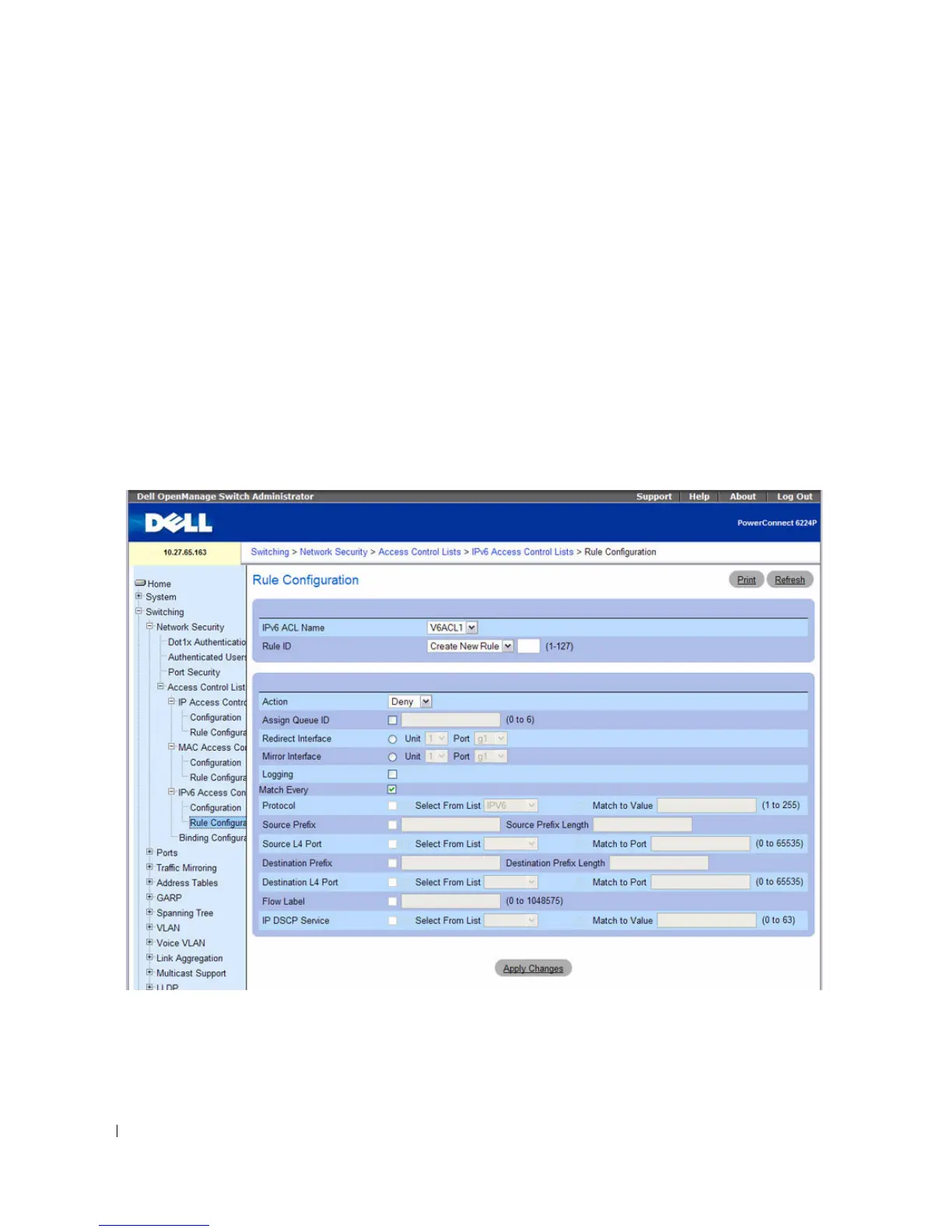

Figure 7-17. IPv6 ACL - Rule Configuration
The IPv6 ACL Configuration page contains the following fields:
• IPv6 ACL Name — Select the ACL you want to configure.

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
