Configuring Quality of Service 689
Policy Configuration
Use the Diffserv Policy Configuration page to associate a collection of classes with one or more policy
statements.
To display the
page, click Quality of Service → Differentiated Services → Policy Configuration in the
tree view.

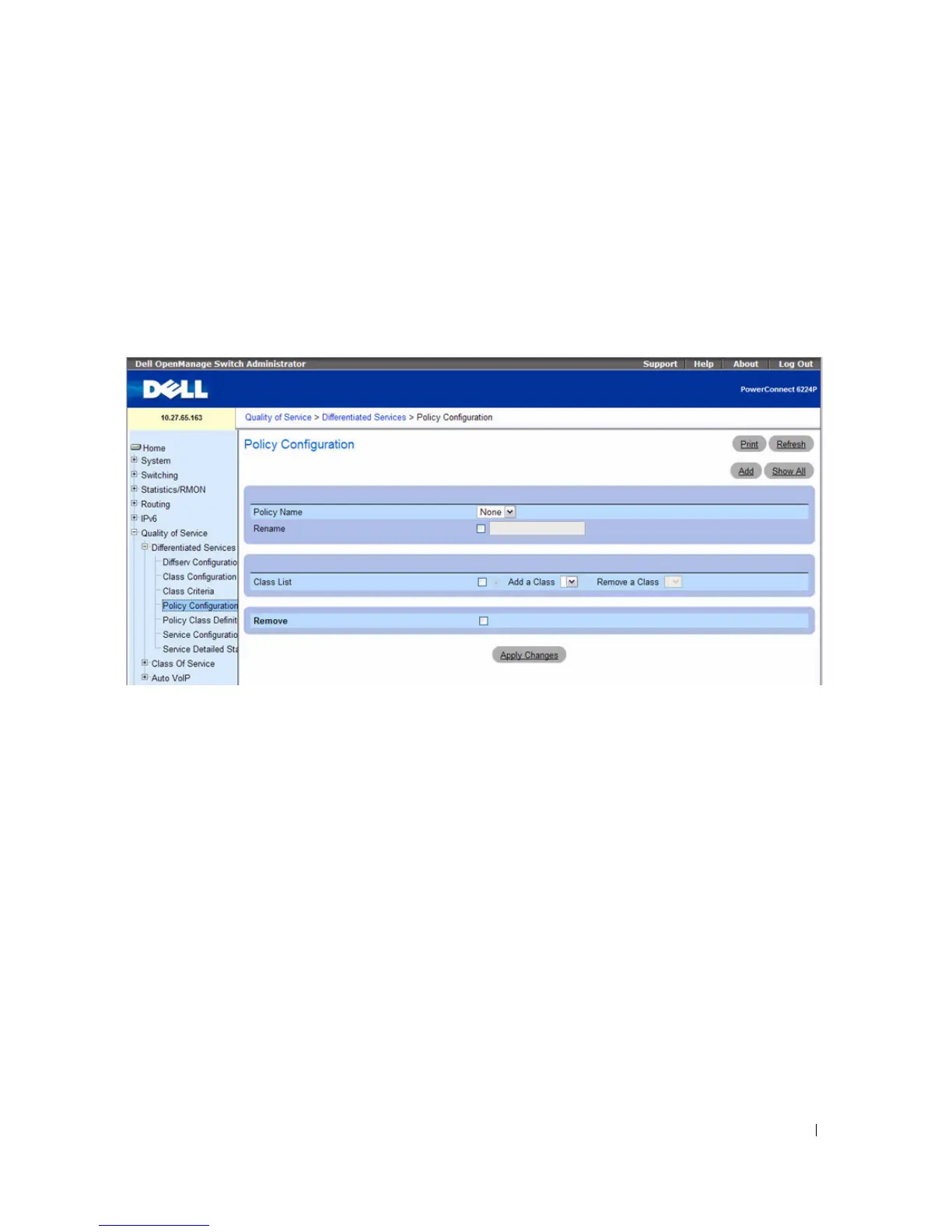

Figure 11-6. Diffserv Policy Configuration
The Diffserv Policy Configuration page contains the following fields:
• Policy Name — Selects the policy name to be associated with the class(es).
•
Rename Policy — Renames a policy when box is checked, a new name is entered, and Apply Changes
is clicked.
•
Class List — Configures class association for the policy.
–
Add a Class — Associates the class selected in the drop-down menu to a policy.
–
Remove a Class — Removes the selected class from the policy.
•
Remove — Deletes the selected policy name from the device.
Associating a Class to a Policy or Removing the Association
1. Open the Diffserv Policy Configuration page.
2. Select the Policy Name to associate with the class.
3. In Class List field , select the check box, then click the Add a Class or Remove a Class radio button
and select the
class from the related drop down menu

Dell PowerConnect 6224 Specifications

General

Switching Capacity	128 Gbps
Forwarding Rate	95.2 Mpps
Power Supply	100-240 VAC, 50/60 Hz
RAM	128 MB
Flash Memory	32 MB
Layer Support	Layer 2/3
Stacking	Up to 12 units
Weight	12.1 lbs
MAC Address Table Size	16, 000
Jumbo Frame Support	Up to 9, 216 bytes
Operating Temperature	0°C to 45°C
Storage Temperature	-40°C to 70°C
Humidity	10% to 90% (non-condensing)
Ports	24 x 10/100/1000BASE-T
VLAN Support	Yes (802.1Q)
Dimensions	17.3 x 13.8 x 1.7 in (440 x 350 x 44 mm)
