Dell PowerConnect 6224 - Front Panel

56 Hardware Description
Front Panel
The PowerConnect 6224 front panels provides 24 10/100/1000M Base-T RJ-45 ports with four RJ-45/SFP
combo ports that have an auto-sensing mode for speed, flow control, and duplex mode.

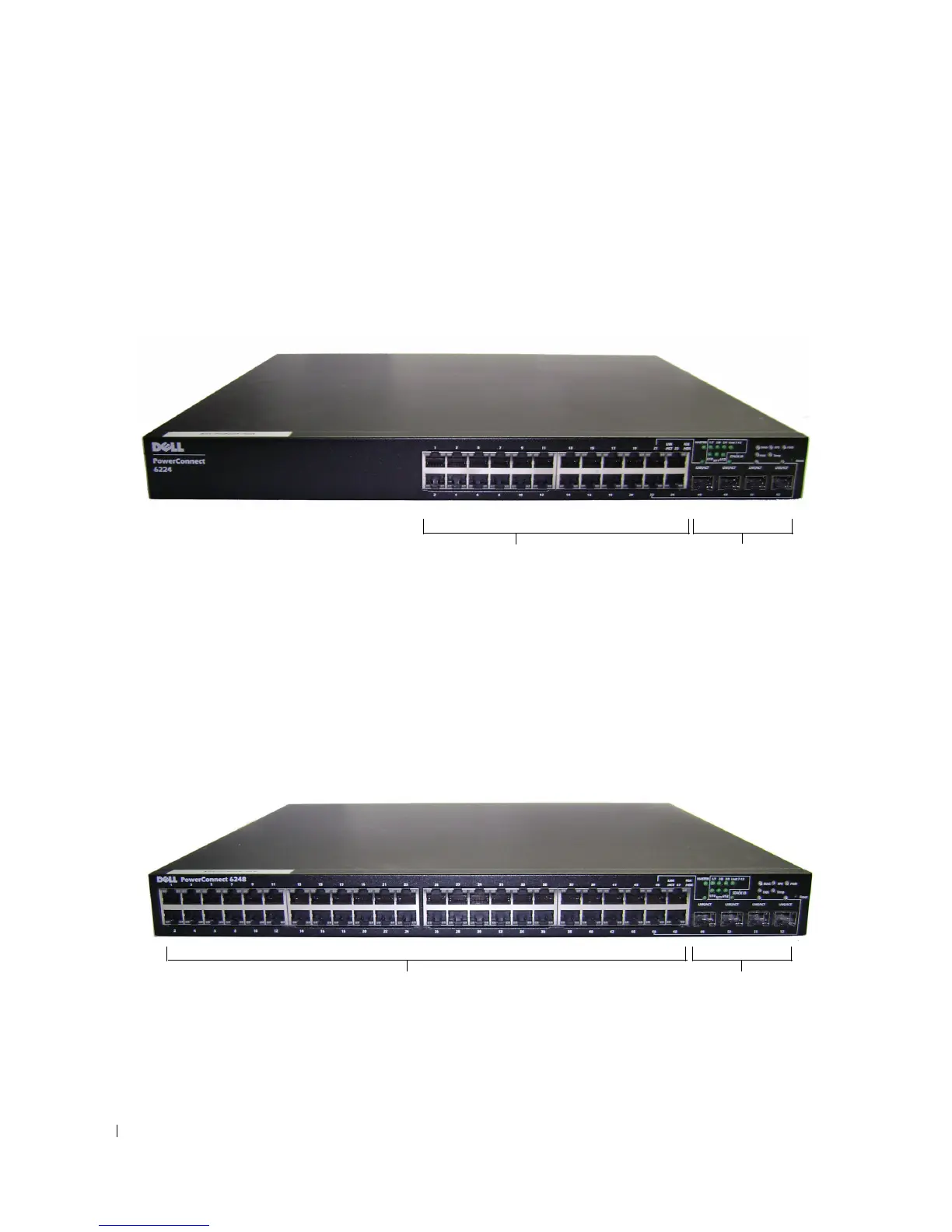

Figure 4-1. PowerConnect 6224 with 24 10/100/1000 Base-T Ports
The PowerConnect 6248 front panel provides 48 10/100/1000M Base-T RJ-45 ports and four RJ-45/SFP
combo ports.
Figure 4-2. PowerConnect 6248 with 48 10/100/1000M Base-T Ports
Combo Ports
10/100/1000Base-T Auto-sensing
Full Duplex RJ-45 Ports
Combo Ports
10/100/1000M Base-T Auto-sensing
Full-Duplex RJ-45 Ports
