To display the LAG Configuration page, click Switching → Ports → LAG Configuration in the tree view.

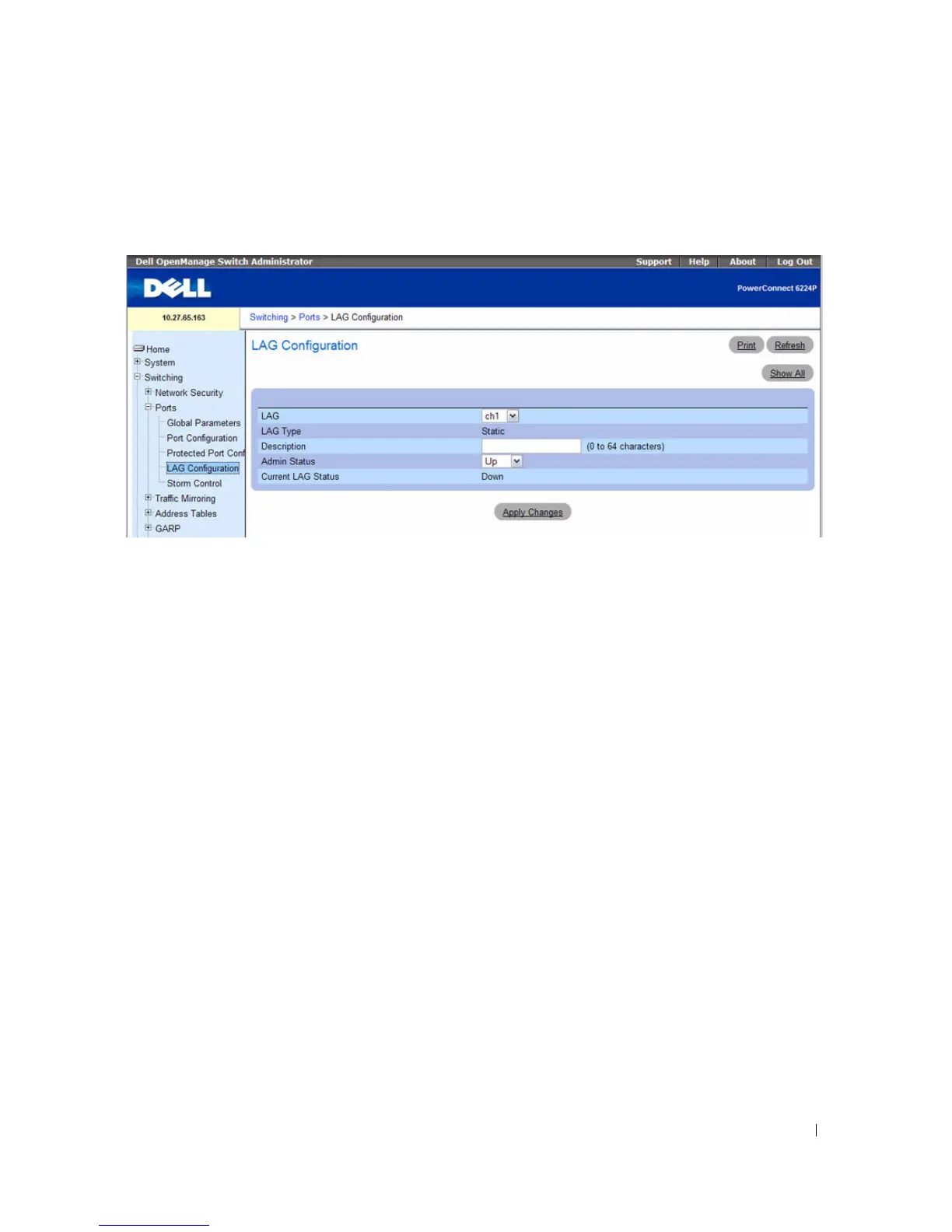

Figure 7-25. LAG Configuration
The LAG Configuration page contains the following fields:
• LAG — Contains a list of LAG numbers.
•
LAG Type — The port types that comprise the LAG.
•
Description (0–64 Characters) — Description of the port.
•
Admin Status — Enables or disables traffic forwarding through the selected LAG.
•
Current LAG Status — Indicates whether the selected LAG is Up or Down.
Defining LAG Parameters
1. Open the LAG Configuration page.
2. Select a LAG in the LAG field.
3. Define the available fields on the screen.
4. Click Apply Changes .
The LAG parameters are saved to the switch.
Displaying the LAG Configuration Table
1. Open the LAG Configuration page.
2. Click Show All .
3. The LAG Configuration Table displays.
