Table 51. Connector descriptions for SATA
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SATA connector) SL3_PCH_SA1 (signal connector on the system board)

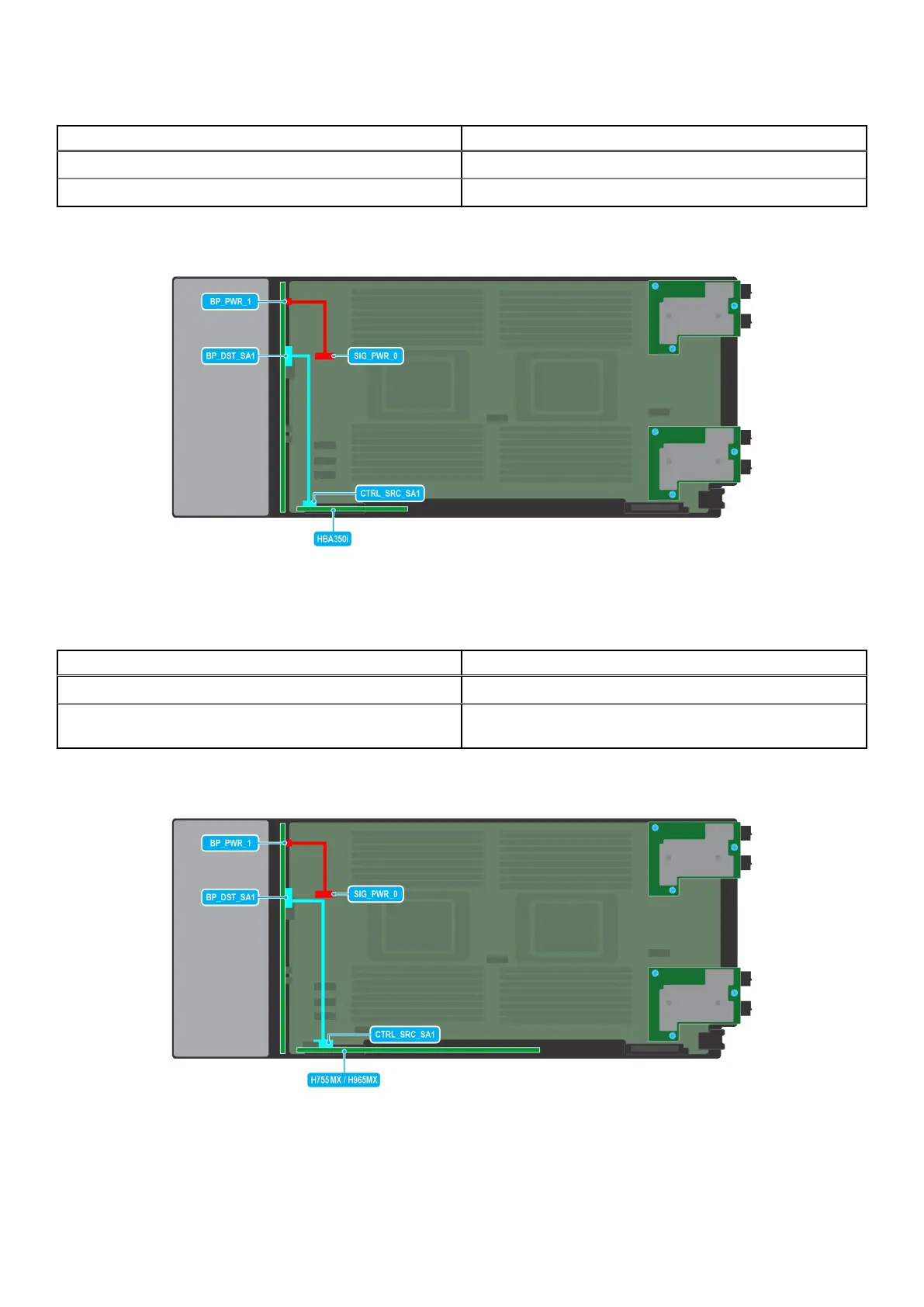

Figure 56. SAS/SATA cabling diagram of configuration 4 - 6 x 2.5-inch SAS/SATA backplane with HBA350i MX
Table 52. Connector descriptions for SAS with HBA350i MX
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SAS/SATA connector) CTRL_SRC_SA1 (HBA350i MX controller connector on the
system board)
Figure 57. SAS/SATA cabling diagram of configuration 5 - 6 x 2.5-inch SAS/SATA backplane with H755 MX or H965i
MX
86
Installing and removing system components
