Table 53. Connector descriptions for SAS with H755 MX or H965i MX
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SAS/SATA connector) CTRL_SRC_SA1 (H755 MX or H965i MX controller connector
on the system board)

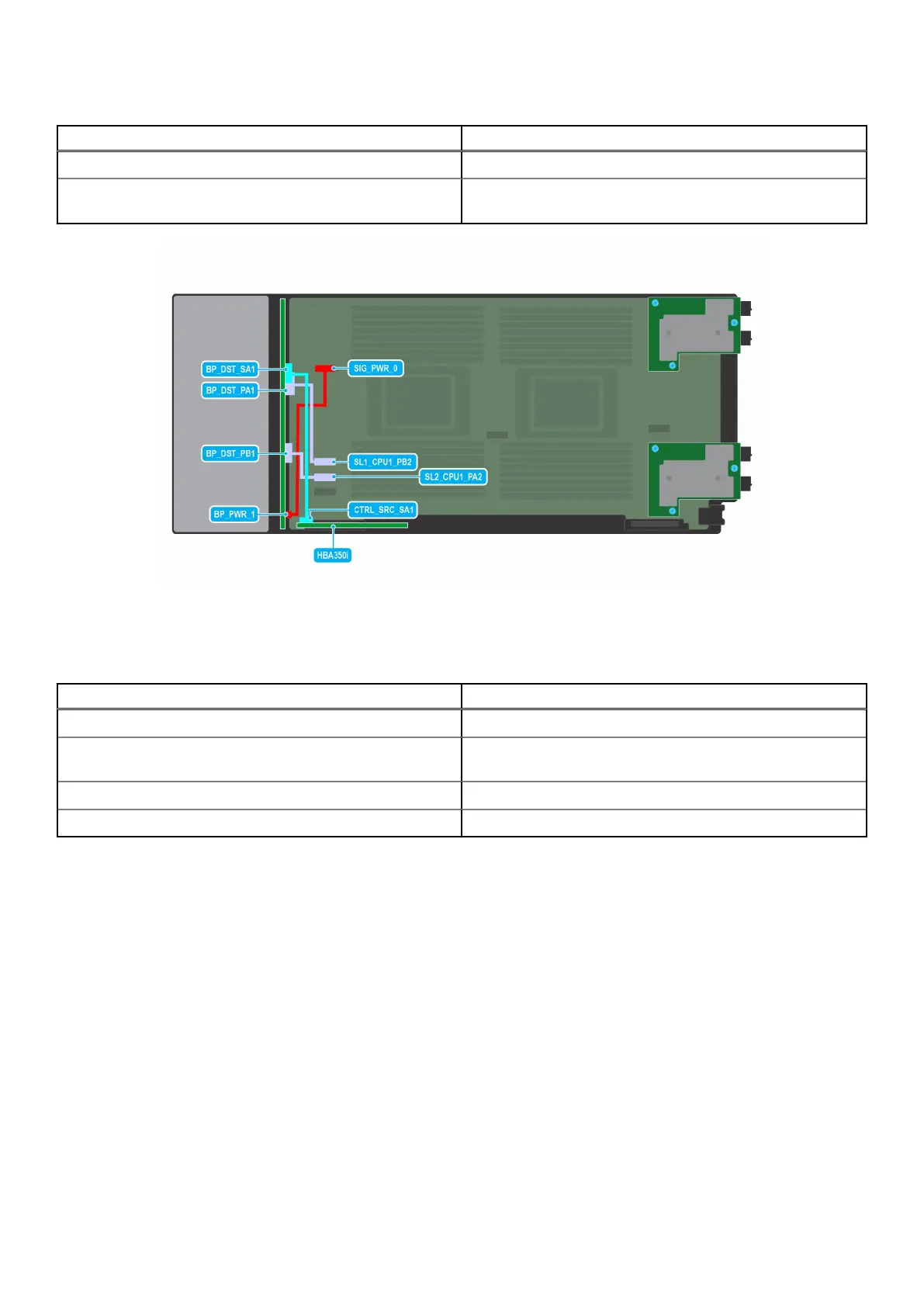

Figure 58. SATA//SAS/NVMe cabling diagram of configuration 7 - 4 x 2.5-inch universal backplane with HBA350i
MX
Table 54. Connector descriptions for SATA//SAS/NVMe with HBA350i MX
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_SA1 (backplane SAS/SATA connector) CTRL_SRC_SA1 (HBA350i MX controller connector on the
system board)
BP_DST_PA1(backplane PCIe cable connector) SL1_CPU1_PB2 (signal connector on the system board)
BP_DST_PB1 (backplane PCIe cable connector) SL2_CPU1_PA2 (signal connector on the system board)
