Table 58. Connector descriptions for SATA (continued)
From To
BP_DST_SA1 (backplane SATA connector) SL3_PCH_SA1 (signal connector on the system board)

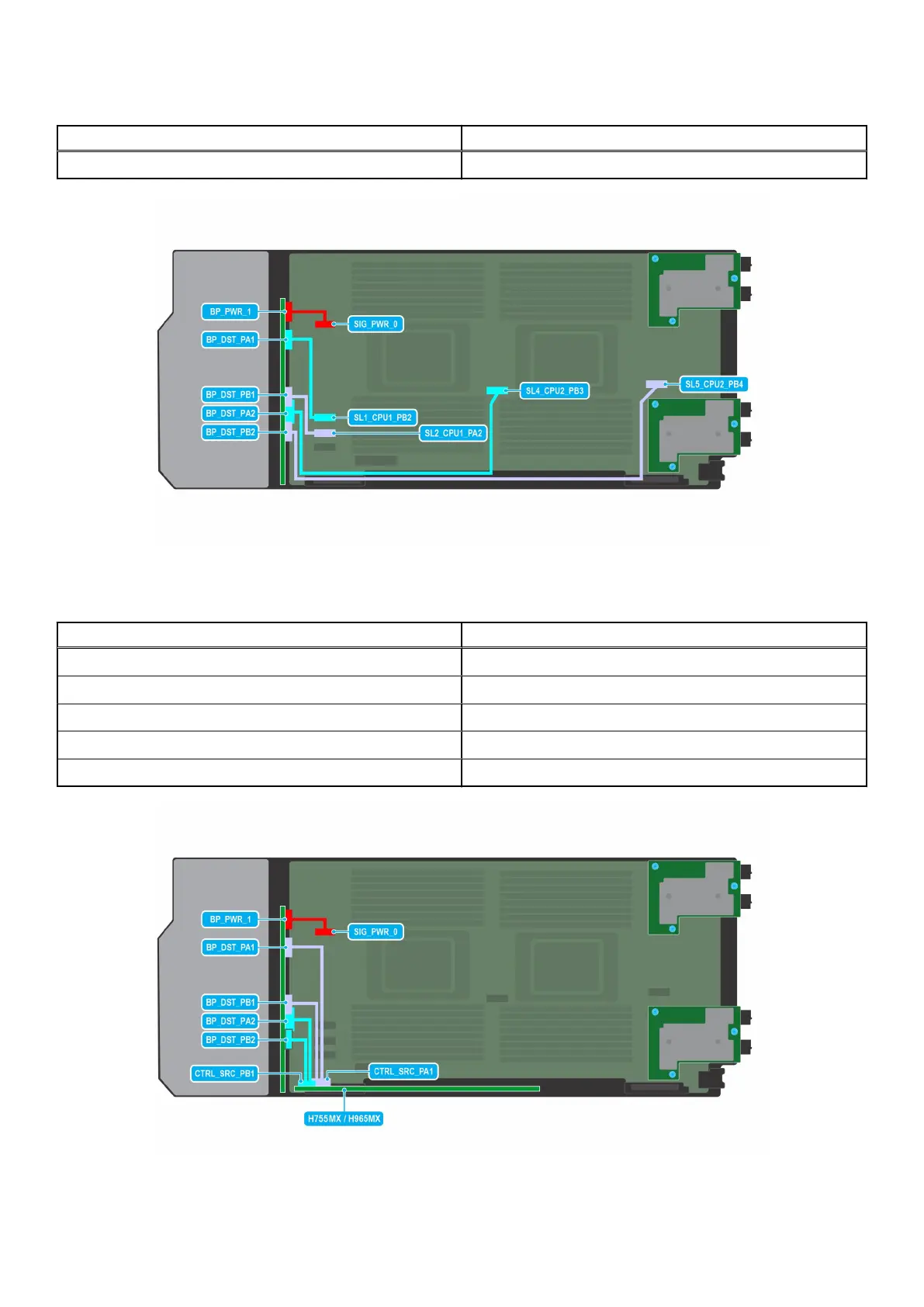

Figure 63. NVMe cabling diagram of configuration 13 - 8 x E3.s backplane
Table 59. Connector descriptions for NVMe
From To
BP_PWR_1 (backplane power connector) SIG_PWR_0 (system board power connector)
BP_DST_PA1 (PCIe cable connector ) SL1_CPU1_PB2(signal connector on the system board)
BP_DST_PB1 (PCIe cable connector) SL2_CPU1_PA2 (signal connector on the system board)
BP_DST_PA2 (PCIe cable connector ) SL4_CPU2_PB3 (signal connector on the system board)
BP_DST_PB2 (PCIe cable connector ) SL5_CPU2_PB4 (signal connector on the system board)
Figure 64. NVMe cabling diagram of configuration 14 - 8 x E3.s backplane with H755 MX or H965i MX
90
Installing and removing system components
