Dell PowerEdge R740xd - Front View of the System

Front view of the system
The front view displays the features available on the front of the system.

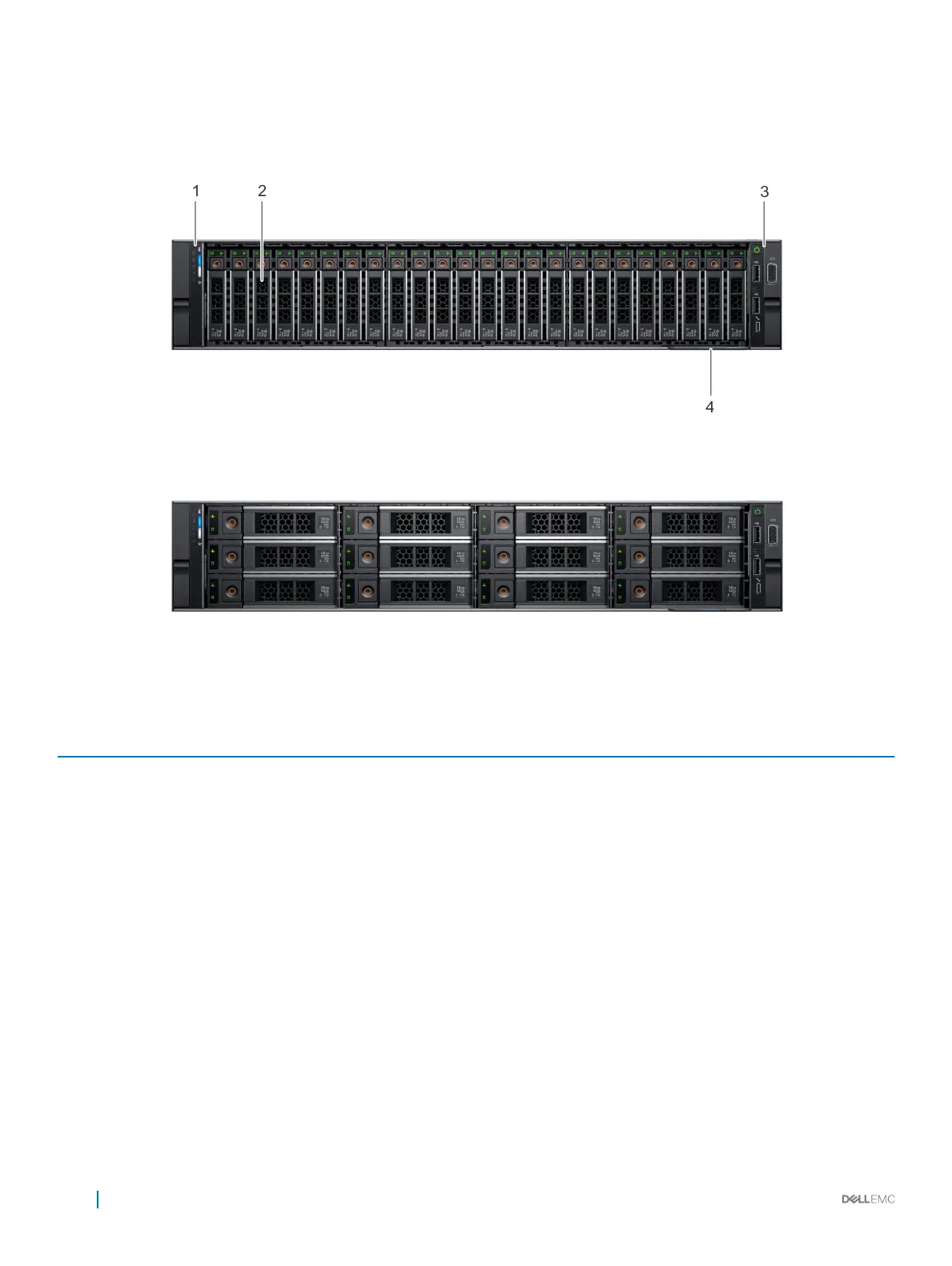

Figure 2. Front view of 24 x 2.5 inch drive system
Figure 3. Front view of 12 x 3.5 inch drive system
Table 1. Features available on the front of the system
Item Panels and slots Icon Description
1 Left control panel N/A Contains system health and system ID, status LED or optional iDRAC
Quick Sync 2 (wireless).
2 Drives N/A
Enable you to install drives that are supported on your system. For
more information about drives, see the Technical specications
section.
3 Right control panel N/A Contains the power button, VGA port, iDRAC Direct micro USB port
and two USB 2.0 ports.
4 Information tag N/A
The Information Tag is a slide-out label panel that contains system
information such as Service Tag, NIC, MAC address, and so on. If you
have opted for the secure default access to iDRAC, the Information
tag also contains the iDRAC secure default password.
