Dell PowerEdge R740xd - Installing Expansion Card into Expansion Card Riser

Related link
Removing the air shroud
Opening and closing the PCIe card holder latch
Installing expansion card into expansion card riser
Installing expansion card into expansion card riser
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 If installing a new expansion card, unpack it and prepare the card for installation.
NOTE: For instructions, see the documentation accompanying the card.
3 When installing a card into riser 2 or 3, open the PCIe card holder latch.
Steps
1 Pull the expansion card latch.
2 If installed, remove the ller bracket.
NOTE: Store the ller bracket for future use. Filler brackets must be installed in empty expansion card slots to maintain
Federal Communications Commission (FCC) certication of the system. The brackets also keep dust and dirt out of the
system and aid in proper cooling and airow inside the system.
3 Hold the card by its edges, and align the card edge connector with the expansion card connector on the riser.
4 Insert the card edge connector rmly into the expansion card connector until the card is fully seated.
5 Push the expansion card latch.

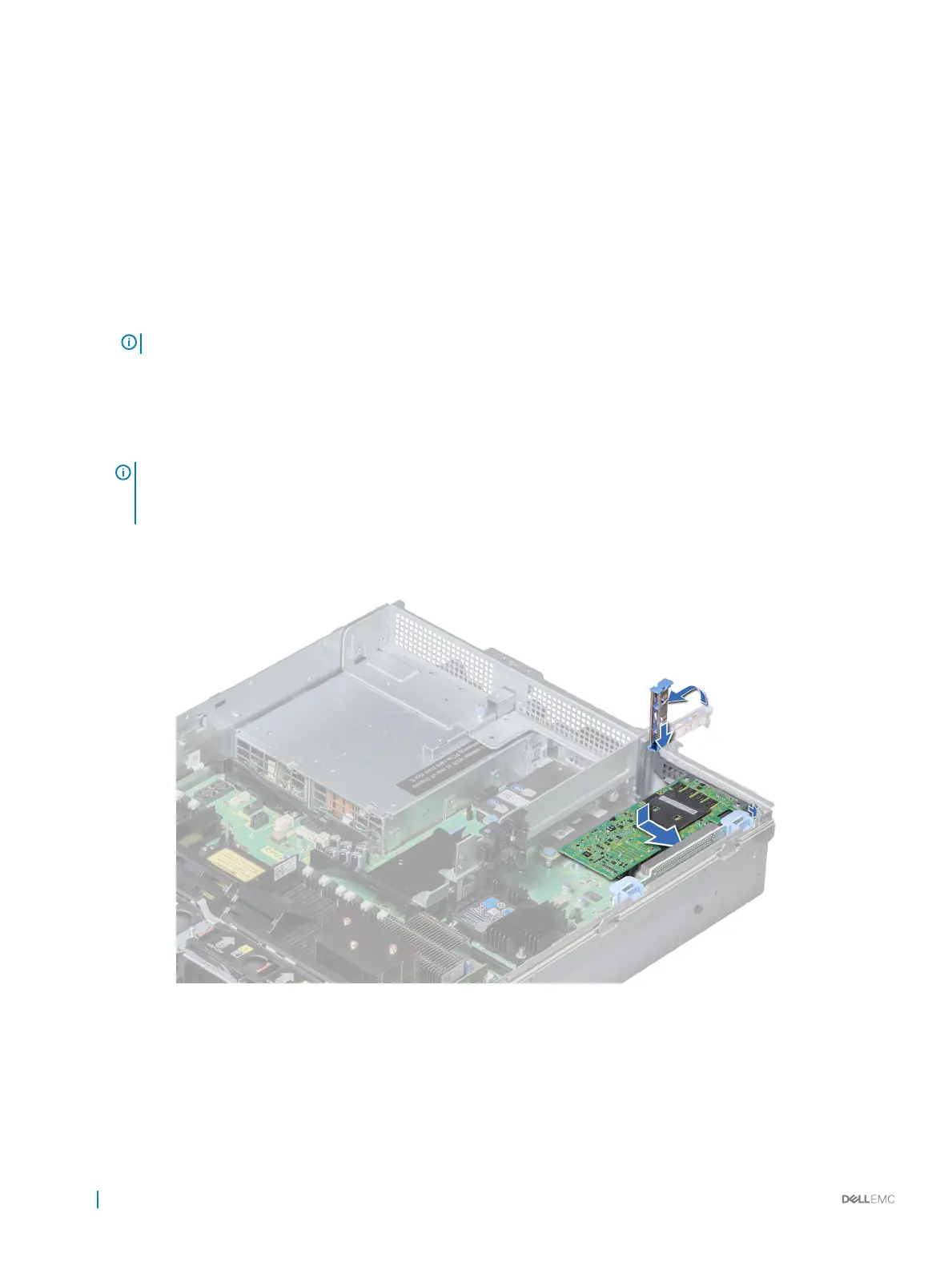

Figure 79. Installing expansion card into expansion card riser 1
