Dell PowerEdge R740xd - Installing Optional IDSDM or Vflash Card

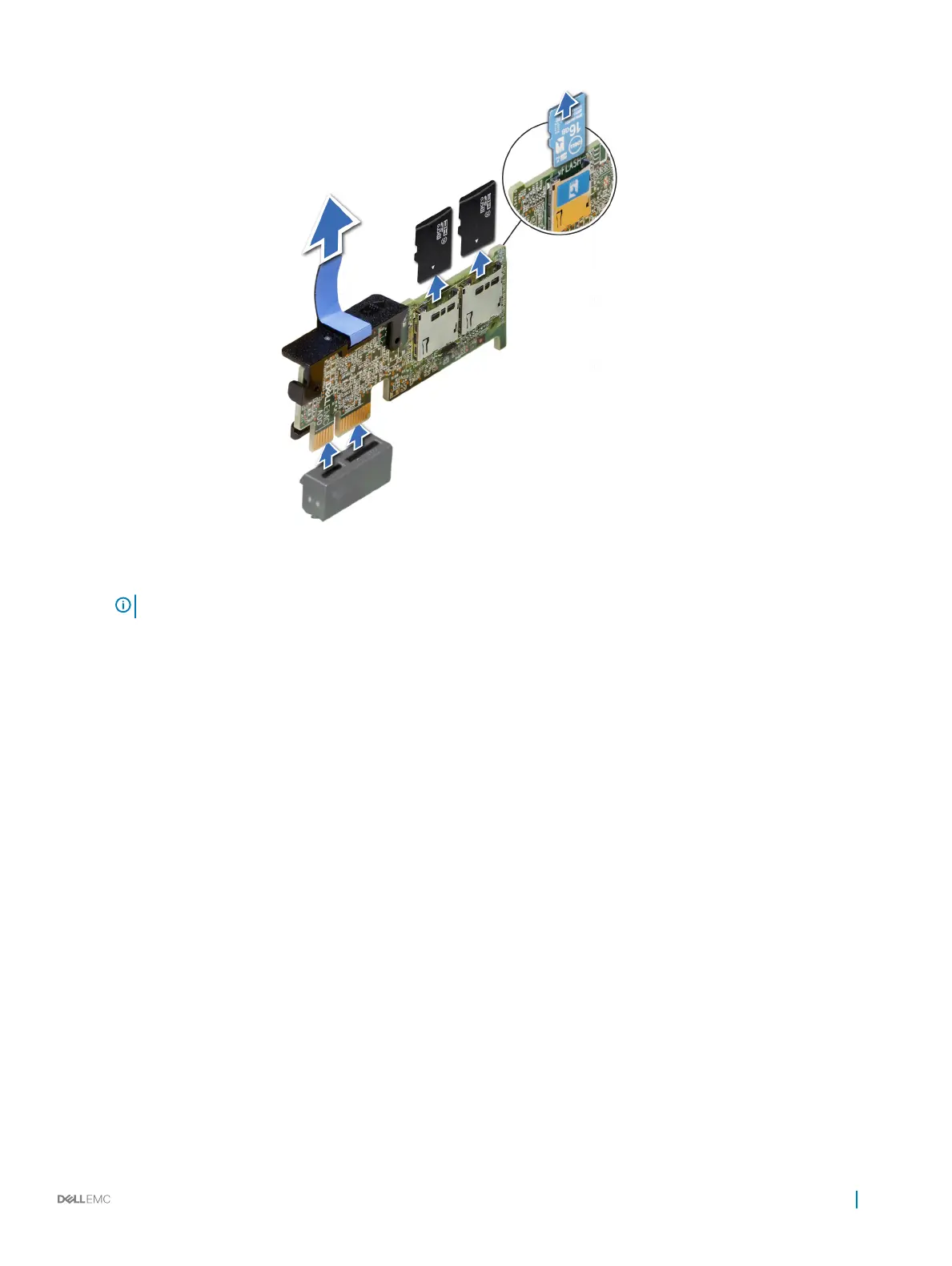

Figure 107. Removing the optional IDSDM/vFlash card
NOTE
: There are two dip switches on the IDSDM/vFlash card for write-protection.
Next step
Install the optional IDSDM/vFlash card.
Related link
Removing the expansion card from expansion card riser
Removing the micro SD card
Installing optional IDSDM or vFlash card
Installing optional IDSDM or vFlash card
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Locate the IDSDM/vFlash connector on the system board.
To locate IDSDM/vFlash, see the System board jumpers and connectors section.
2 Align IDSDM/vFlash card with the connector on the system board.
3 Push IDSDM/vFlash card until it is rmly seated on the system board.
Installing and removing system components
155
