Dell PowerEdge R740xd - Installing the MID Drive Tray

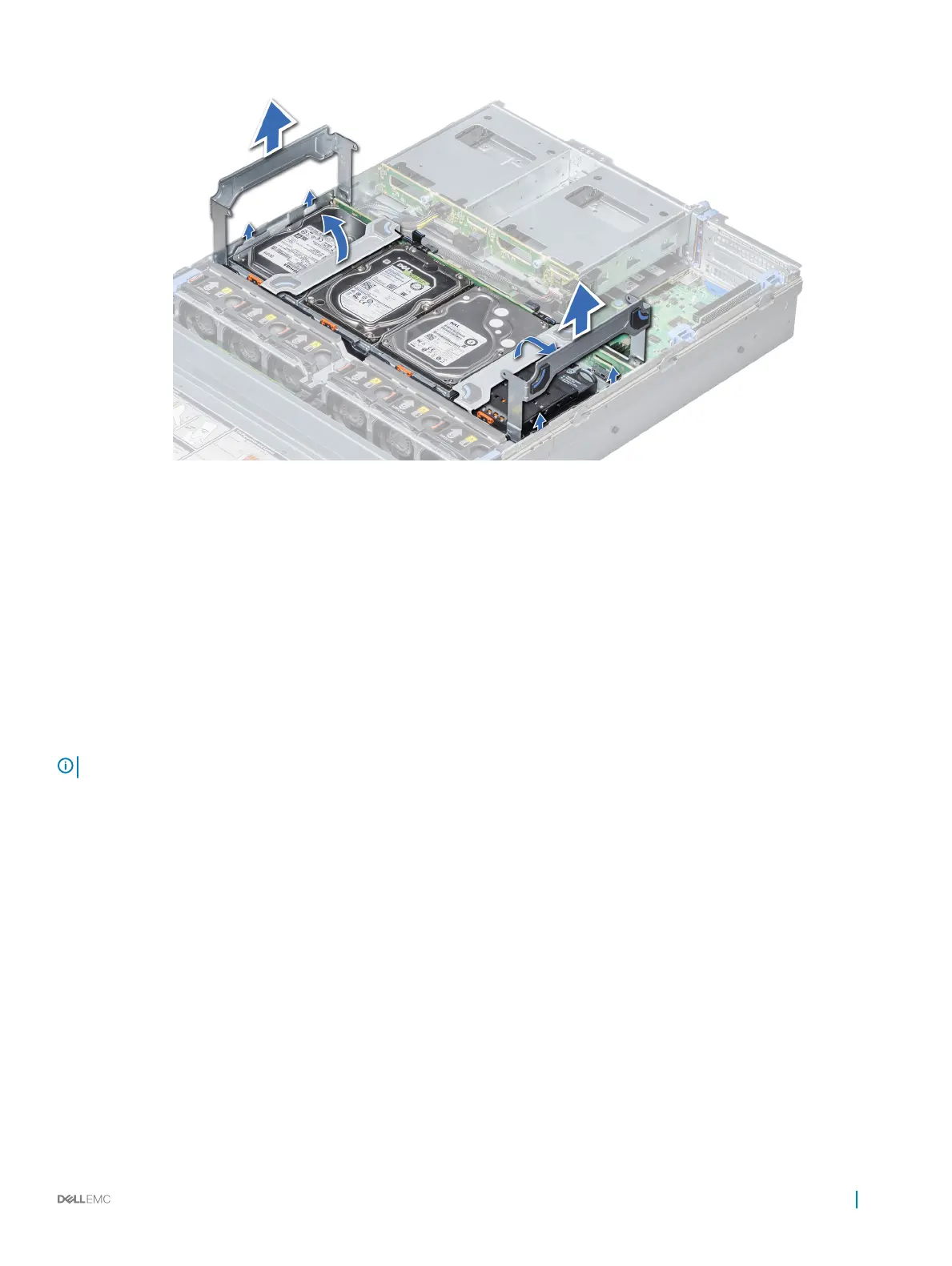

Figure 39. Removing mid drive tray
Next step
Install the mid drive tray.
Related link
Installing the mid drive tray
Installing the mid drive tray
Prerequisite
1 Follow the safety guidelines listed in Safety instructions.
NOTE
: Systems that support the internal drive tray support low-prole heat sinks and do not support an air shroud.
Steps
1 Lift the drive tray handles to 90 degrees upward.
2 Hold the drive tray handles, and align the slots on the drive tray with the guide pins on the system.
3 Lower the drive tray into the system.
4 Lower the drive tray handles to lock the drive tray in place.
