System board jumpers and connectors

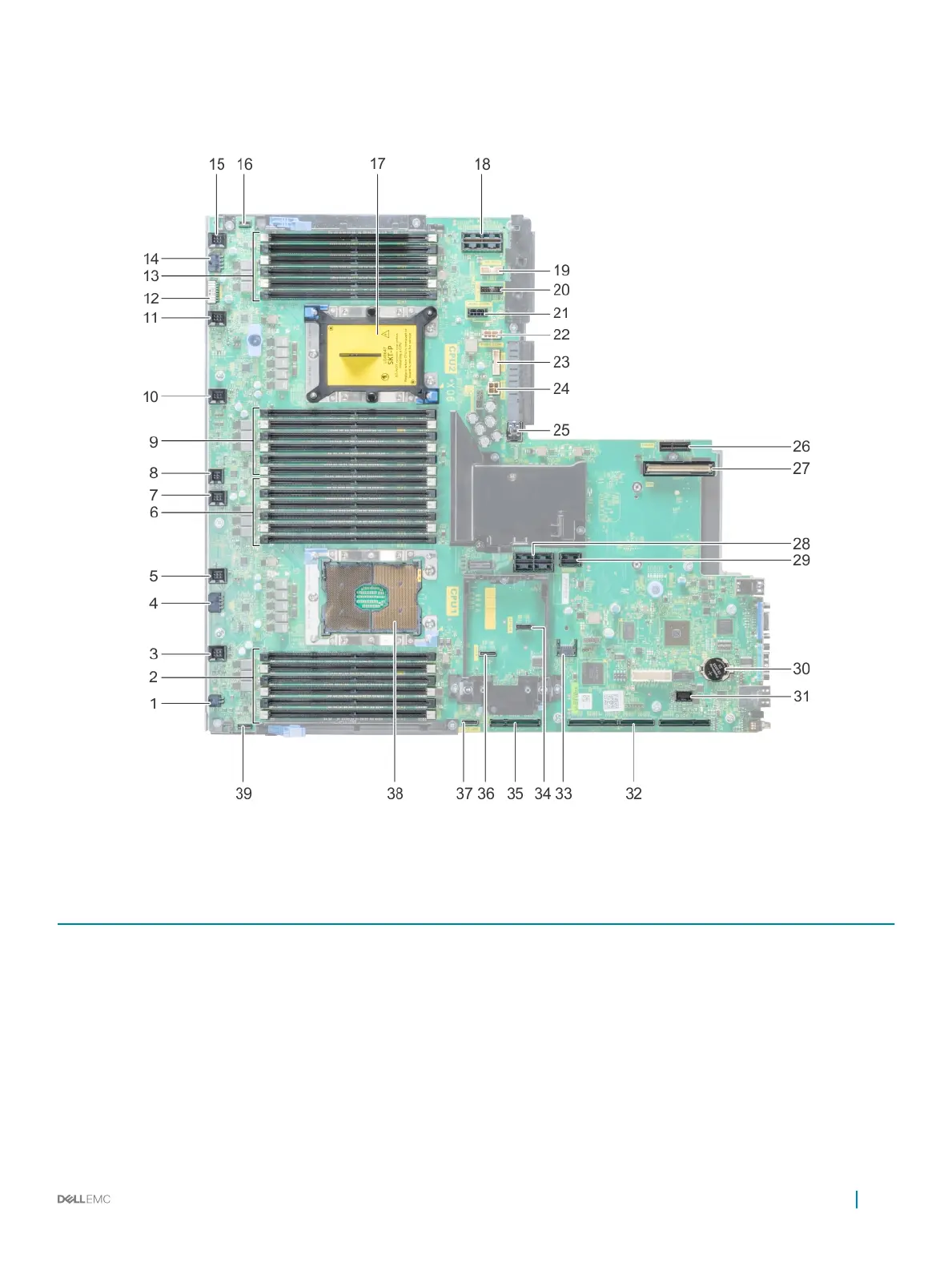

Figure 156. System board jumpers and connectors
Table 46. System board jumpers and connectors
Item Connector Description
1 J_ODD Optical drive power connector
2 A7, A1, A8, A2, A9, A3 Memory module sockets
3 J_FAN2U_6 Cooling fan 6 connector
4 J_BP3 Backplane 3 power connector
5 J_FAN2U_5 Cooling fan 5 connector
6 A6, A12, A5, A11, A4, A10 Memory module sockets
7 J_FAN2U_4 Cooling fan 4 connector
