Dell PowerEdge R740xd - Installing a 3.5 Inch Adapter into a 3.5 Inch Drive Carrier

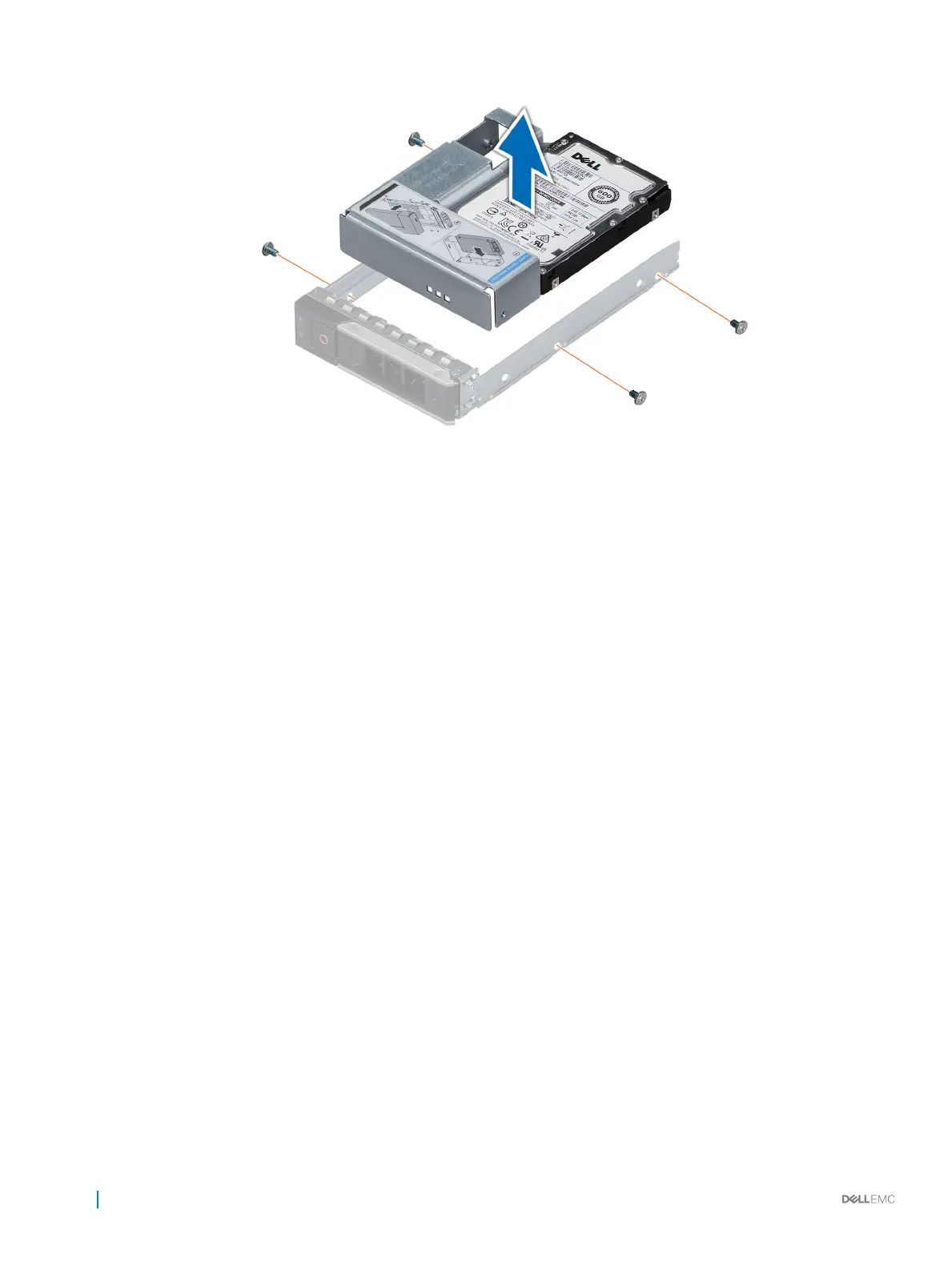

Figure 53. Removing a 3.5 inch adapter from a 3.5 inch drive carrier
Next step
Install a 3.5 inch adapter into a 3.5 inch drive carrier.
Installing a 3.5 inch adapter into a 3.5 inch drive carrier
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Insert the 3.5 inch drive adapter into the drive carrier with the connector end of the drive toward the back of the drive carrier.
2 Align the screw holes on the drive with the holes on the drive carrier.
3 Install the screws to secure the drive to the drive carrier.
