Removing the left control panel
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 Remove the cooling fan assembly.
4 Remove the air shroud.
NOTE: Ensure that you note the routing of the cables as you remove them from the system board. You must route the
cables properly when you replace them to prevent the cables from being pinched or crimped.
Steps
1 Pull the cable latch and disconnect the control panel cable from the system board connector.
2 Using Phillips #1 screwdriver, remove the screws to remove the cable cover, which secure the control panel and cable tube to the
system.
3 Holding the control panel and cable tube by its sides, remove the control panel and cable tube away from the system.

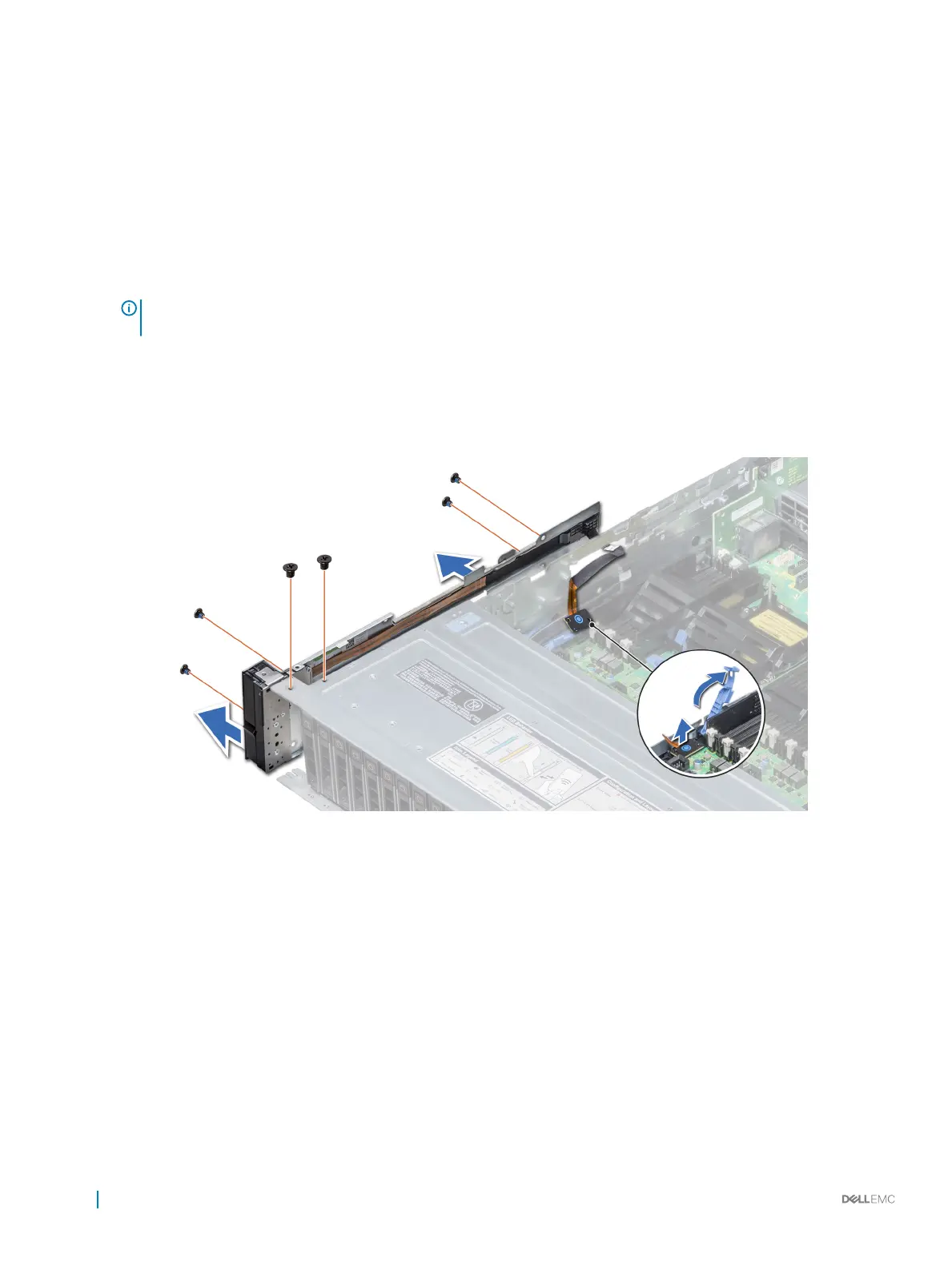

Figure 152. Removing left control panel
Next step
Install the left control panel.
