Dell PowerEdge R740xd - Installing a 2.5 Inch Drive into the 3.5 Inch Drive Adapter

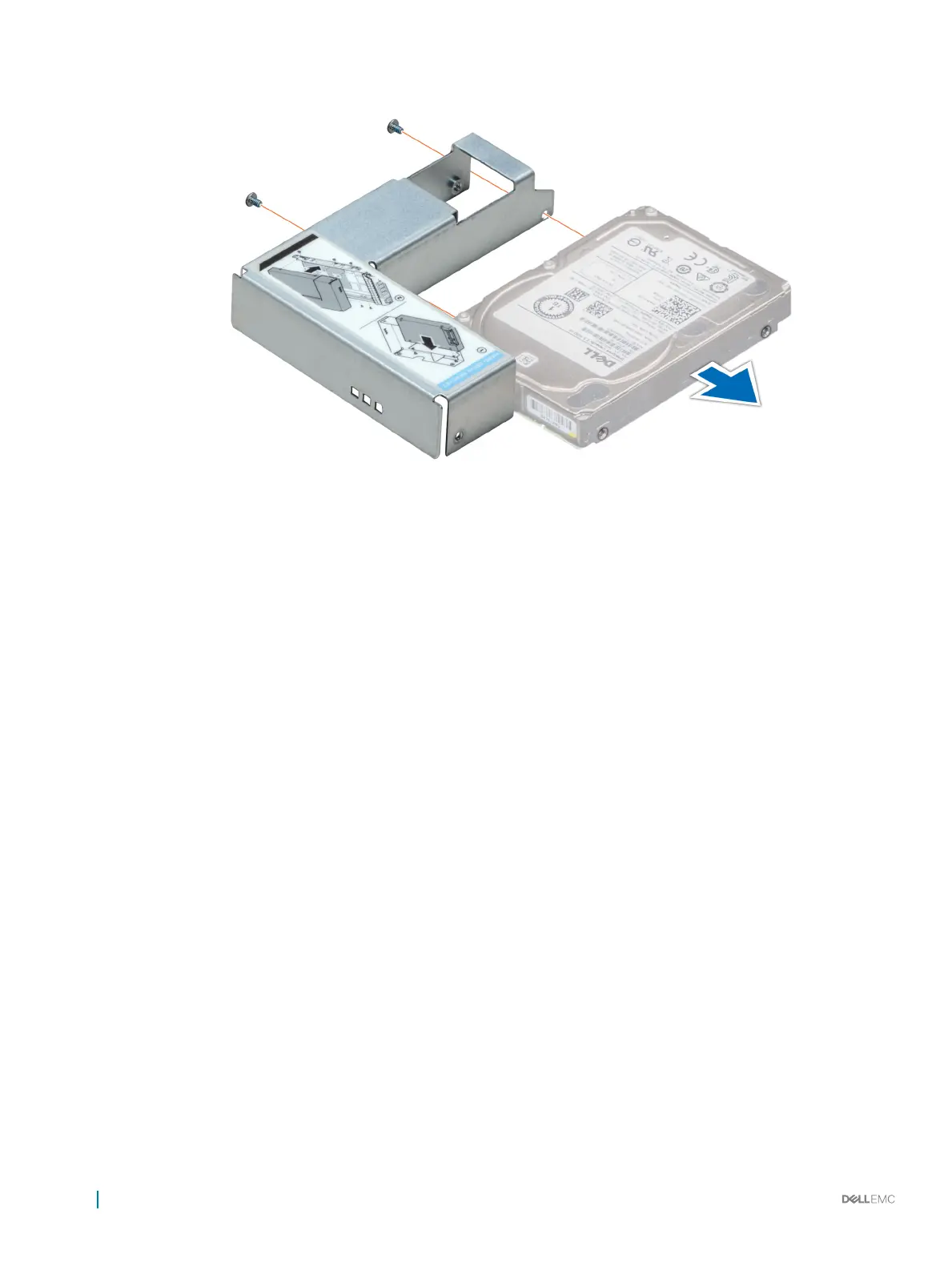

Figure 51. Removing a 2.5 inch drive from the 3.5 inch drive adapter
Next step
Install a 2.5 inch drive into the 3.5 inch drive adapter.
Installing a 2.5 inch drive into the 3.5 inch drive adapter
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the screw holes on the 2.5 inch drive with the screw holes on the 3.5 inch drive adapter.
2 Using a Phillips #2 screwdriver, install the screws to secure the drive to the 3.5 inch drive adapter.
102
Installing and removing system components
