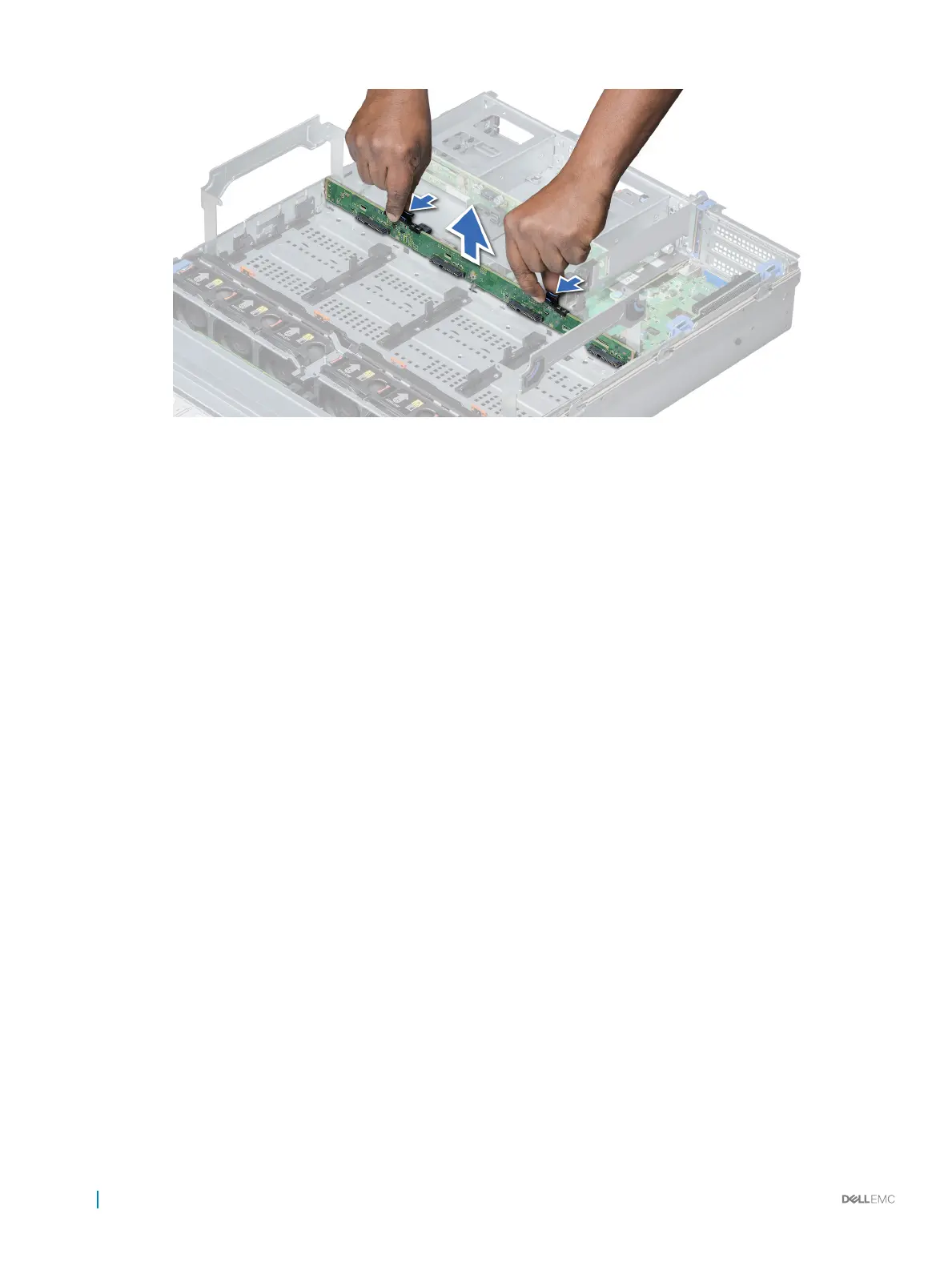

Figure 123. Removing drive backplane (mid)
Next step
Install the mid drive backplane.
Related link
Removing drive carrier from the mid drive tray
Installing drive backplane (mid)
Installing drive backplane (mid)
The procedure to install the backplane is identical for 2.5 and 3.5 inch congurations.
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Step
Align the drive backplane with the guide pin on the system and lower the drive backplane into the system until it is rmly seated.
166
Installing and removing system components
