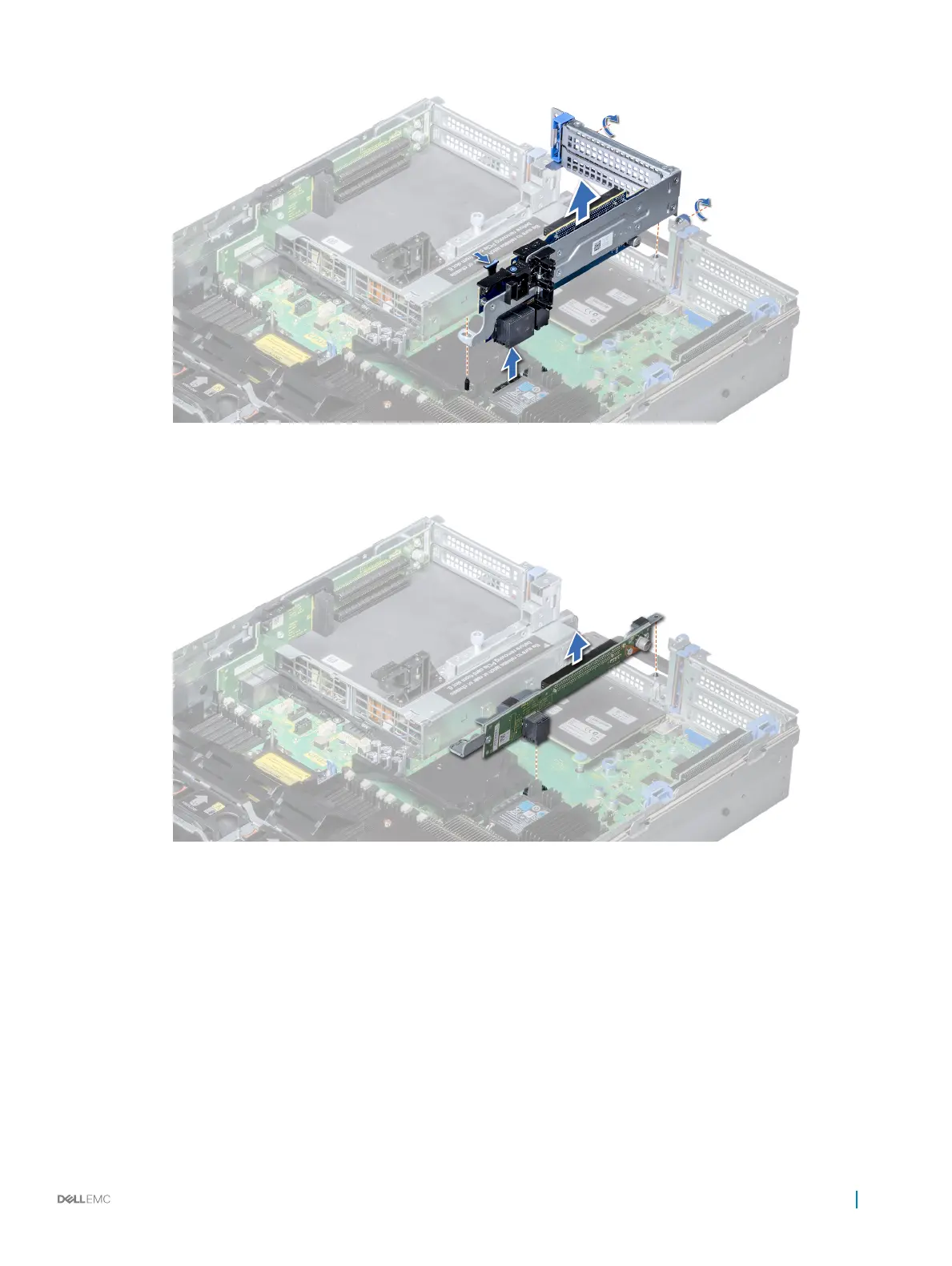

Figure 89. Removing expansion card riser 2A
2 To remove expansion card riser 2B or 2C, hold the riser by its edges and lift the riser from the riser connector on the system board.
Figure 90. Removing expansion card riser 2
Next step
Install the expansion card riser 2.
Related link
Removing the expansion card from expansion card riser
Removing the air shroud
Installing expansion card riser 2
Installing expansion card riser 2
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Installing and removing system components
141
