CAUTION: To avoid damage to the battery connector, you must rmly support the connector while installing or
removing a battery.
2 Use a plastic scribe to pry out the system battery as shown in the following illustration:

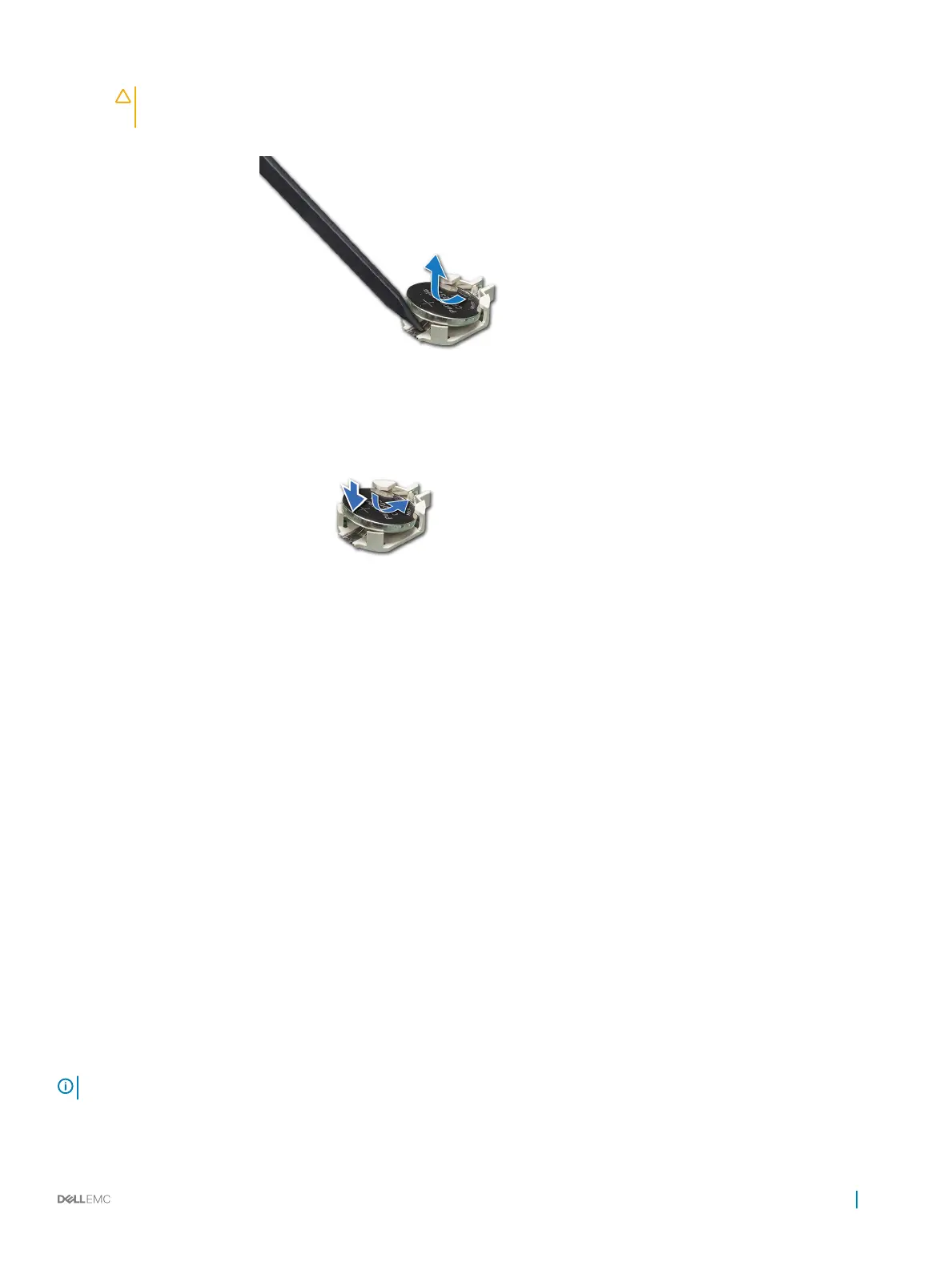

Figure 143. Removing the system battery
3 To install a new system battery, hold the battery with the positive side facing up and slide it under the securing tabs.
4 Press the battery into the connector until it snaps into place.
Figure 144. Installing the system battery
Next steps
1 Install the expansion card riser 1A.
2 If applicable, connect the cables to the expansion card(s).
3 If applicable, open the PCIe card holder latch on the air shroud to secure the full length expansion card.
4 Follow the procedure listed in After working inside your system.
5 While booting, press F2 to enter the System Setup and ensure that the battery is operating properly.
6 Enter the correct time and date in the System Setup Time and Date elds.
7 Exit the System Setup.
Related link
Opening and closing the PCIe card holder latch
Removing expansion card riser 1
Installing expansion card riser 1
Internal USB memory key (optional)
An optional USB memory key can be installed in the internal USB 3.0 port and can be used as a boot device, security key or mass storage
device.
The internal USB port is on the system board.
NOTE
: To locate the internal USB port on the system board, see the System board jumpers and connectors section.
Related link
System board jumpers and connectors
