Dell PowerEdge R740xd - Installing Expansion Card Riser 1

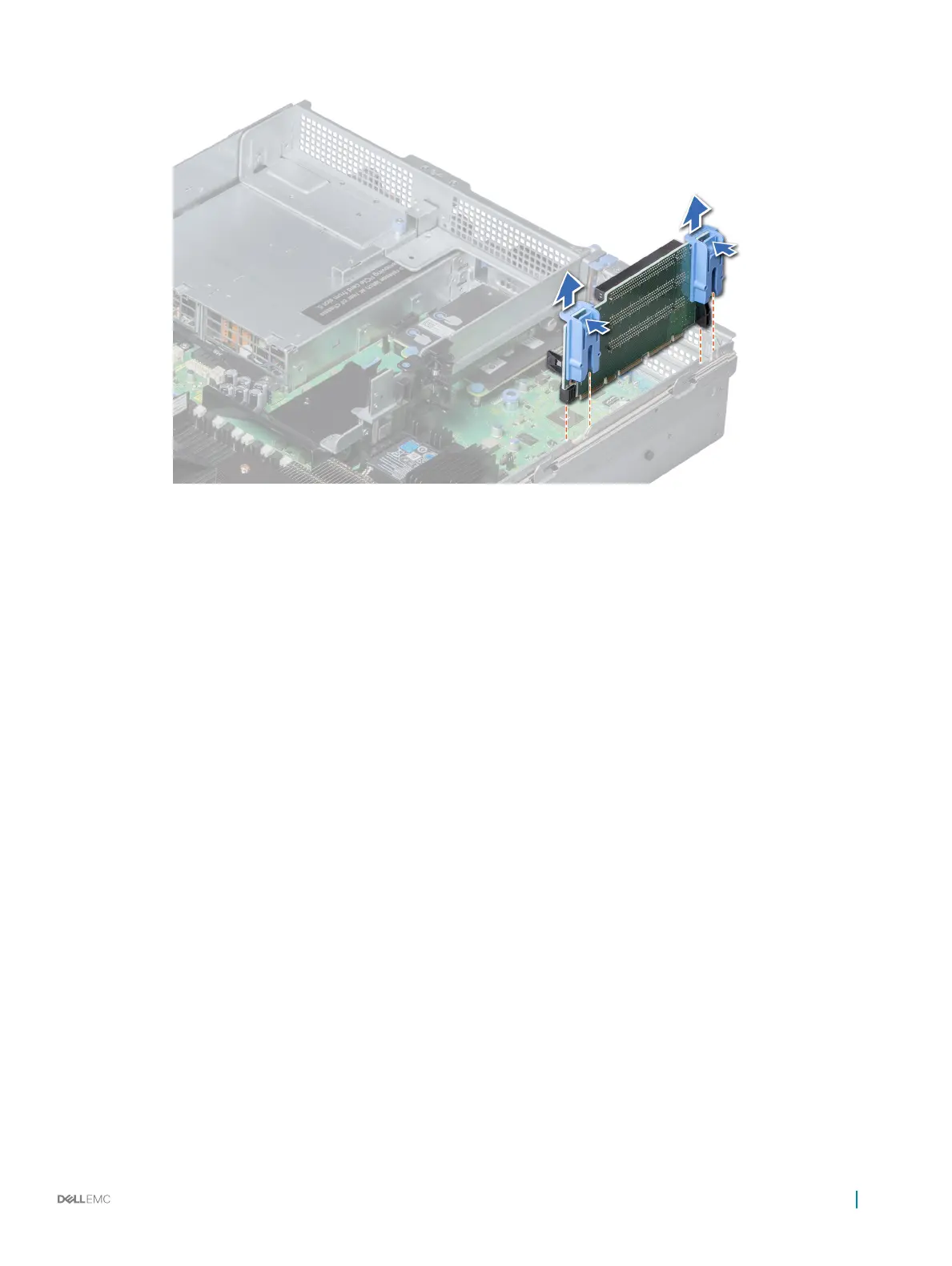

Figure 87. Removing expansion card riser 1
Next step
Install the expansion card riser 1.
Related link
Removing the expansion card from expansion card riser
Installing expansion card riser 1
Installing expansion card riser 1
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the guide rails on the riser with the standos on the side of the system.
2 Lower the riser into the system until the riser connector engages with the connector on the system board.
Installing and removing system components
139
