Dell PowerEdge R740xd - Installing the Backplane Cover

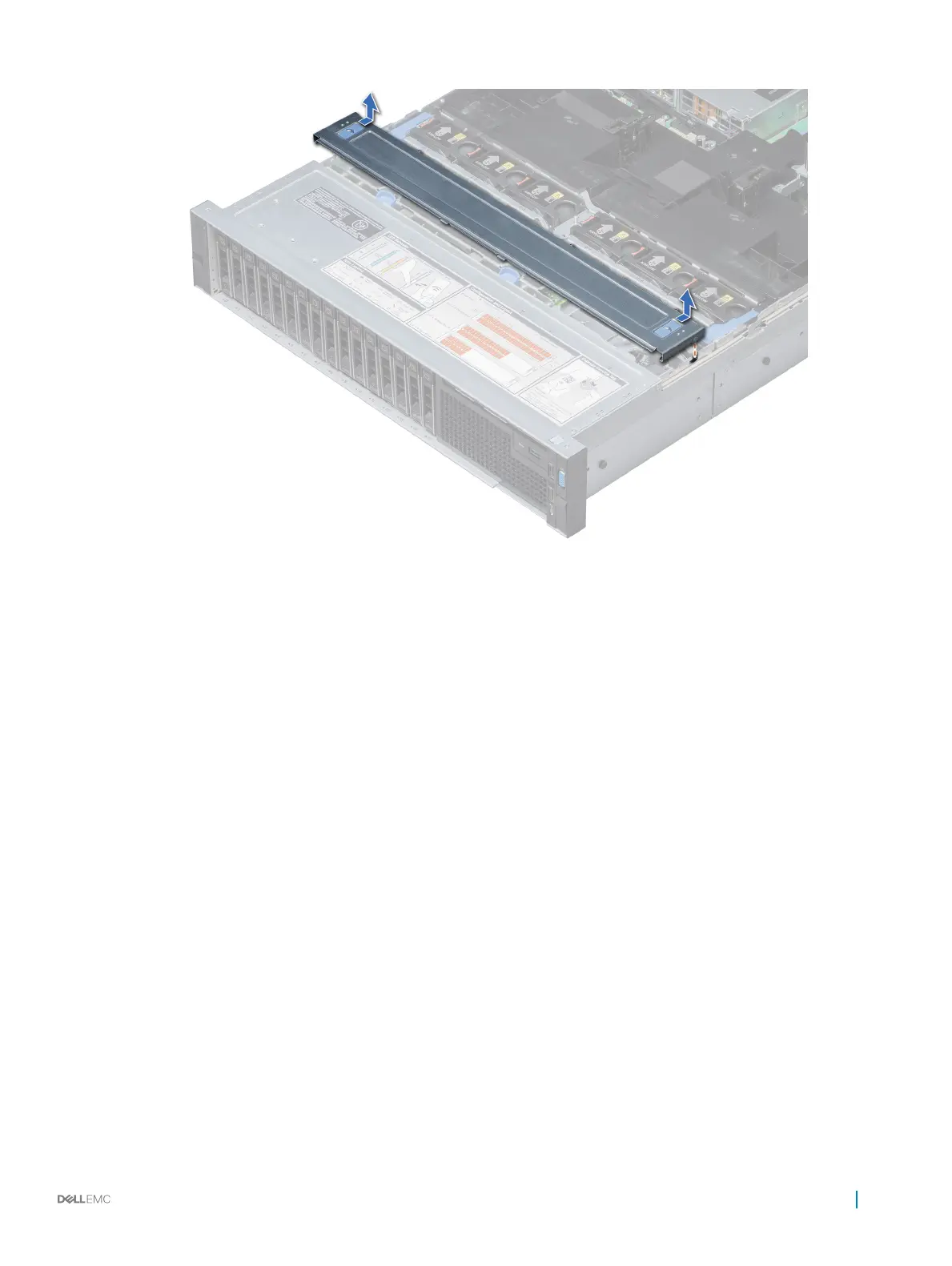

Figure 21. Removing backplane cover
Installing the backplane cover
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the backplane cover with the guide slots on the system.
2 Slide the backplane cover toward the front of the system until the cover locks into place.
Installing and removing system components
71
