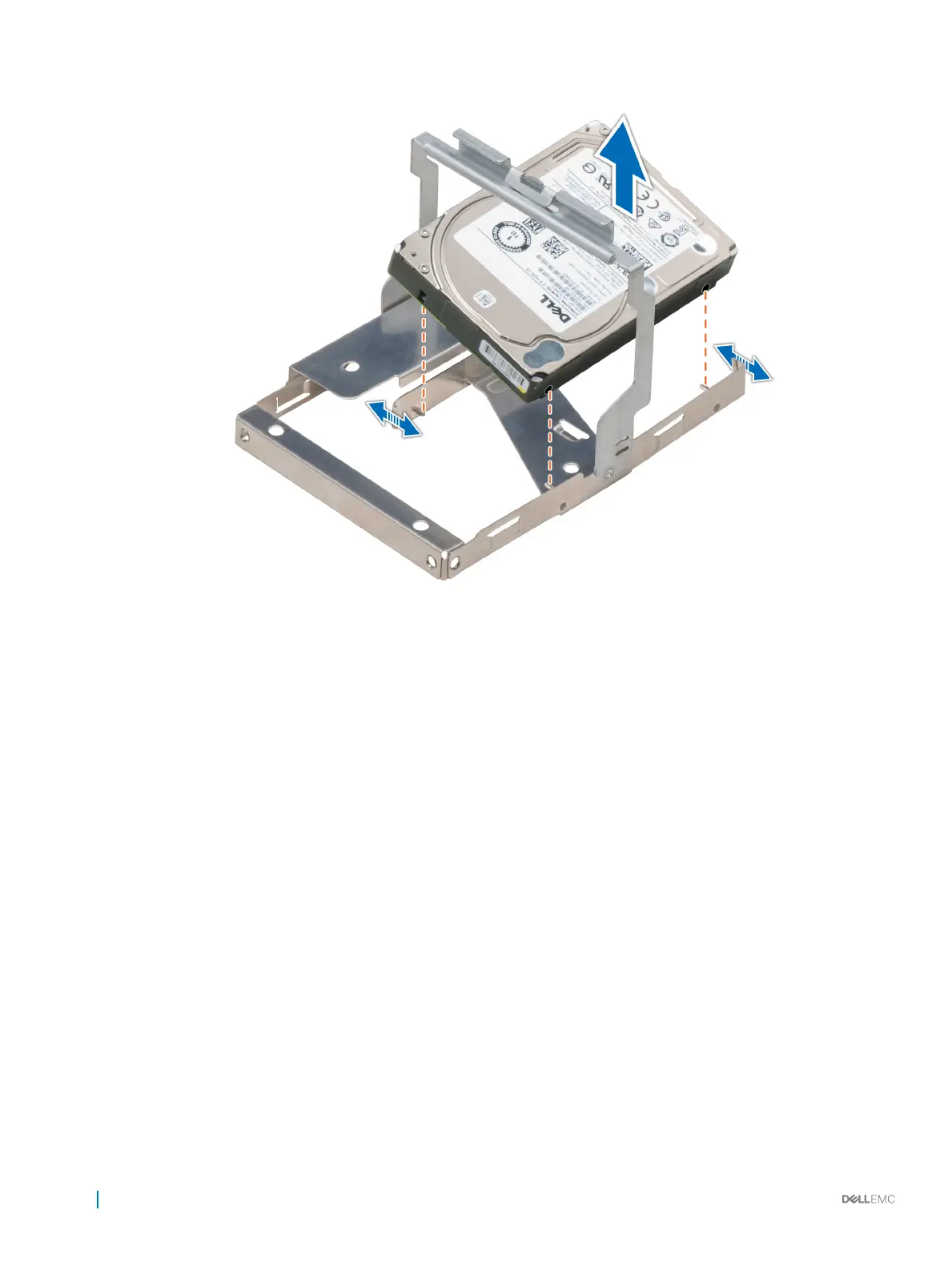

Figure 45. Removing a 2.5 inch drive from the 3.5 inch mid drive carrier
Next step
Install a 2.5 inch drive into the 3.5 inch mid drive carrier.
Installing a 2.5 inch drive into the 3.5 inch mid drive carrier
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Align the tabs on the drive carrier with the slots on the drive.
2 Pull the edges of the carrier to t over the drive.
3 Lower the drive carrier onto the drive to secure it.
96
Installing and removing system components
