Cable routing

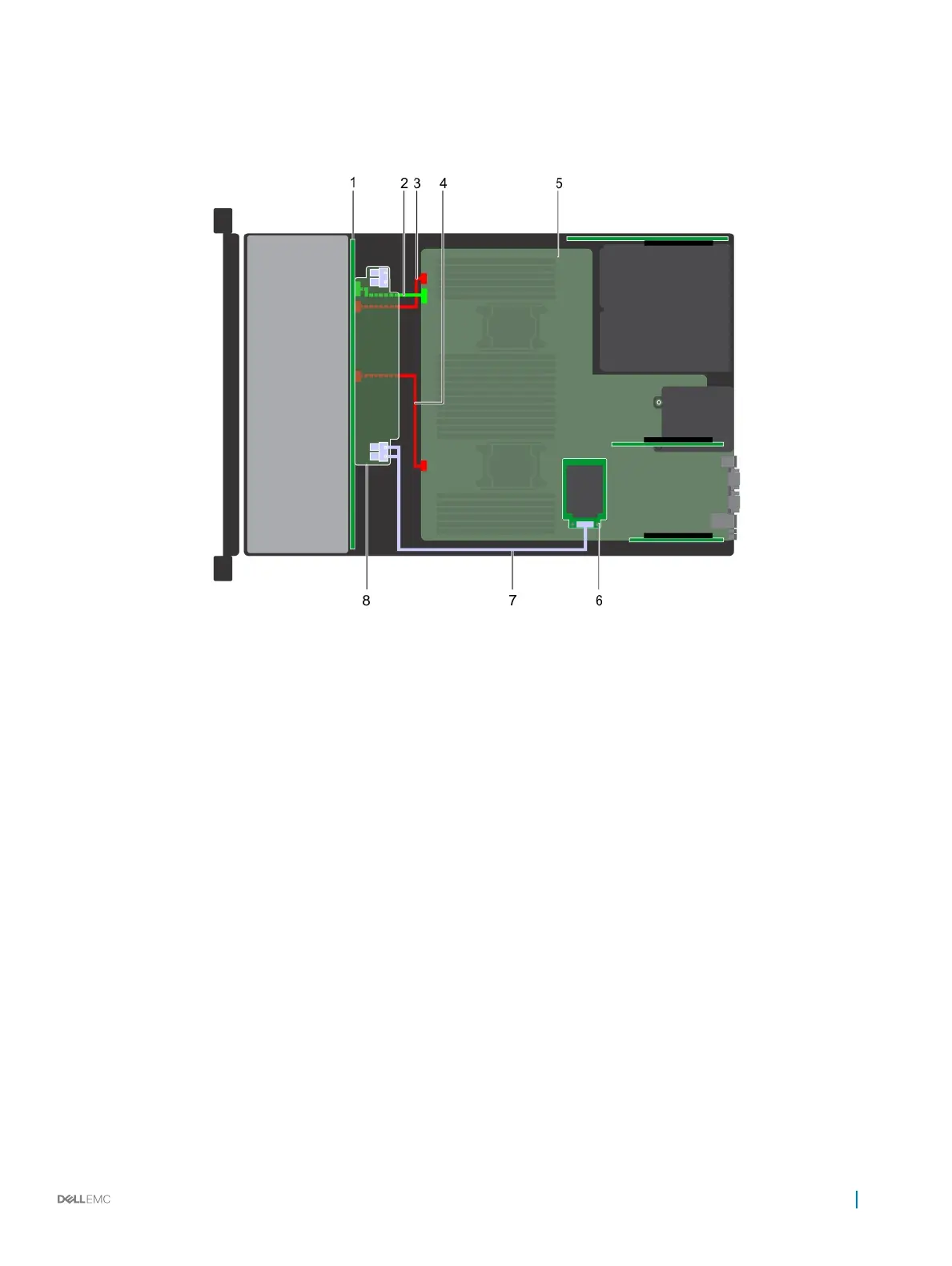

Figure 129. Cable routing – 24 x 2.5 inch drive backplane with mini PERC
1
backplane 2 backplane signal cable
3 backplane power cable A 4 backplane power cable B
5 system board 6 mini PERC
7 SAS cable 8 backplane expander
