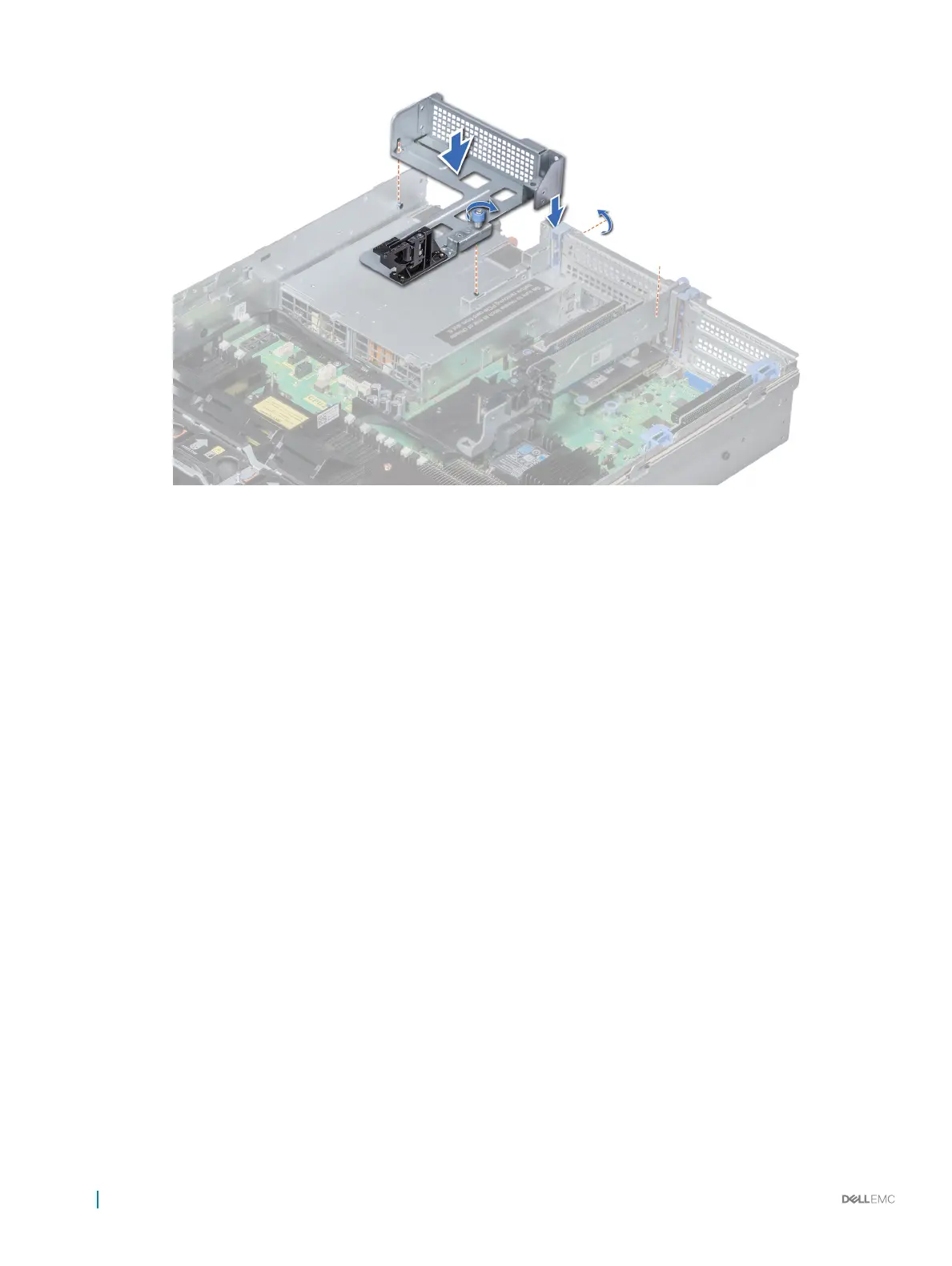

Figure 86. Installing riser 3 blank
Next step
Follow the procedure listed in After working inside your system.
Removing expansion card riser 1
Prerequisites
1 Follow the safety guidelines listed in Safety instructions.
2 Follow the procedure listed in Before working inside your system.
3 If installed, remove the expansion cards from the riser.
4 Disconnect any cables connected to the riser.
Step
Press the release latches, and lift the riser from the riser connector on the system board.
138
Installing and removing system components
