Installing integrated storage controller card
Prerequisite
Follow the safety guidelines listed in Safety instructions.
Steps
1 Hold the interposer board by its edges, and align the interposer board connector with the connector on the system board.
2 Press the touch point on the interposer board until the interposer board connector is rmly seated on the system board connector.
3 Angle the card to engage the card with the integrated storage controller card holder on the system board.
4 Lower the card into place until the card is fully seated in the integrated storage controller card holder.

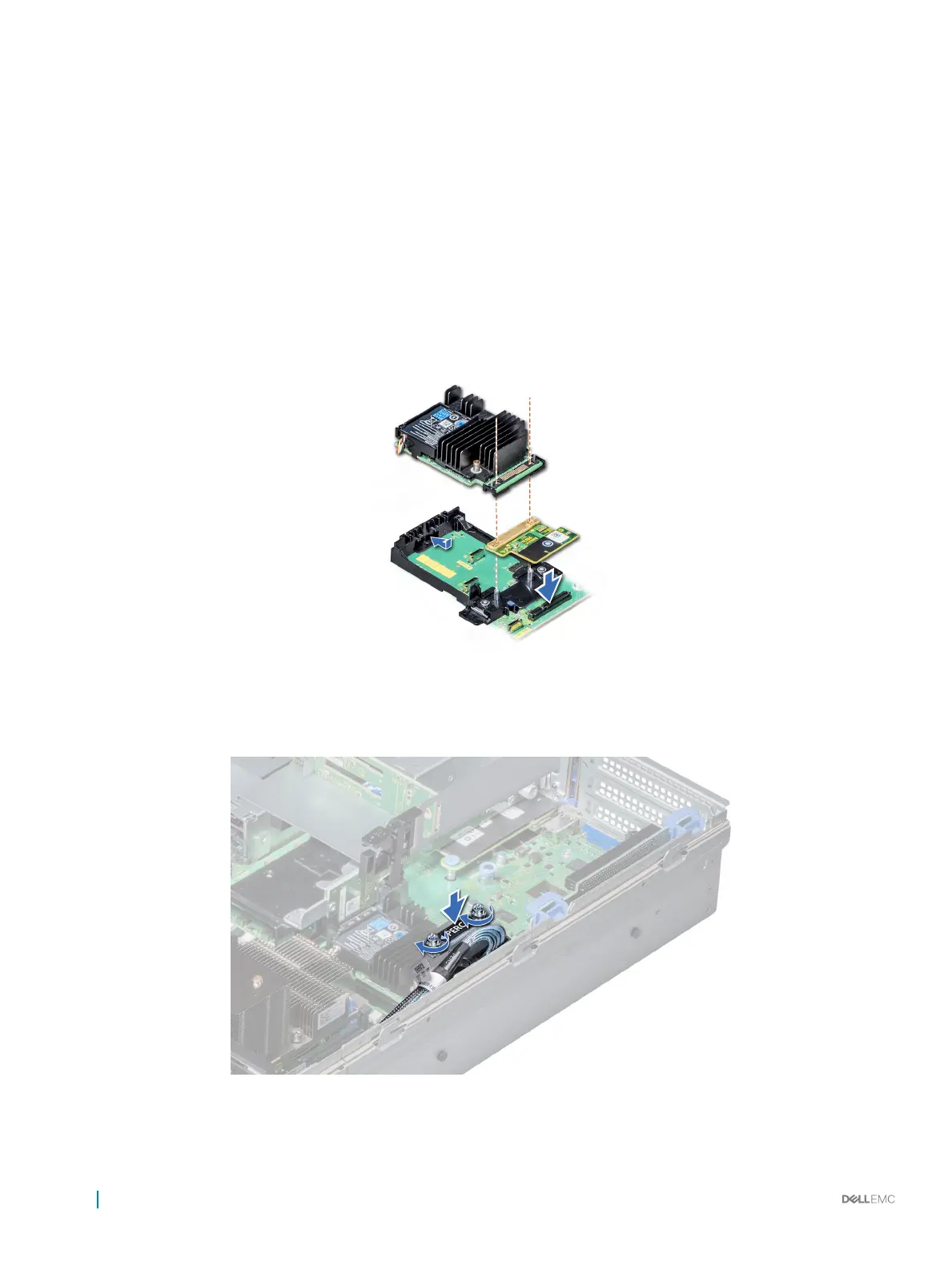

Figure 113. Installing integrated storage controller card
5 Align the screws on the integrated storage controller card cable with the screw holes on the system board.
6 Using Phillips #2 screwdriver, tighten the screws to secure the integrated storage controller card cable to the system board.
Figure 114. Installing integrated storage controller card cable
160
Installing and removing system components
