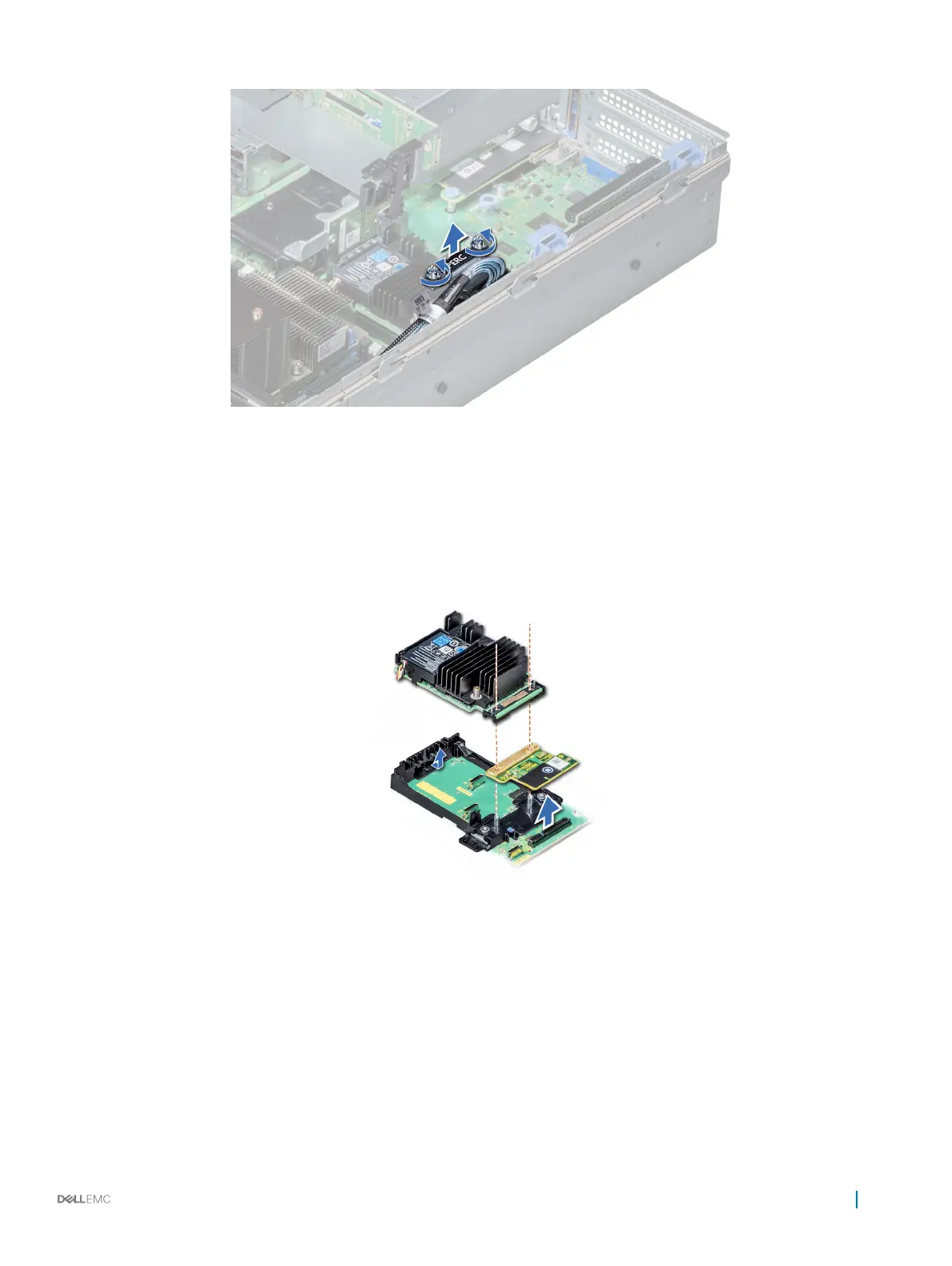

Figure 111. Removing integrated storage controller cable
3 Lift one end of the card and angle it to disengage the card from the integrated storage controller card holder on the system board.
4 Lift the card out of the system.
5 Hold the interposer board by its edges, and pull the board until the connector on the board disengages from the connector on the
system board.
Figure 112. Removing integrated storage controller card
Next step
Install the integrated storage controller card.
Related link
Removing the air shroud
Removing expansion card riser 1
Installing integrated storage controller card
