Steps
1 Use the hooks on the rear drive cage as guides to align the drive backplane.
2 Lower the backplane into the system until it is rmly seated.
3 Using Phillips #2 screwdriver, replace the screws to secure the backplane to the rear drive cage.

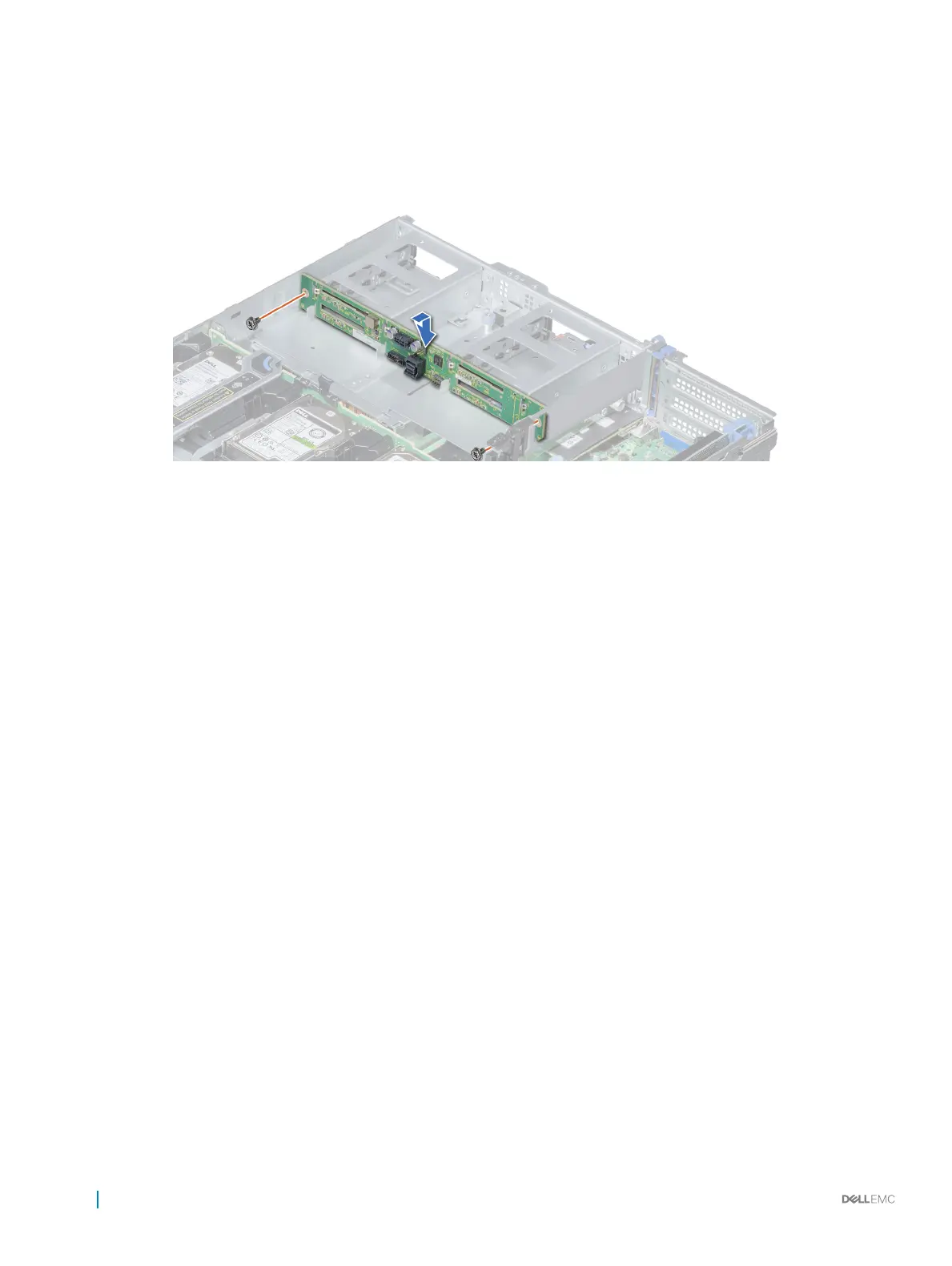

Figure 128. Installing 2.5 inch drive backplane (rear)
Next steps
1 Install all the drives.
2 Connect all the cables to the backplane.
3 Follow the procedure listed in After working inside your system.
Related link
Installing a drive carrier
