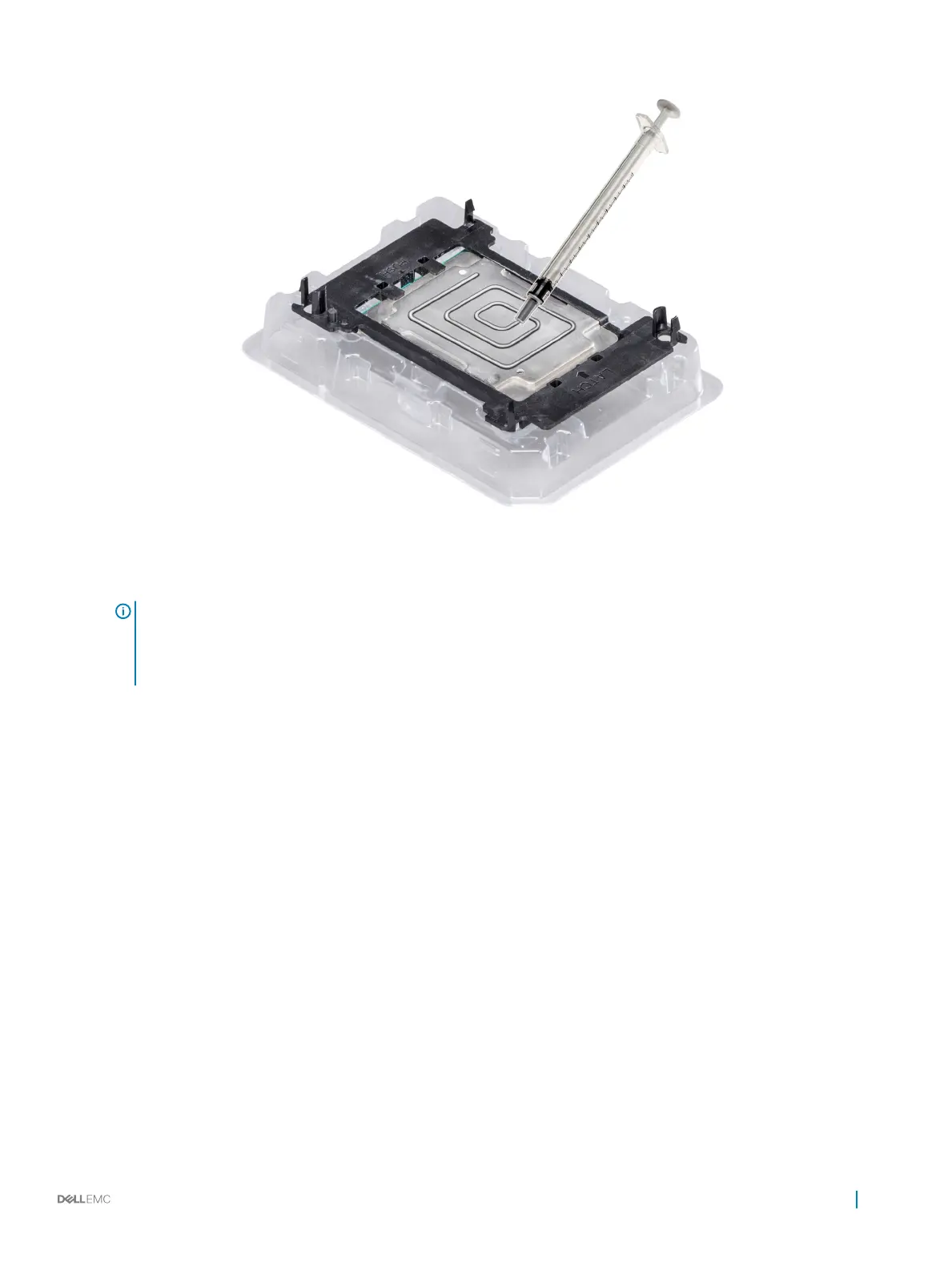

Figure 69. Applying thermal grease on top of the processor
5 Place the heat sink on the processor and push down until the bracket locks onto the heat sink.
NOTE
:
• Ensure that the two guide pin holes on the bracket match the guide holes on the heat sink.
• Ensure that the pin 1 indicator on the heat sink is aligned with the pin 1 indicator on the bracket before placing the heat
sink onto the processor and bracket.
Installing and removing system components 121
