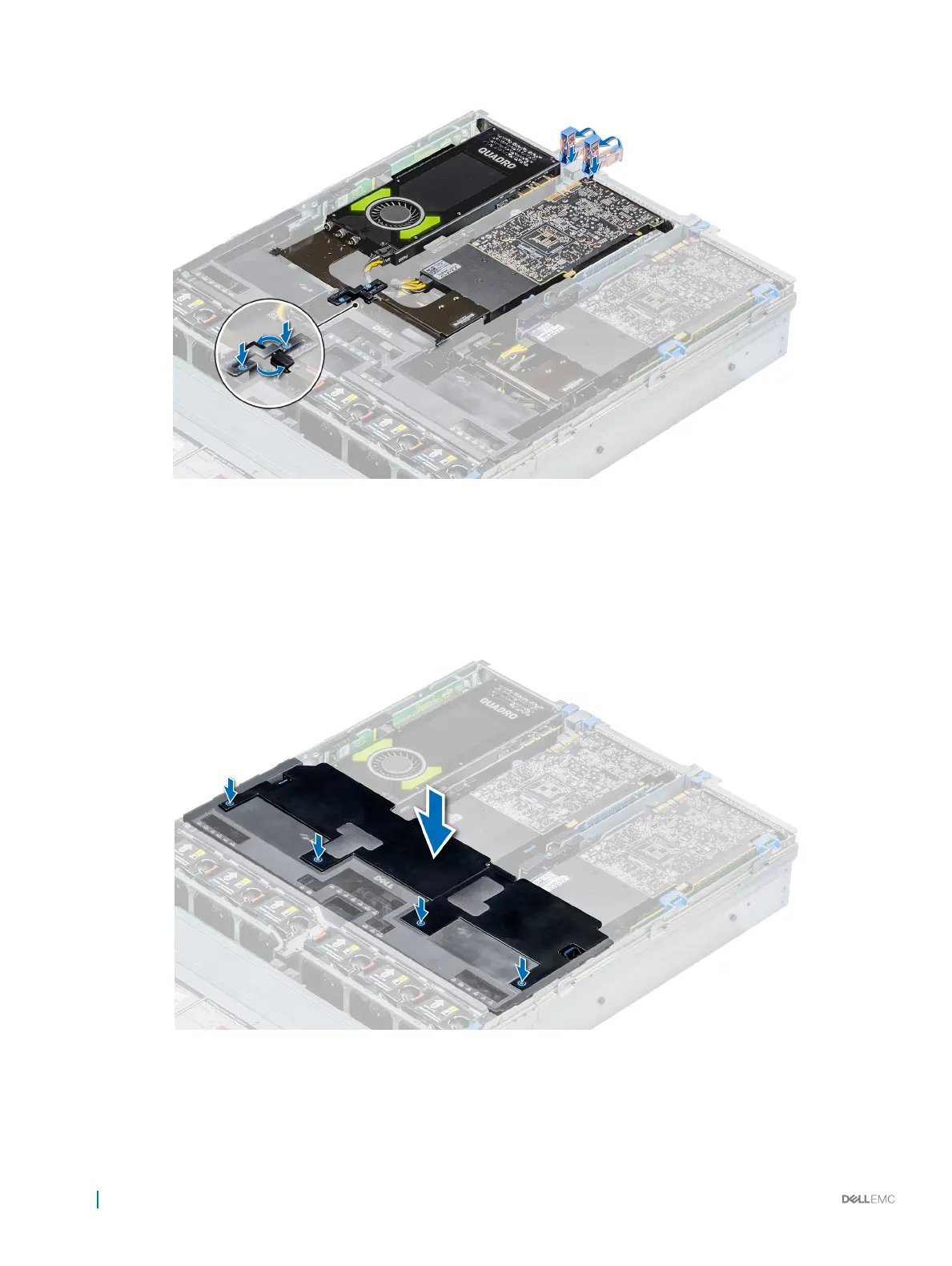

Figure 104. Securing GPU 2 and 3
Next steps
1 Install the top cover of the GPU air shroud.
If available, remove the plastic cover xed on the memory socket numbers marked on the air shroud.
Figure 105. Installing the top cover of GPU air shroud
2 To install mylar foam on the system cover:
a Place the system cover with the Service Information Label (SIL) side facing up.
152
Installing and removing system components
