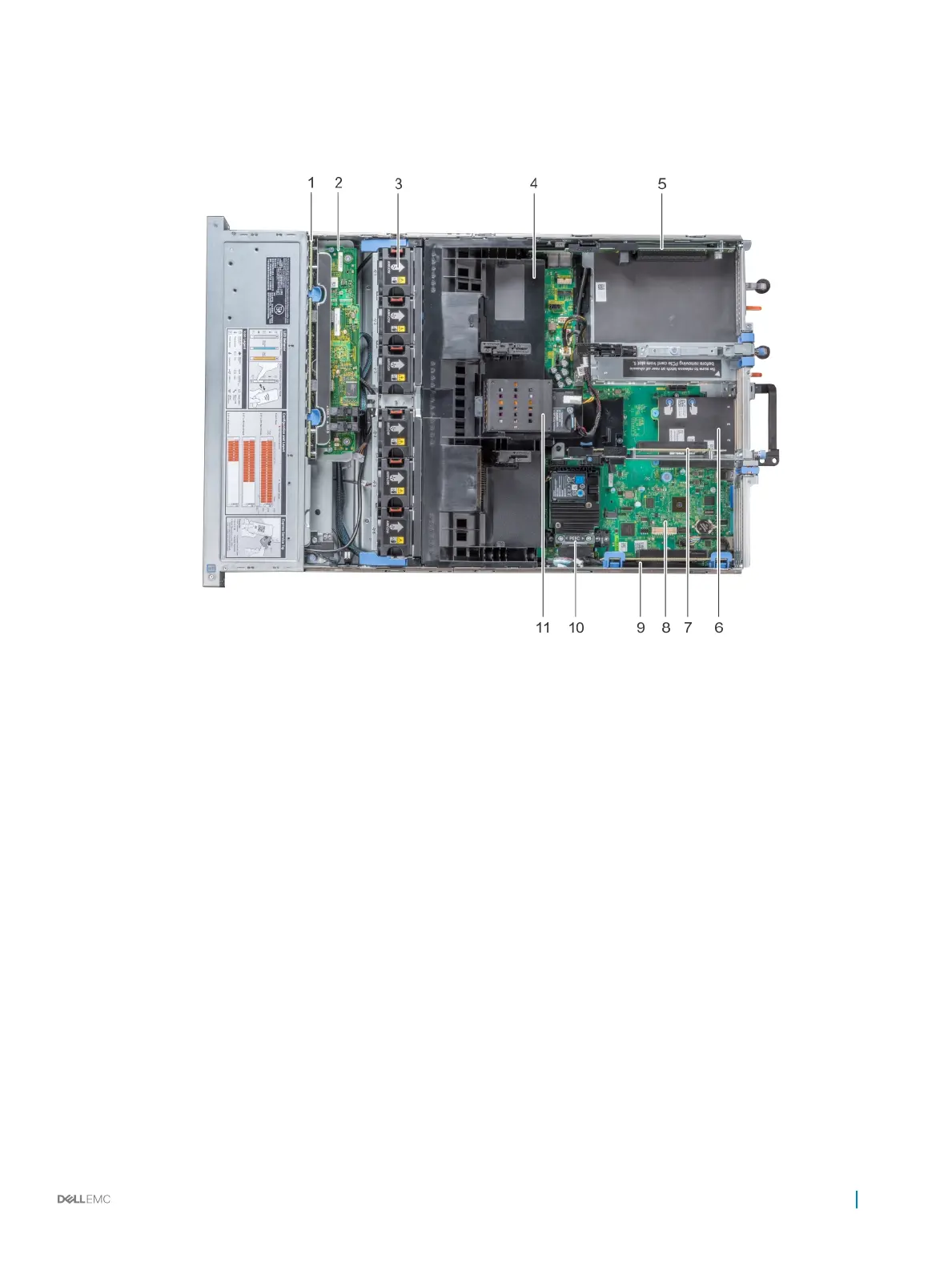

Figure 23. Inside the system – NVDIMM-N battery
1
drive backplane 2 backplane expander card
3 cooling fan (6) in the cooling fan assembly 4 air shroud
5 expansion card riser 3 6 network daughter card
7 expansion card riser 2 8 system board
9 expansion card riser 1 10 integrated storage controller card
11 NVDIMM-N battery
Installing and removing system components 73
