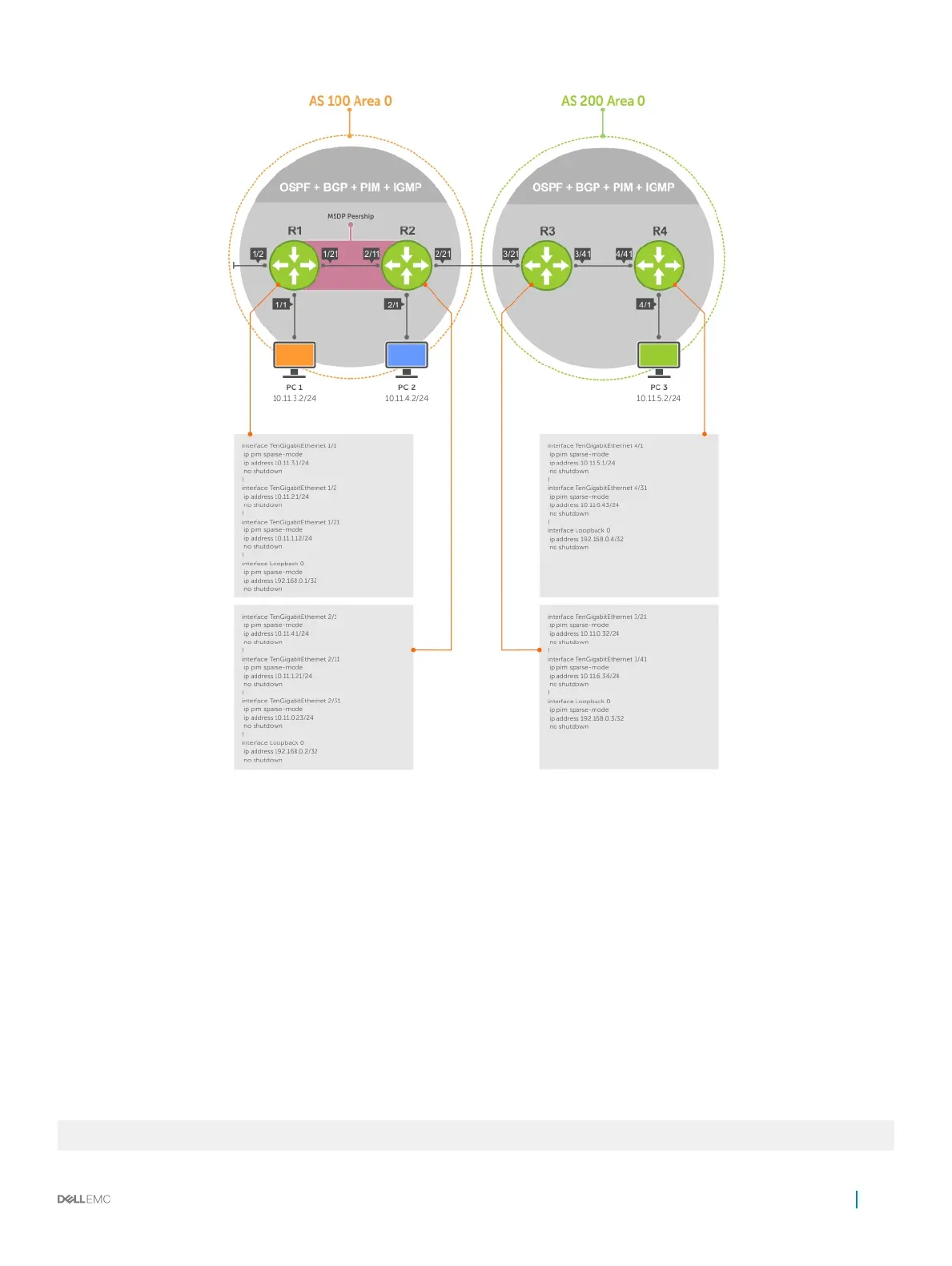

Figure 87. Conguring MSDP

Enable MSDP

Enable MSDP by peering RPs in dierent administrative domains.

1 Enable MSDP.

CONFIGURATION mode

ip multicast-msdp

2 Peer PIM systems in dierent administrative domains.

CONFIGURATION mode

ip msdp peer connect-source

Examples of Conguring and Viewing MSDP

R3(conf)#ip multicast-msdp

R3(conf)#ip msdp peer 192.168.0.1 connect-source Loopback 0

Multicast Source Discovery Protocol (MSDP)

561
