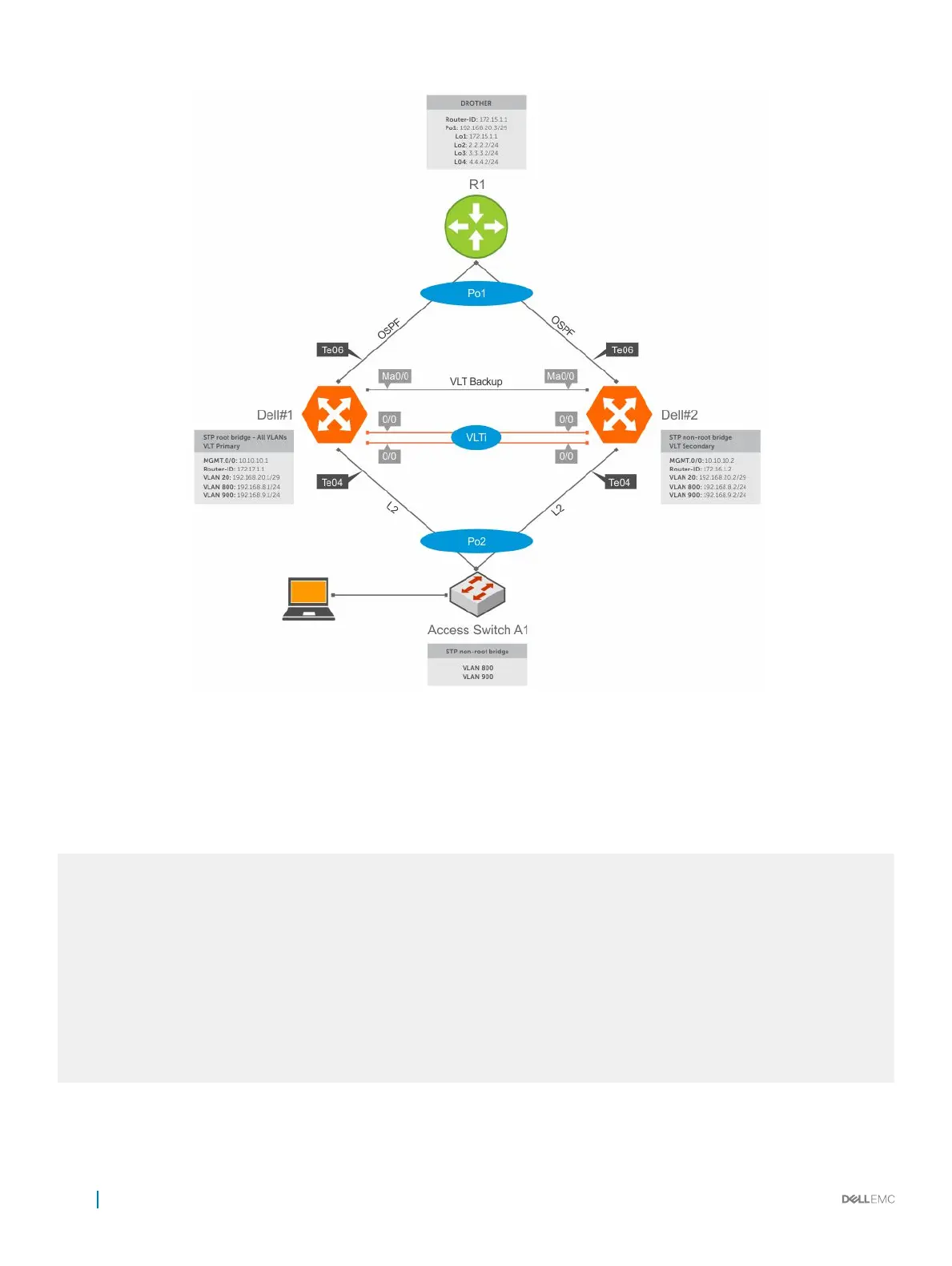

Figure 143. Peer Routing Conguration Example
Dell-1 Switch Conguration
In the following output, RSTP is enabled with a bridge priority of 0. This ensures that Dell-1 becomes the root bridge.
Dell#1#show run | find protocol
protocol spanning-tree pvst
no disable
vlan 1,20,800,900 bridge-priority 0
The following output shows the existing VLANs.
Dell#1#show vlan | find NUM
NUM Status Description Q Ports
* 1 Active U Po10 (Te 0/0-1)
U Te 0/4,47
20 Active OSPF PEERING VLAN U Po1 (Te 0/6)
V Po10 (Te 0/0-1)
800 Active Client-VLAN V Po10 (Te 0/0-1)
900 Active Client-VLAN-2 V Po10 (Te 0/0-1)
