Example of Conguring Another Monitoring Session with a Previously Used Destination Port
Dell(conf)#monitor session 300
Dell(conf-mon-sess-300)#source TenGig 1/17 destination TenGig 1/4 direction tx
% Error: Exceeding max MG ports for this MD port pipe.
Dell(conf-mon-sess-300)#
Dell(conf-mon-sess-300)#source TenGig 1/17 destination TenGig 1/1 direction tx
Dell(conf-mon-sess-300)#do show mon session
SessID Source Destination Dir Mode Source IP Dest IP DSCP TTL
Drop Rate Gre-Protocol FcMonitor
------ ------ ----------- --- ---- --------- -------- ---- ---
---- ---- ----------- ---------
0 Te 1/13 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
10 Te 1/14 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
20 Te 1/15 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
30 Te 1/16 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
300 Te 1/17 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
Dell#
Example of Viewing a Monitoring Session
In the example below, 0/25 and 0/26 belong to Port-pipe 1. This port-pipe has the same restriction of only four destination ports, new or
used.
Dell(conf-mon-sess-300)#do show mon session
SessID Source Destination Dir Mode Source IP Dest IP DSCP TTL
Drop Rate Gre-Protocol FcMonitor
------ ------ ----------- --- ---- --------- -------- ---- ---
---- ---- ----------- ---------
0 Te 1/13 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
10 Te 1/14 Te 1/2 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
20 Te 1/15 Te 1/3 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
30 Te 1/16 Te 1/37 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
100 Te 1/25 Te 1/38 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
110 Te 1/26 Te 1/39 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
300 Te 1/17 Te 1/1 rx interface 0.0.0.0 0.0.0.0 0 0
No N/A N/A yes
Dell#

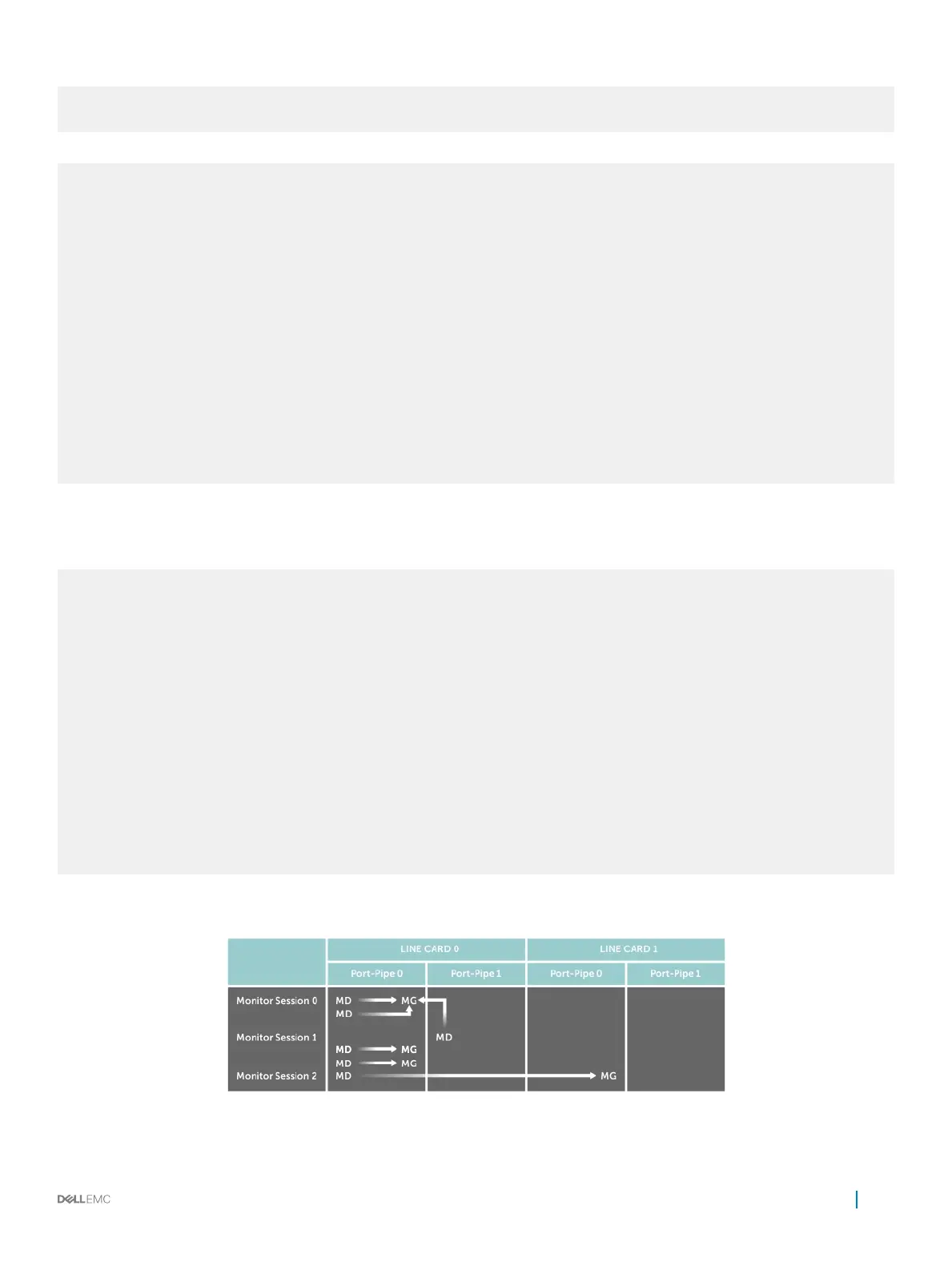

Given these parameters, the following illustration shows the possible port monitoring congurations.
Figure 101. Port Monitoring Congurations
